LaunchTech USA X-431 ADAS Mobile Plus

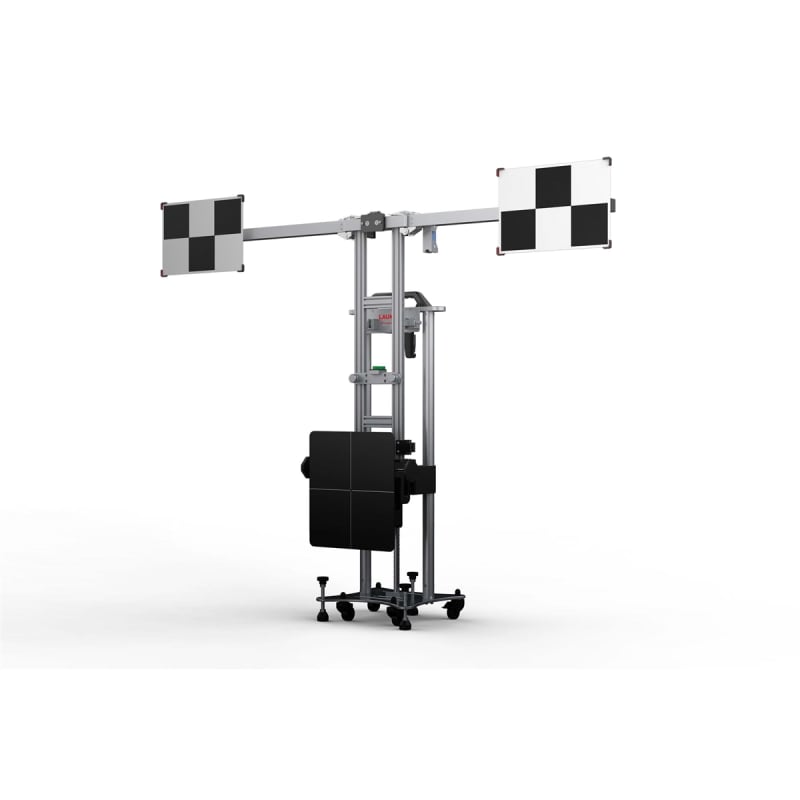

The LaunchTech USA X-431 ADAS Mobile Plus LDW Standard Package is designed for professional static calibration of forward-facing cameras and Lane Departure Warning systems. It combines the lightweight Mobile Plus frame with laser positioning accessories and an extensive selection of LDW calibration targets, giving automotive glass companies, collision centers, dealerships and mobile technicians a more complete starting package than the basic frame-only configuration.

The folding beam and compact mobile base make the system practical for workshops with limited floor space and for technicians who transport calibration equipment between service locations. The main unit weighs approximately 50 pounds, and Launch states that one adult technician can operate the frame and complete the positioning workflow.

When used with a compatible Launch professional diagnostic tablet and current ADAS software, the system provides guided, vehicle-specific calibration instructions. Laser measurement, fine height control, parallel alignment accessories and bubble-level adjustment help the technician establish the correct target position before beginning the calibration procedure.

• Foldable beam: Reduces the storage footprint and makes the frame easier to transport.
• Adjustable frame arms: Support fine centering and target positioning.
• Digital laser rangefinder: Assists with precise distance and height measurement.
• Five-line laser: Provides visible alignment references for the positioning workflow.
• Built-in spirit level: Allows the technician to monitor frame level during setup.
• Base micro-adjustment: Three precision adjustment points help establish horizontal alignment.
• Four swivel casters: Improve mobility and positioning around the calibration area.
• Locking and leveling support: Helps stabilize the frame once it is positioned.
• Magnetic target mounting: Holds compatible target panels securely during calibration.

Launch's current U.S. ADAS catalog shows the following target references in the Mobile Plus Standard Configuration:

Target references and package contents are subject to change. Confirm the current Launch packing list before processing the order.

Forward-facing camera calibration may be required after windshield replacement, camera removal or replacement, collision repairs, structural work, suspension service, wheel alignment or other repairs that change the vehicle's geometry or camera reference.

The included LDW targets provide the visual patterns required by supported vehicle manufacturers during static camera calibration. The technician selects the correct target and follows the procedure shown on the compatible Launch diagnostic tablet.

The Standard Package focuses on Lane Departure Warning and forward-camera calibration. Launch also offers optional targets and accessories for additional ADAS systems, including:

LaunchTech USA identifies the following professional X-431 platforms for use with the ADAS Mobile Plus:

• Launch X-431 Throttle V
• Launch X-431 Torque Link
• Launch X-431 Turbo III

Compatibility and software requirements can change. Verify the tablet model, software subscription and vehicle coverage before ordering.

Launch states that the platform supports more than 95% of global vehicle models equipped with ADAS systems when used with the correct software and targets. Coverage examples include:

Launch's U.S. ADAS catalog recommends an approximately 5-meter by 9-meter calibration area with the vehicle positioned on an even, level floor. The exact required distance varies by vehicle and calibration procedure.

The work area should be free of objects and visual interference that could affect camera recognition of the target. Follow the vehicle manufacturer's preparation requirements for tire pressure, fuel level, ride height, cargo, steering position and other conditions before calibration.
