IWA500 Alignment Frame, Set of 4
Rim Clamps, Tablet, & Storage Cabinet

Part Number: IWA500ACT

The Autel MaxiAlign IWA500 is a purpose-built wheel alignment system engineered to do one thing extremely well: deliver fast, precise, and repeatable alignments. With broad vehicle coverage supporting U.S., Asian, and European models from 1975 to current production, its advanced guided workflow begins with server-based vehicle identification, followed by a comprehensive all-systems pre-scan, undercarriage inspection, and tire tread depth and pressure analysis to ensure optimal alignment conditions.

Using a mobile six-camera frame, the IWA500 performs standard alignment measurements (rolling diameter, symmetry values) as well as advanced, precise checks such as bump steer, raised-vehicle analysis, wheel-off adjustment, and MaxiToe—Autel’s innovative toe-adjustment feature that ensures a perfectly centered steering wheel without a holder. Fully portable from bay to bay, the IWA500 reduces setup and alignment time, delivers real-time feedback for rapid corrections, and streamlines verification and reporting, making it a high-value, high-throughput alignment solution for professional shops.

Free Virtual Training Included with an Autel Alignment Specialist
Standard alignment system focused on speed, precision, and repeatability
Broad vehicle coverage: U.S., Asian, and European models from 1975–current
Guided workflow with server-based vehicle identification and OEM alignment specifications
Includes 10.1-inch touchscreen wireless MaxiAlign IWA500 tablet with Bluetooth MaxiVCI V200
Mobile six-camera system delivers real-time, highly accurate measurements. Bay-to-bay portability maximizes shop flexibility and uptime. Faster setups and adjustments with real-time feedback
Core alignment measurements, including rolling diameter and symmetry values and Advanced measurements such as bump steer, raised vehicle checks, and wheel-off adjustment
MaxiToe technology centers the steering wheel without a holder. Supports SAS calibration and other OEM-required post-alignment tasks
Highly detailed, validated alignment reports that are easy to save, print, or share digitally
Includes four rim clamps with positioning targets and essential accessories: two wheel chocks, brake pedal depressor, steering wheel holder stand tool, equipment cover, tablet holder, and AC and 12/24 V power cords One year of tablet software updates and Limited Warranty coverage

	IWA500 User Manual	Download
	IWA500 Quick Guide For Disassembly & Assembly	Download
	IWA500 Main Control Tablet Operation Quick Guide	Download
	IWA500 Flyer	Download

Simplified & Highly Efficient Wheel Alignment

The IWA500 minimizes unnecessary workflow steps, from vehicle identification through adjustment and final measurement. This enables technicians to complete more alignments per day with greater consistency and confidence, while ensuring every repair is performed correctly.

Comprehensive Alignment
& Measurement Data

The IWA500 provides precise measurements for camber, caster, and toe, paired with enhanced visibility of thrust angle, delivering a complete, professional-level vehicle assessment.

Automated Vehicle ID
& Smart Setup

Auto VID (Vehicle Identification) instantly identifies the vehicle and loads the exact specifications, while graphical setup guidance reduces manual entry and standardizes alignment quality across different technicians.

Guided & Intuitive Operation
For Every Technician

Step-by-step graphical guidance walks technicians through each phase of the alignment process, from setup to final verification. Real-time prompts help prevent errors, shorten the learning curve, and increase throughput—enabling shops to maximize productivity and revenue. Integrated into this guided workflow is MaxiToe, Autel’s innovative toe-adjustment feature, which ensures a perfectly centered steering wheel without a steering wheel holder, further simplifying the alignment process and improving workflow consistency.

Industry-Leading
Alignment Accuracy

The IWA500 delivers repeatable accuracy at an entry-level cost. Its six high-definition, self-calibrating 3D cameras capture measurements with 0.02° accuracy, enabling first-time-correct, OE-spec alignments without the manual steps required by traditional systems.Technicians gain dependable performance, reduced downtime, and consistent results on every vehicle.

Auto-tracking Crossbar Height

Automated crossbar positioning sets the optimal measurement height, follows the vehicle as the lift moves, and maintains precise target alignment throughout the process. This reduces setup time, prevents camera obstruction, and delivers consistent accuracy on every job.

Specialized Adjustments
for Real-World Challenges

Wheel-Off Mode for improved access on tight suspensions
Raised-Vehicle Adjustment for limited-clearance designs
Steering Angle Sensor Relearn to properly complete alignments on modern ADAS-equipped and electronic steering vehicles
These specialized modes help technicians resolve difficult adjustments quickly, safely, and accurately

Comprehensive Validation,
Proof, and Reporting

The IWA500 generates detailed pre- and post-alignment reports, and OE-spec verification. These reports document the repair, support insurance and audit requirements, and instill confidence in vehicle owners.

Industry-Leading Vehicle Coverage

The extensive, continuously updated Autel vehicle database ensures the IWA500 uses the latest OE-sourced alignment specifications across domestic, European, Asian, and emerging EV platforms. This guarantees accurate alignments on nearly any vehicle that enters the shop, and future-proofs your bay as new models arrive.

Alignment Accessories

Improve Shop Efficiency

To maximize the performance of the Autel IWA500, we recommend a selection of accessories designed to streamline wheel alignment across a wide range of vehicle. The Camera Calibration Bar, Ride Height Target, Tire Clamps, Calibration Bar R and T Mounts, and Hand-Held Inclinometer work together to enhance accuracy, simplify setup, and reduce alignment time.

Adding these accessories helps technicians complete alignments more efficiently while maintaining precise alignment standards.

500-10 Camera Calibration Bar
500-20 Ride Height Target
500-17 Tire Clamps

500-12 Calibration Bar R and T Mounts
500-29 Hand-Held Inclinometer

SEARCH

SEARCH

Wheel Alignment Systems

Filters

Filters

Categories

Rotary R1080 | Baysaver 3D Wheel Alignment System

Rotary R5000HD | CTA Wheel Alignment System

Edge VISTAR 3-D Target Alignment System

Autel MAXISYS IA900WA Wheel Alignment + ADAS Calibration, with MSULTRA ADAS Tablet

Atlas Equipment TD 2.0 WIFI ALIGNER W/ PREMIUM PACKAGE

Rotary R1070 CCD Pro | Wheel Alignment System

Autel MAXISYS IA900WA Wheel Alignment + ADAS Calibration

CEMB CEMB DWA1100ADAS mobile wheel alignment capability and ADAS calibration

CEMB CEMB DWA1100 8-Sensor CCD Wheel Alignment System

Autel MaxiAlign IWA500ACT Intelligent Wheel Alignment Frame with Tablet

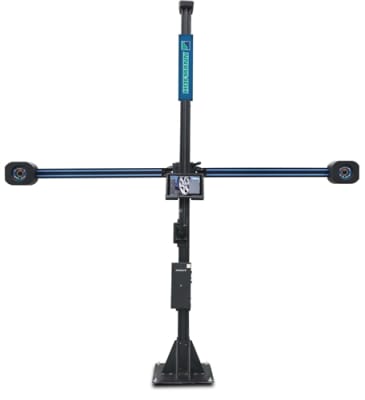

Hofmann geoliner® 609 Imaging Wheel Aligner
