Autel MaxiAlign
 |
IWA500 Alignment Frame, |

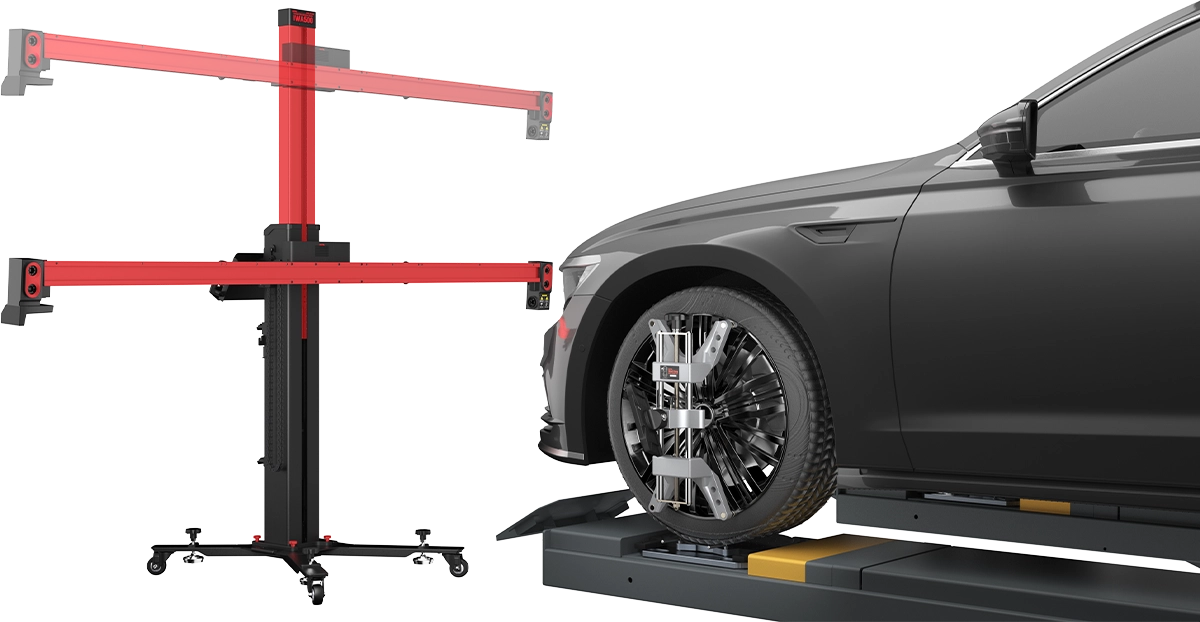

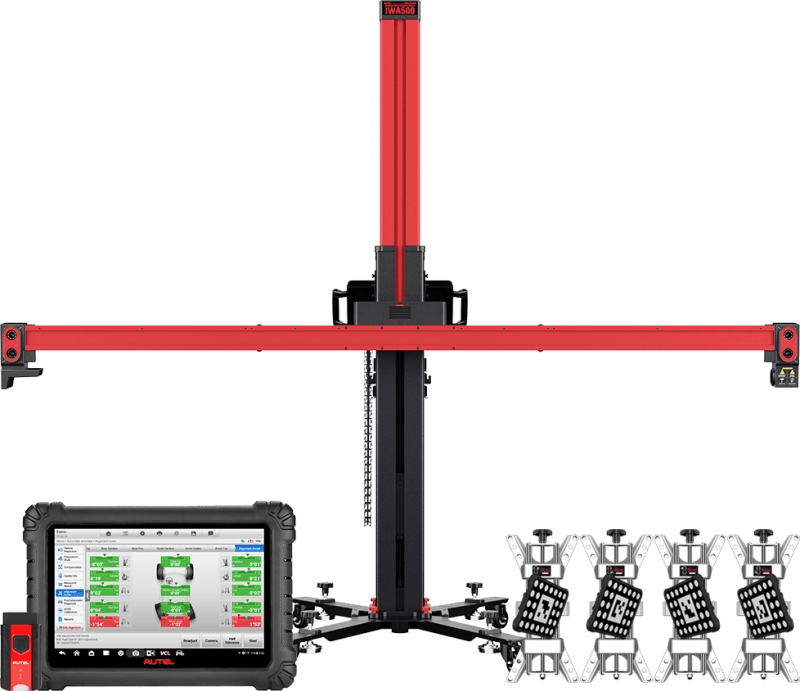

Using a mobile six-camera frame, the IWA500 performs standard alignment measurements (rolling diameter, symmetry values) as well as advanced, precise checks such as bump steer, raised-vehicle analysis, wheel-off adjustment, and MaxiToe—Autel’s innovative toe-adjustment feature that ensures a perfectly centered steering wheel without a holder. Fully portable from bay to bay, the IWA500 reduces setup and alignment time, delivers real-time feedback for rapid corrections, and streamlines verification and reporting, making it a high-value, high-throughput alignment solution for professional shops.
The IWA500 minimizes unnecessary workflow steps, from vehicle identification through adjustment and final measurement. This enables technicians to complete more alignments per day with greater consistency and confidence, while ensuring every repair is performed correctly.

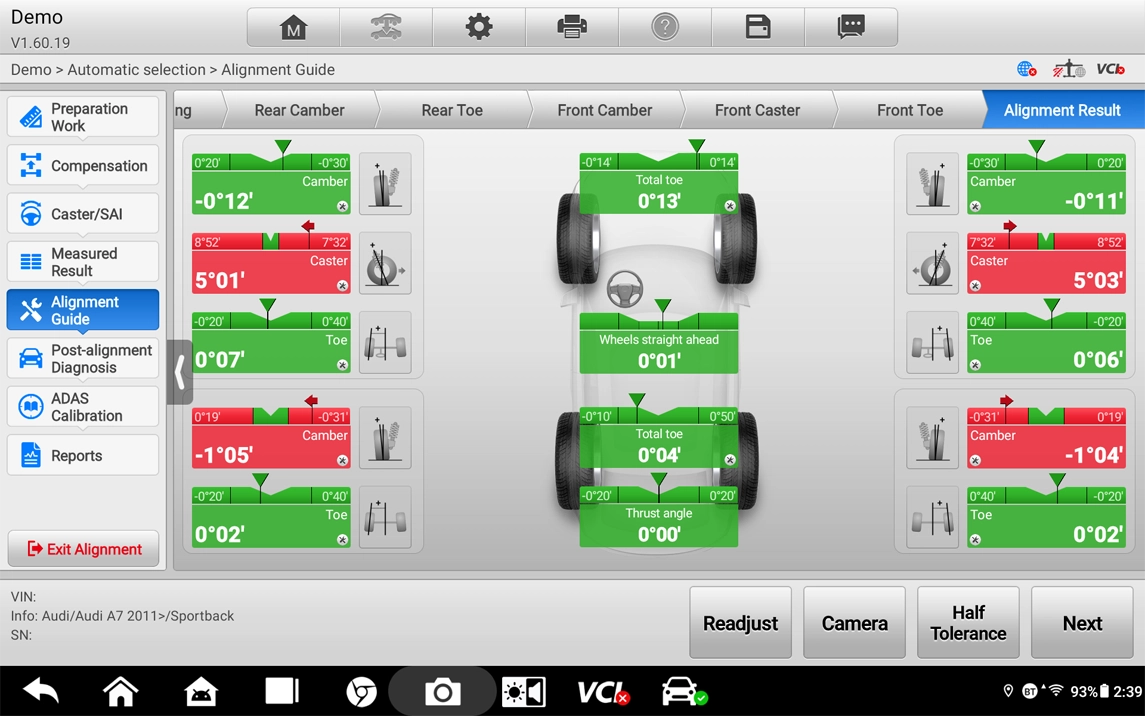

The IWA500 provides precise measurements for camber, caster, and toe, paired with enhanced visibility of thrust angle, delivering a complete, professional-level vehicle assessment.
Auto VID (Vehicle Identification) instantly identifies the vehicle and loads the exact specifications, while graphical setup guidance reduces manual entry and standardizes alignment quality across different technicians.

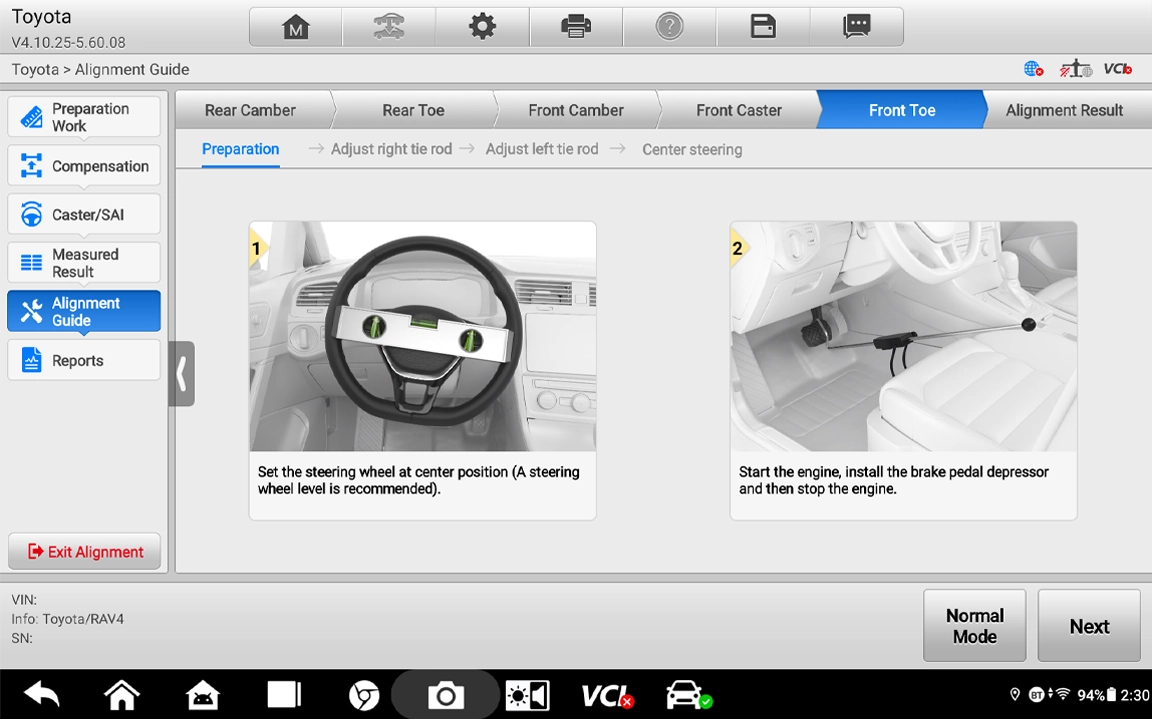

Step-by-step graphical guidance walks technicians through each phase of the alignment process, from setup to final verification. Real-time prompts help prevent errors, shorten the learning curve, and increase throughput—enabling shops to maximize productivity and revenue. Integrated into this guided workflow is MaxiToe, Autel’s innovative toe-adjustment feature, which ensures a perfectly centered steering wheel without a steering wheel holder, further simplifying the alignment process and improving workflow consistency.
The IWA500 delivers repeatable accuracy at an entry-level cost. Its six high-definition, self-calibrating 3D cameras capture measurements with 0.02° accuracy, enabling first-time-correct, OE-spec alignments without the manual steps required by traditional systems.Technicians gain dependable performance, reduced downtime, and consistent results on every vehicle.
Automated crossbar positioning sets the optimal measurement height, follows the vehicle as the lift moves, and maintains precise target alignment throughout the process. This reduces setup time, prevents camera obstruction, and delivers consistent accuracy on every job.

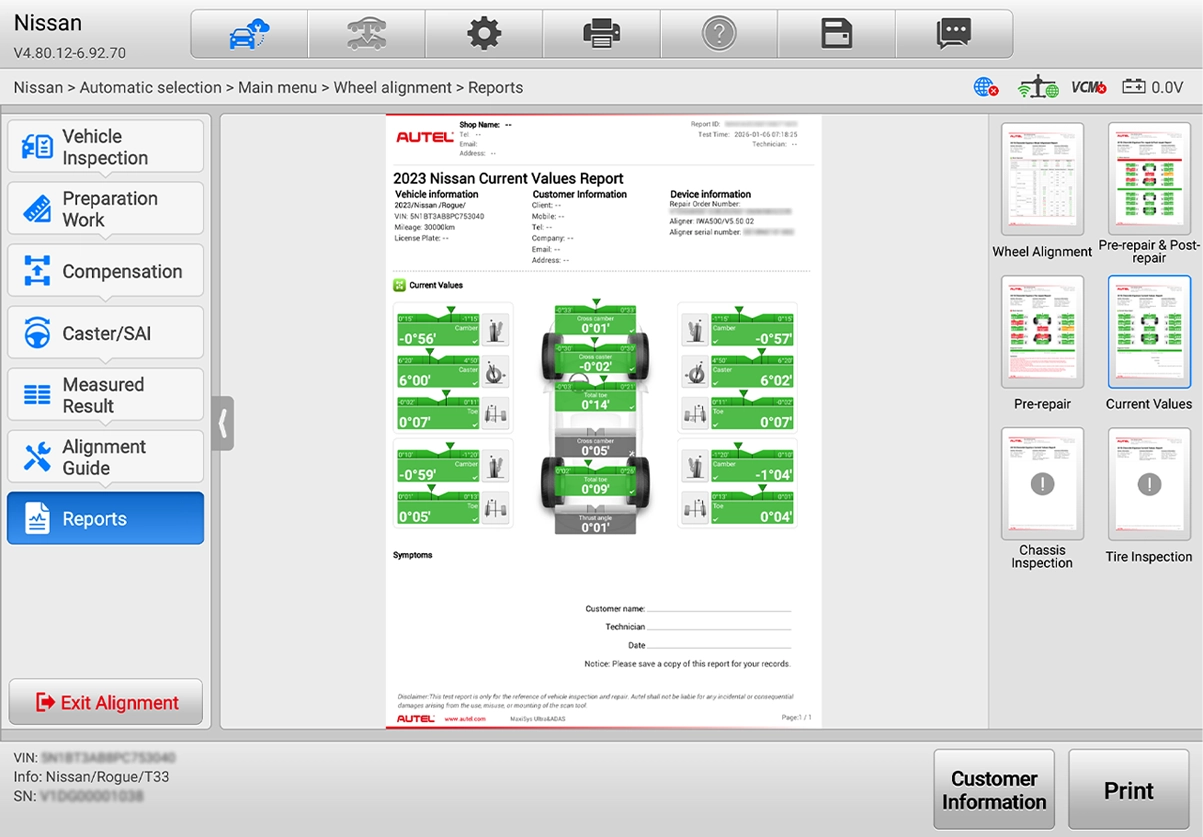

The IWA500 generates detailed pre- and post-alignment reports, and OE-spec verification. These reports document the repair, support insurance and audit requirements, and instill confidence in vehicle owners.
The extensive, continuously updated Autel vehicle database ensures the IWA500 uses the latest OE-sourced alignment specifications across domestic, European, Asian, and emerging EV platforms. This guarantees accurate alignments on nearly any vehicle that enters the shop, and future-proofs your bay as new models arrive.

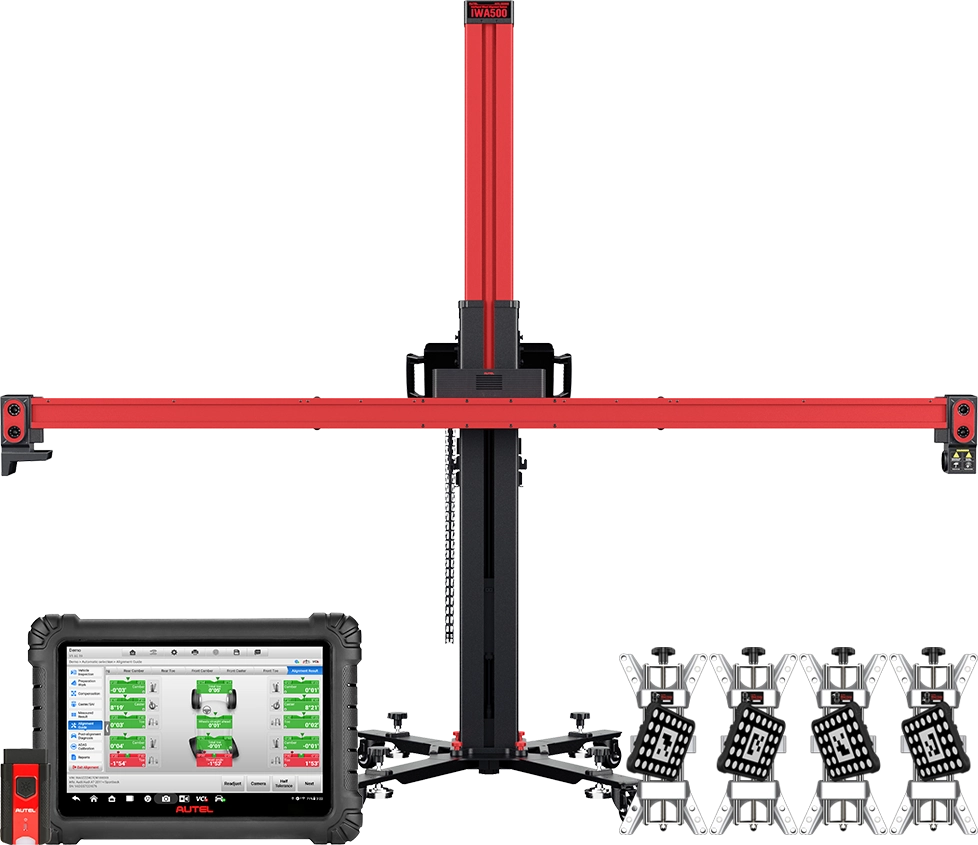

To maximize the performance of the Autel IWA500, we recommend a selection of accessories designed to streamline wheel alignment across a wide range of vehicle. The Camera Calibration Bar, Ride Height Target, Tire Clamps, Calibration Bar R and T Mounts, and Hand-Held Inclinometer work together to enhance accuracy, simplify setup, and reduce alignment time.
Adding these accessories helps technicians complete alignments more efficiently while maintaining precise alignment standards.
