Katool KT-X77 Heavy Duty Scissor Lift Car lift | 7,000 lbs Capacity
KATOOL Professional Vehicle Lifts
Drive-on access and a compact hydraulic lifting system for everyday shop service.

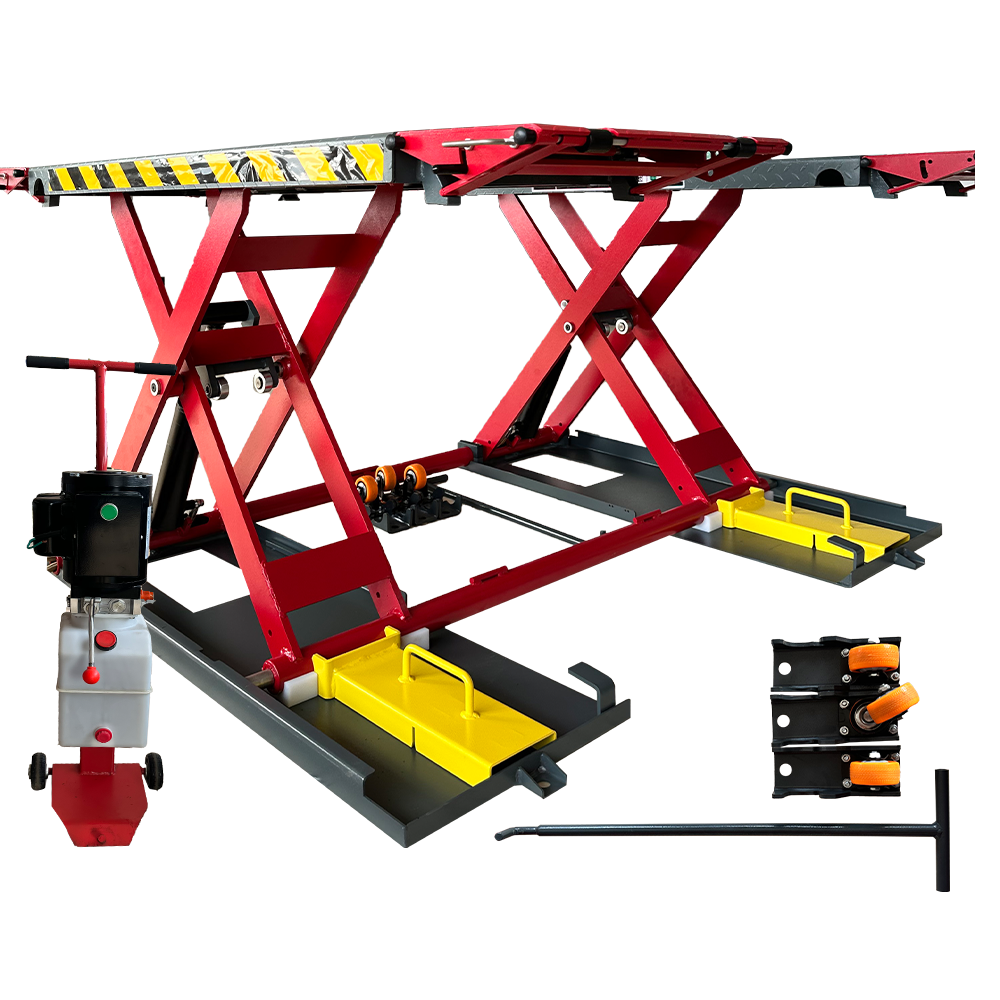

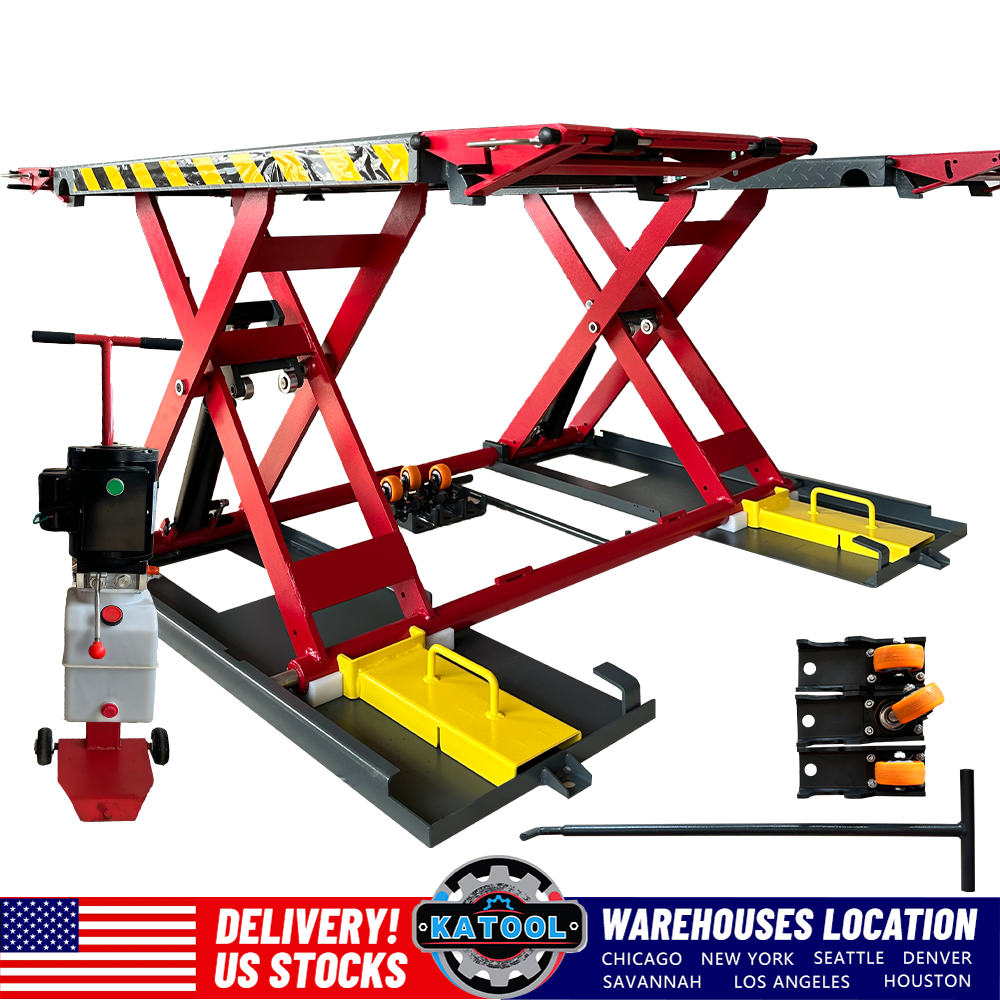

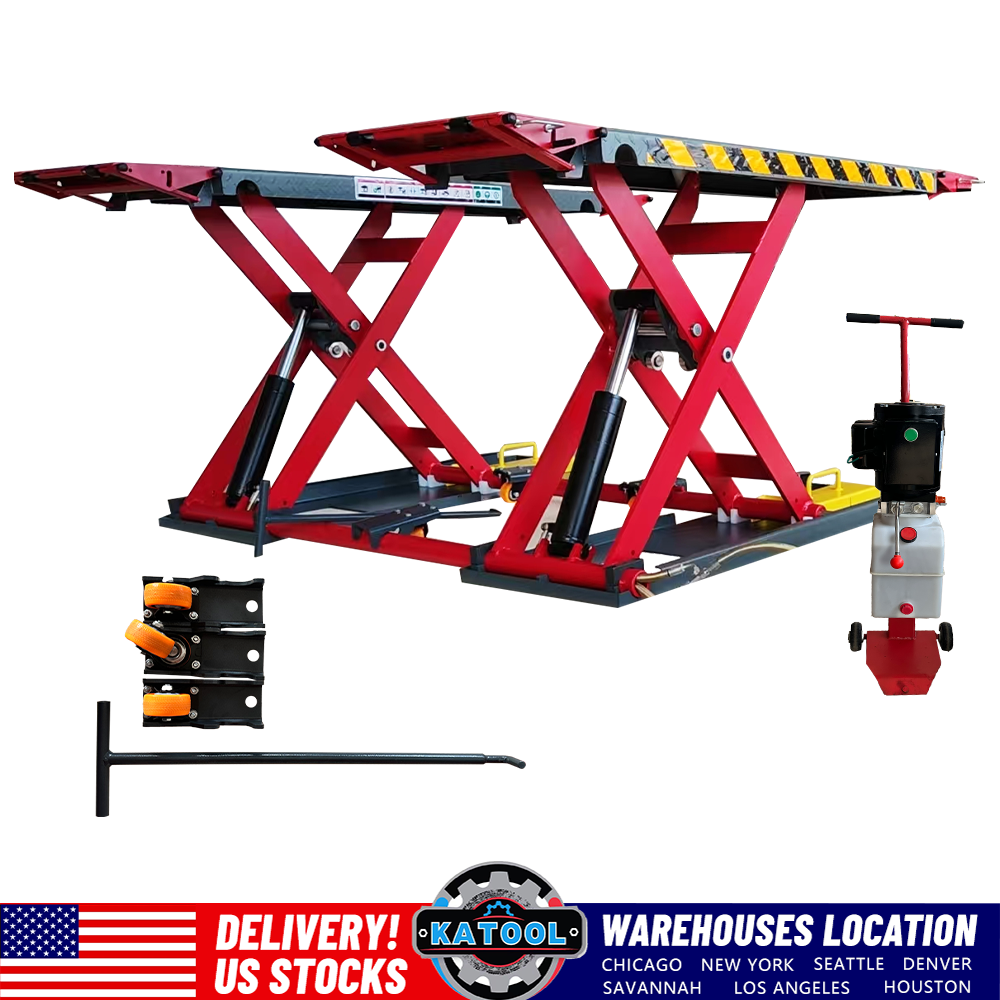

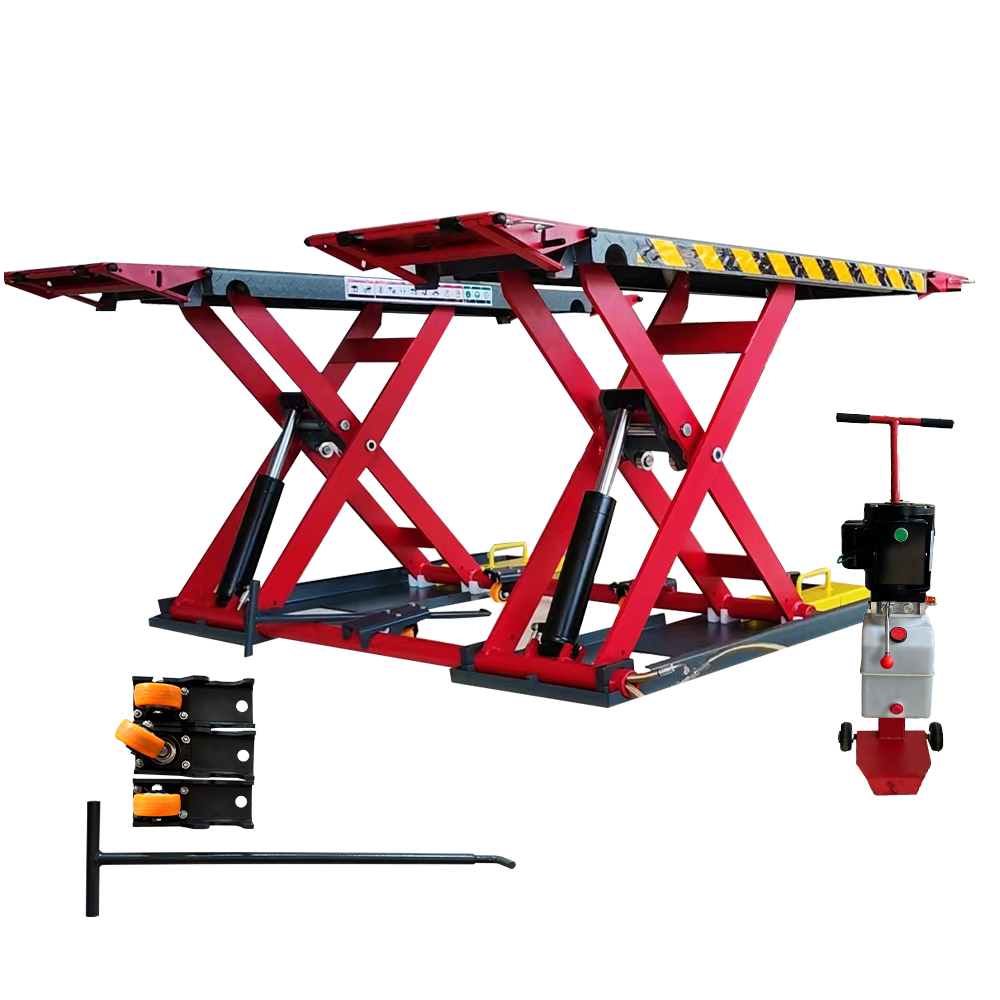

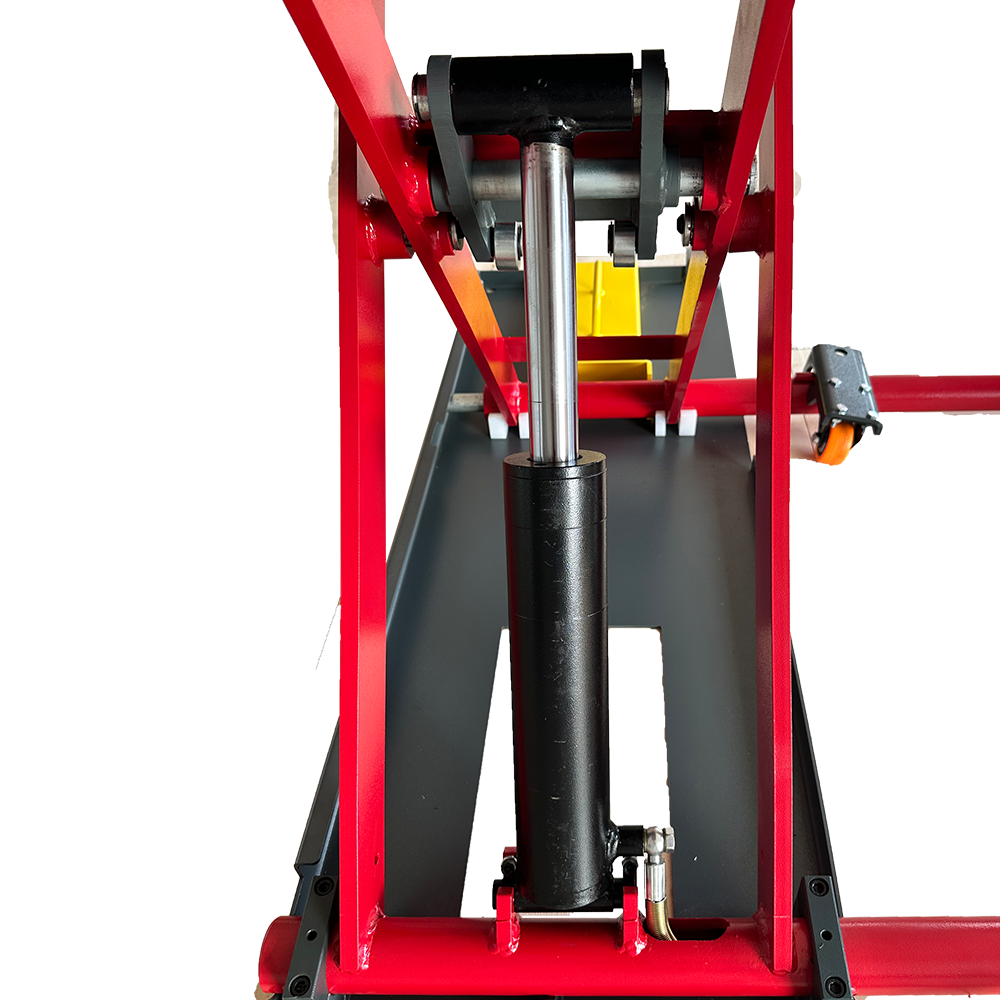

The KATOOL KT-X77 is a 7,000 lb capacity mid-rise scissor lift designed for vehicle maintenance in professional shops and equipped garages. Its drive-on platforms, hydraulic lifting system, and compact scissor structure provide access for brake service, tire and wheel work, oil changes, inspections, and general repair work on compatible vehicles.

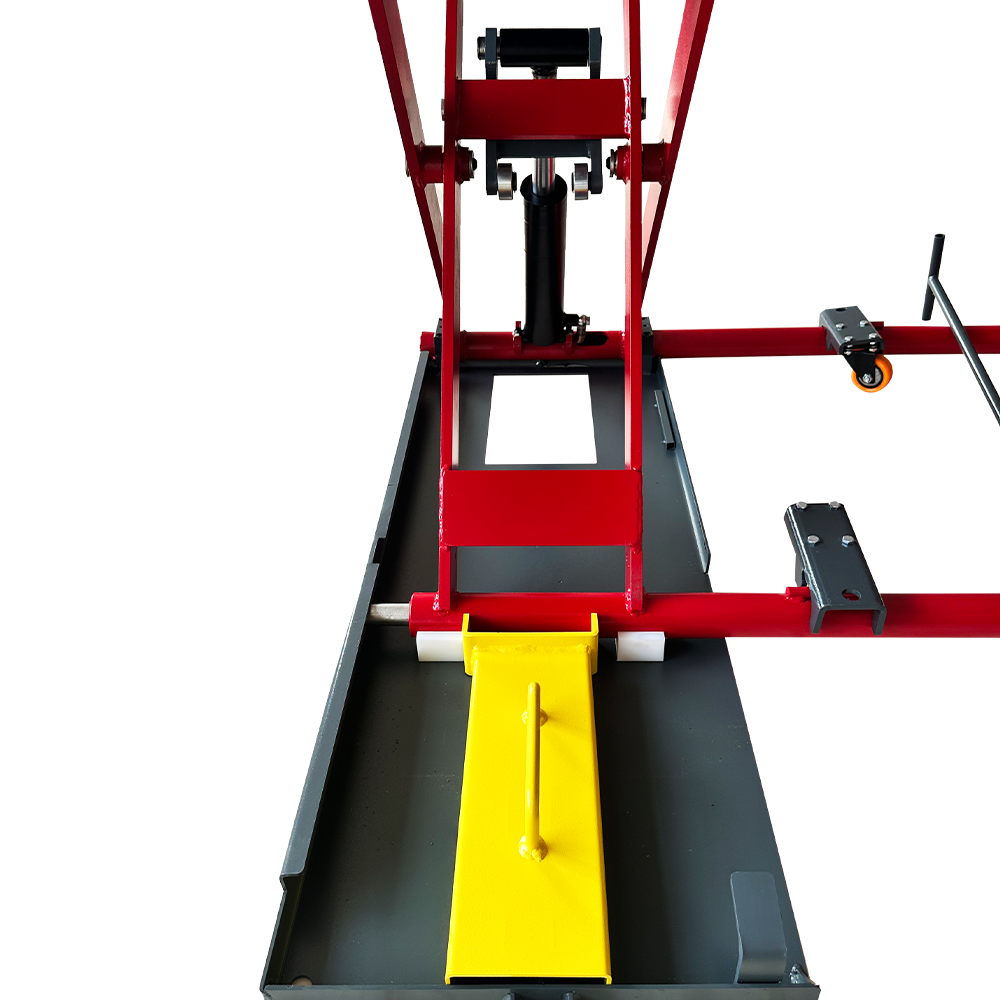

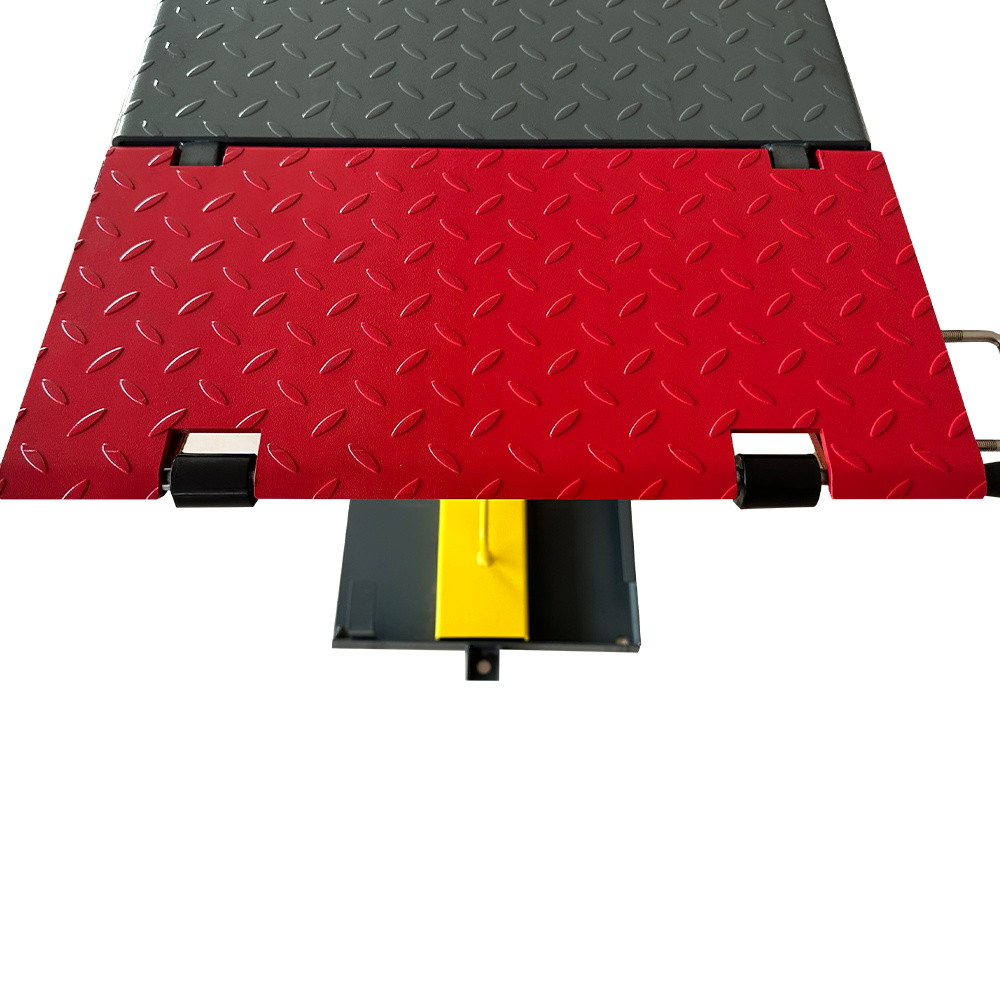

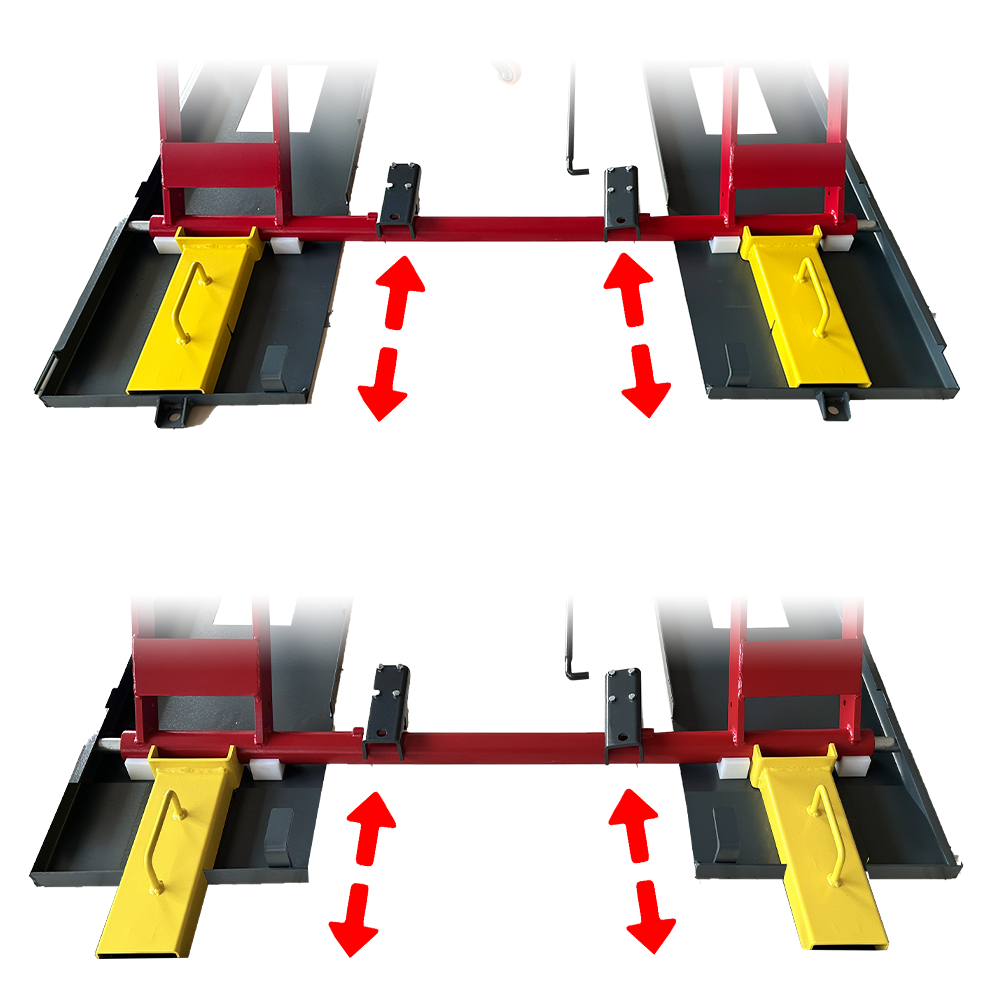

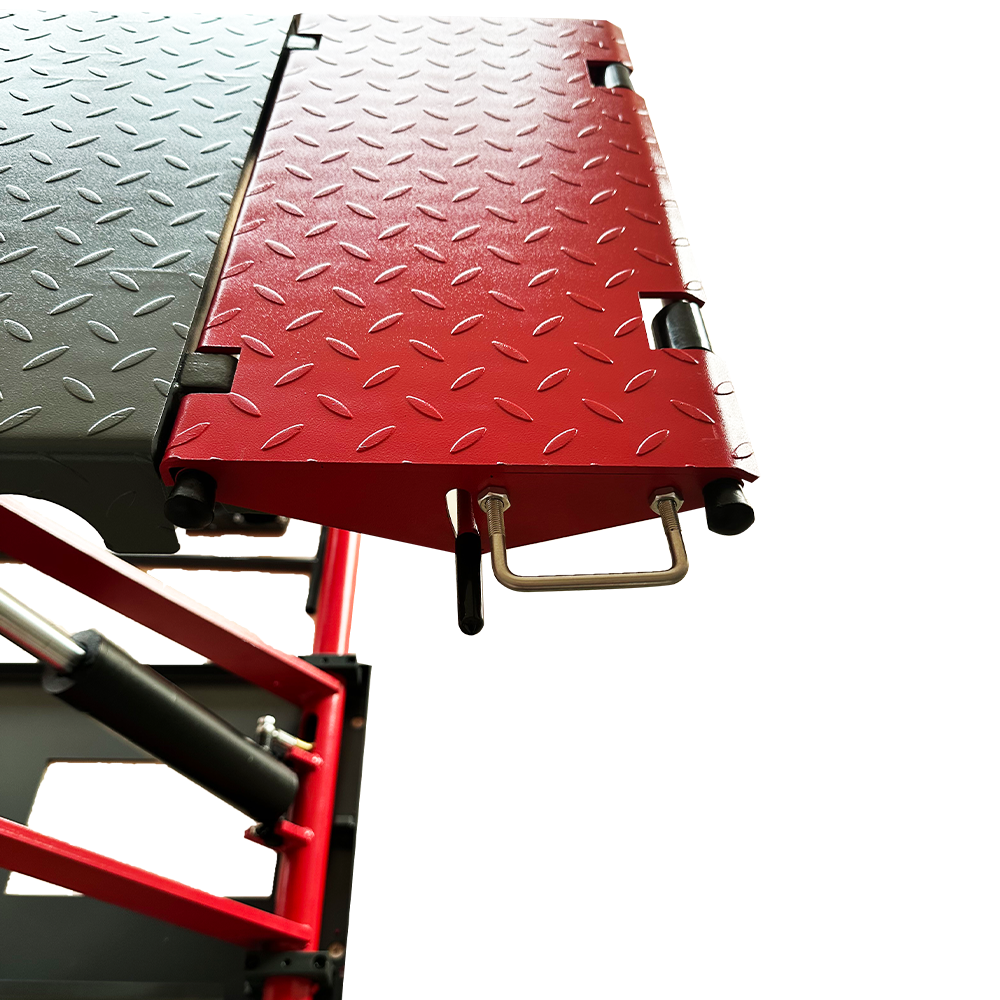

With a supplier-listed maximum lift height of approximately 39.37 inches and a lowered height of approximately 4.25 inches, the KT-X77 offers a practical working height without the overhead structure of a two-post lift. Two lifting platforms and extendable approach sections accommodate vehicles within the lift's rated size and weight limits.
| Model | KT-X77 |
|---|---|
| Lift type | Drive-on mid-rise scissor lift |
| Rated lifting capacity | 7,000 lb (supplier also lists 3,200 kg) |
| Maximum lifting height | 39.37 in (1,000 mm) |
| Lowered height | 4.25 in (110 mm), as listed |
| Lifting time | Approximately 30 seconds |
| Overall width | 72.83 in (1,850 mm) |
| Platform width | 20.87 in (530 mm), per platform as listed |
| Platform length | 74.8–81.5 in (1,900–2,070 mm) |
| Distance between platforms | 31.1 in (790 mm) |
| Air supply | 85–120 psi (6–8 bar) |
| Electrical supply | Supplier lists 110 V / 220 V AC, 60 Hz, single phase; confirm the voltage of the unit being ordered |
| Shipping weight | Lift: approximately 1,059 lb; pump unit: approximately 133 lb; total: approximately 1,192 lb |
| Safety system | Mechanical locking and safety release system, per supplier |
Confirm the supplied voltage, vehicle fit and pickup points, air connection, floor and installation requirements, and included components before ordering. Use and maintain the lift according to the manufacturer's current manual.
