Katool KT-TP1 Alignment Turntables

Product Overview

The KATOOL KT-TP1 alignment turntables support front-wheel movement during wheel alignment procedures. Positioned beneath the front wheels in a suitable alignment setup, the plates let the wheels turn as a technician checks steering angles and makes adjustments. The supplier describes them for use with four-post alignment lifts and 3D alignment systems.

The low-profile, heavy-duty design is intended for automotive repair shops, tire service centers, and dedicated alignment bays. Free wheel movement helps reduce tire scrub and resistance while steering through the measurement process.

Key Features

• Rotating front-wheel support: Allows the steering wheels to turn during alignment measurements and adjustments.
• Alignment-bay use: Designed for suitable four-post alignment lifts and 3D alignment equipment.

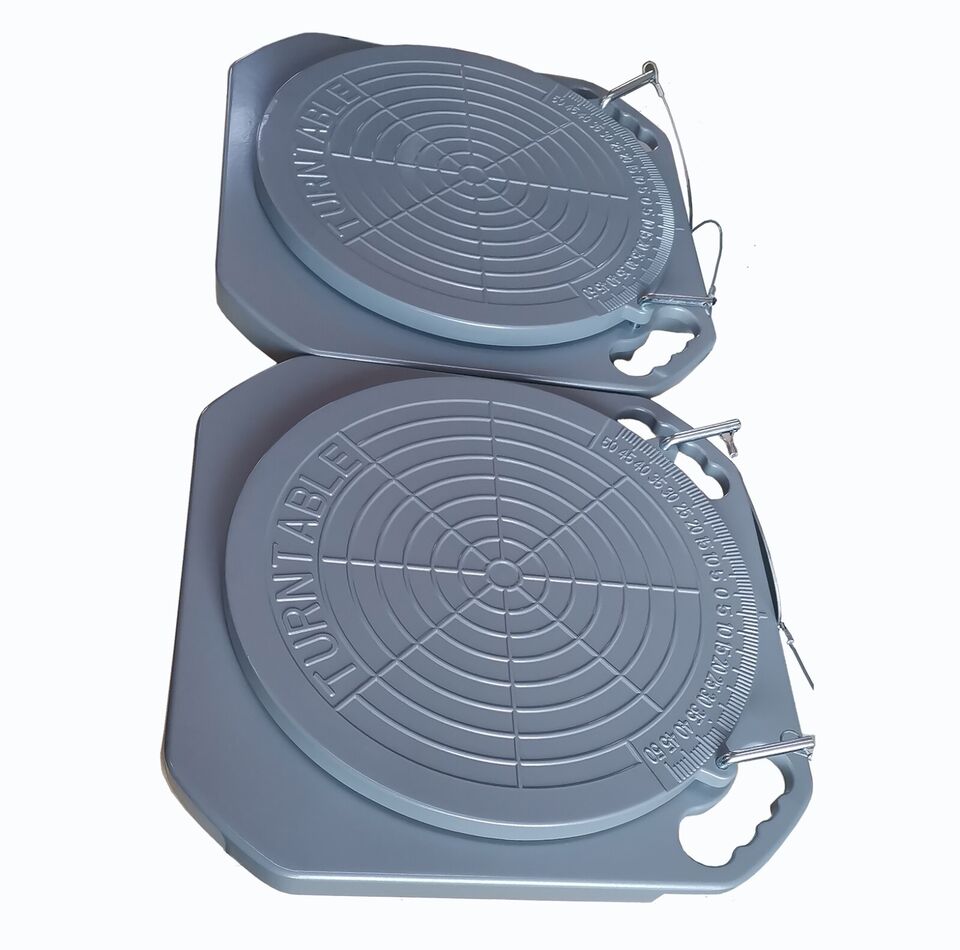

• Graduated top surface: Circular markings are visible in the product photos for visual reference during wheel movement.
• Low-profile construction: Intended to fit into a professional alignment workflow.
• Service applications: Useful during steering-angle checks and toe, camber, and caster alignment work when used with the appropriate alignment system.

Typical Alignment Workflow

1. Position the turntables on a level, compatible alignment surface according to the equipment instructions.
2. Place the vehicle's front wheels on the plates and set up the alignment measuring equipment.
3. Release the plates as instructed so the wheels can turn without binding while steering measurements and adjustments are made.
4. Remove the vehicle and secure the plates before moving or storing them.

Product Details

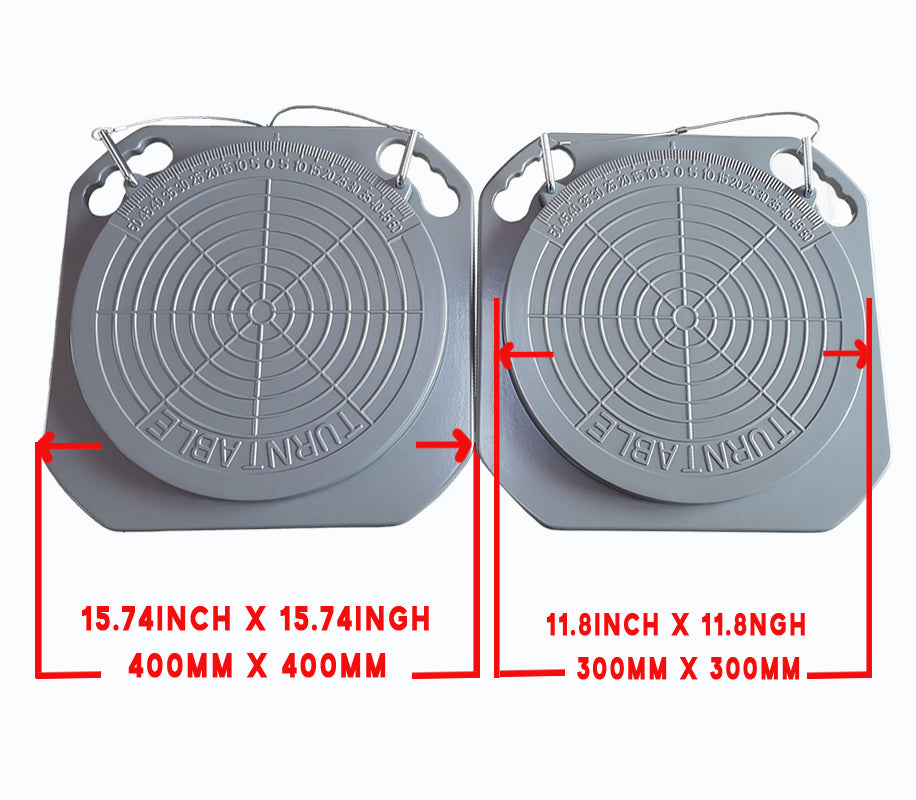

The first gallery graphic depicts 400 × 400 mm and 300 × 300 mm plates. Confirm the exact size, lift fit, load rating, and items included in the KT-TP1 package before ordering; the supplier description does not specify them.
