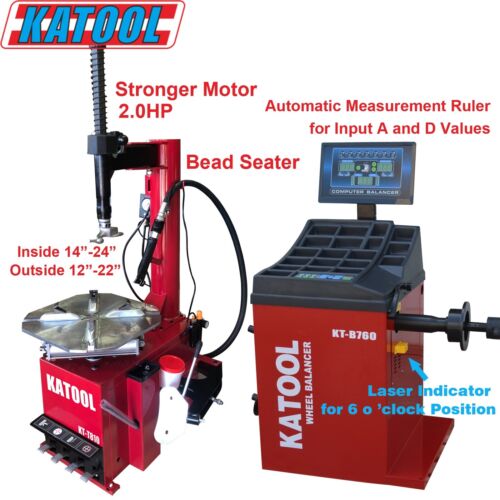

KATOOL KT-T810 Tire Changer & KT-B760 Wheel Balancer Combo

One Package for Two Tire-Service Jobs

The KT-T810 handles tire mounting and demounting; the KT-B760 measures wheel imbalance after the tire is mounted. Together, they outfit a shop bay for a complete wheel-service workflow. The combination suits tire dealers, automotive repair garages and fleet maintenance teams working on eligible passenger-car and light-truck wheel assemblies. Check the limits of both machines for each job: the balancer's maximum assembled wheel diameter and weight are distinct from the tire changer's limits.

KT-T810 Tire Changer Features

• Outside and inside clamping: 12–22 in outside clamp and 14–24 in inside clamp ranges.
• 2 HP drive: 1.5 kW motor and supplier-listed 6.8 rpm turntable speed.
• Bead service: Bead breaker and tire-changing head support mounting and demounting.
• Rim-conscious operation: The supplier describes protective covers and tools for alloy and performance rims; use appropriate techniques and accessories for the wheel being serviced.
• Foot-pedal control: Controls leave the operator's hands available to guide the wheel and tire.

KT-T810 Tire Changer Specifications

KT-B760 Wheel Balancer Features

The computerized KT-B760 measures imbalance on mounted wheel assemblies. The supplier gallery shows its display, measurement ruler and wheel-mounting accessories. A listed approximately seven-second measuring cycle and ±1 g balancing accuracy support routine tire-service work. Select the correct mounting hardware and enter or measure wheel dimensions according to the machine instructions.

KT-B760 Wheel Balancer Specifications

Rim diameter and assembled wheel diameter describe different measurements. Confirm the complete wheel's fit, center hole and weight before balancing.

Product Gallery and Component Details

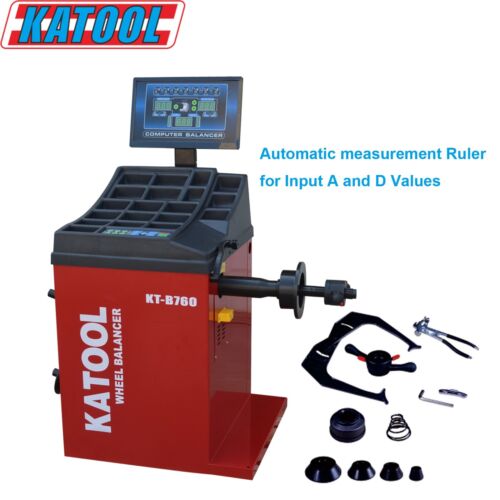

KT-B760 balancer and pictured accessories

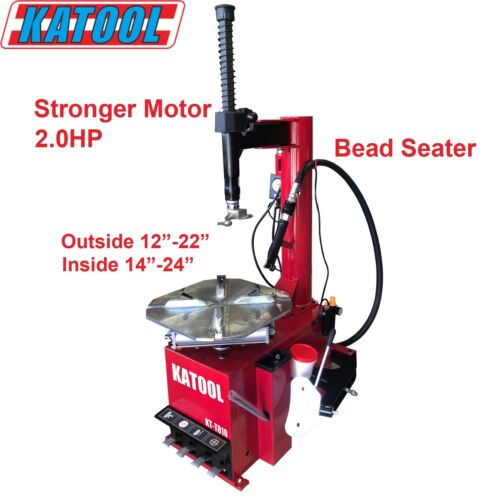

KT-T810 tire changer overview

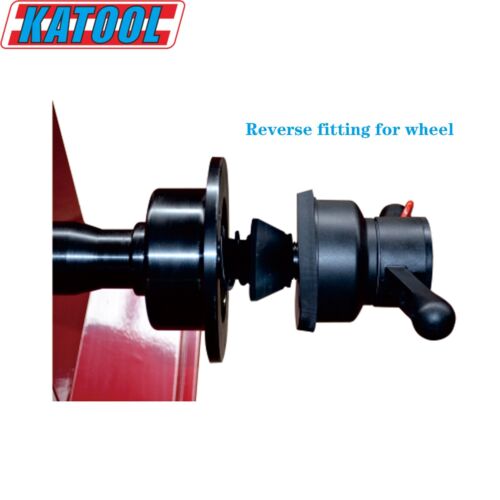

Balancer mounting shaft detail

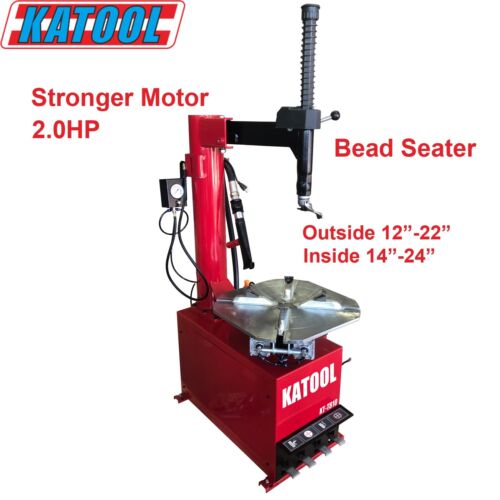

KT-T810 machine view

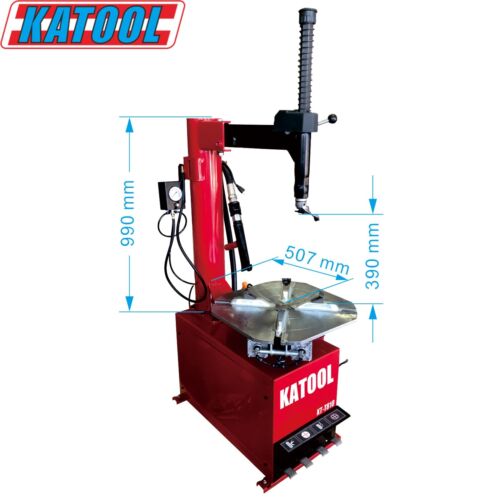

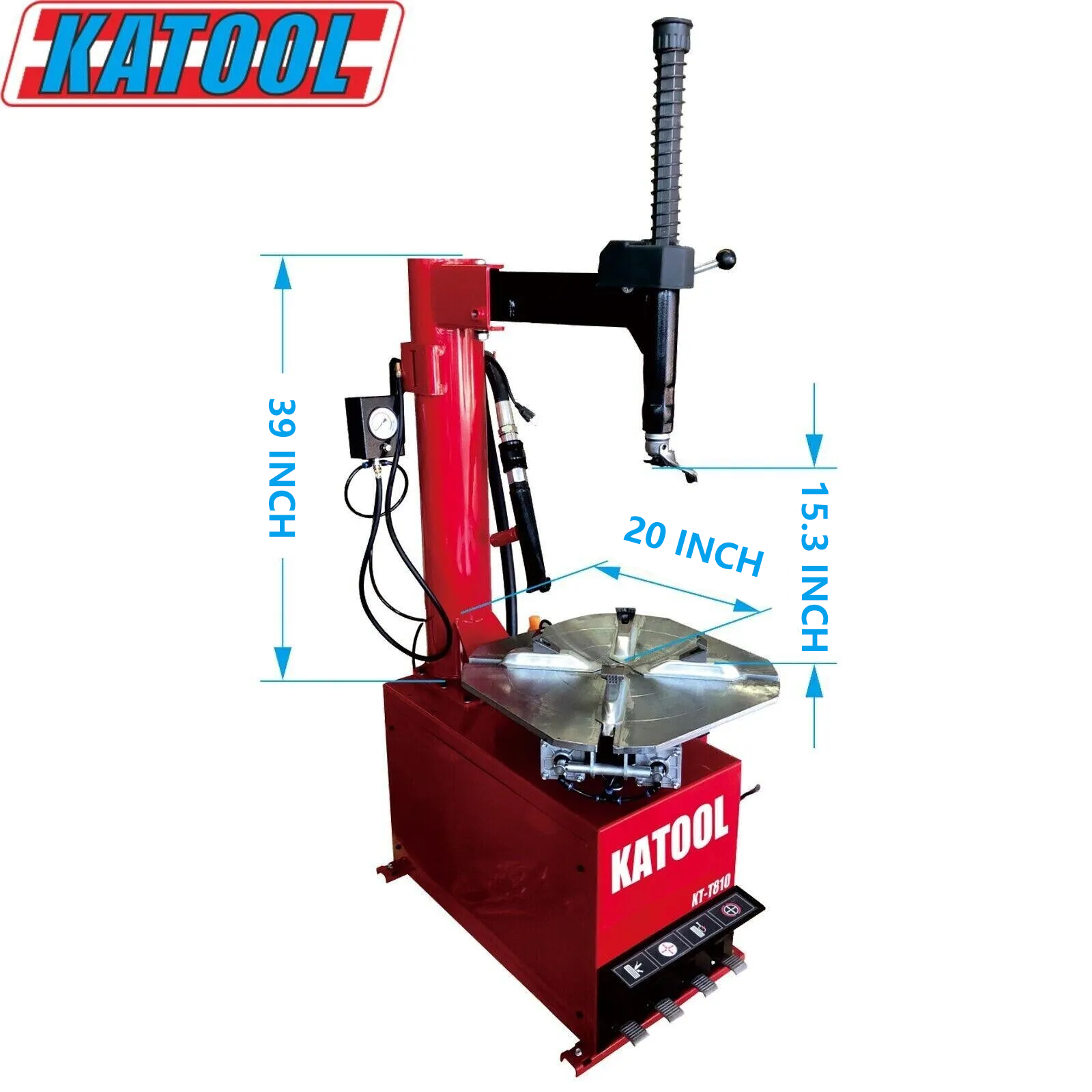

Tire changer dimensions

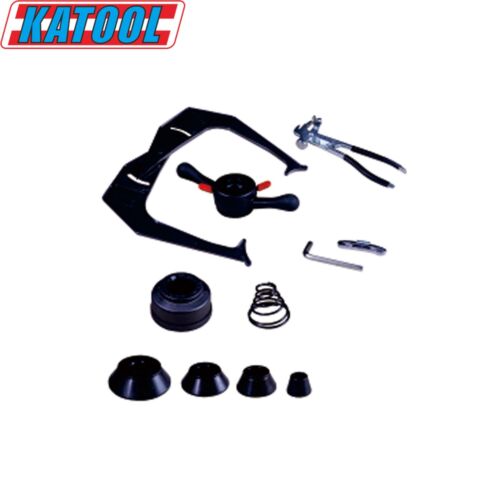

Balancer accessories pictured by supplier

Tire changer working dimensions

Motorcycle Adapter Package Option

The supplier offers a separate combo option with KT-MC1 and KT-MC2 motorcycle adapters. The base KT-T810 and KT-B760 combo does not automatically include that option. Select and describe the adapter package only if it is part of the product configuration you sell.

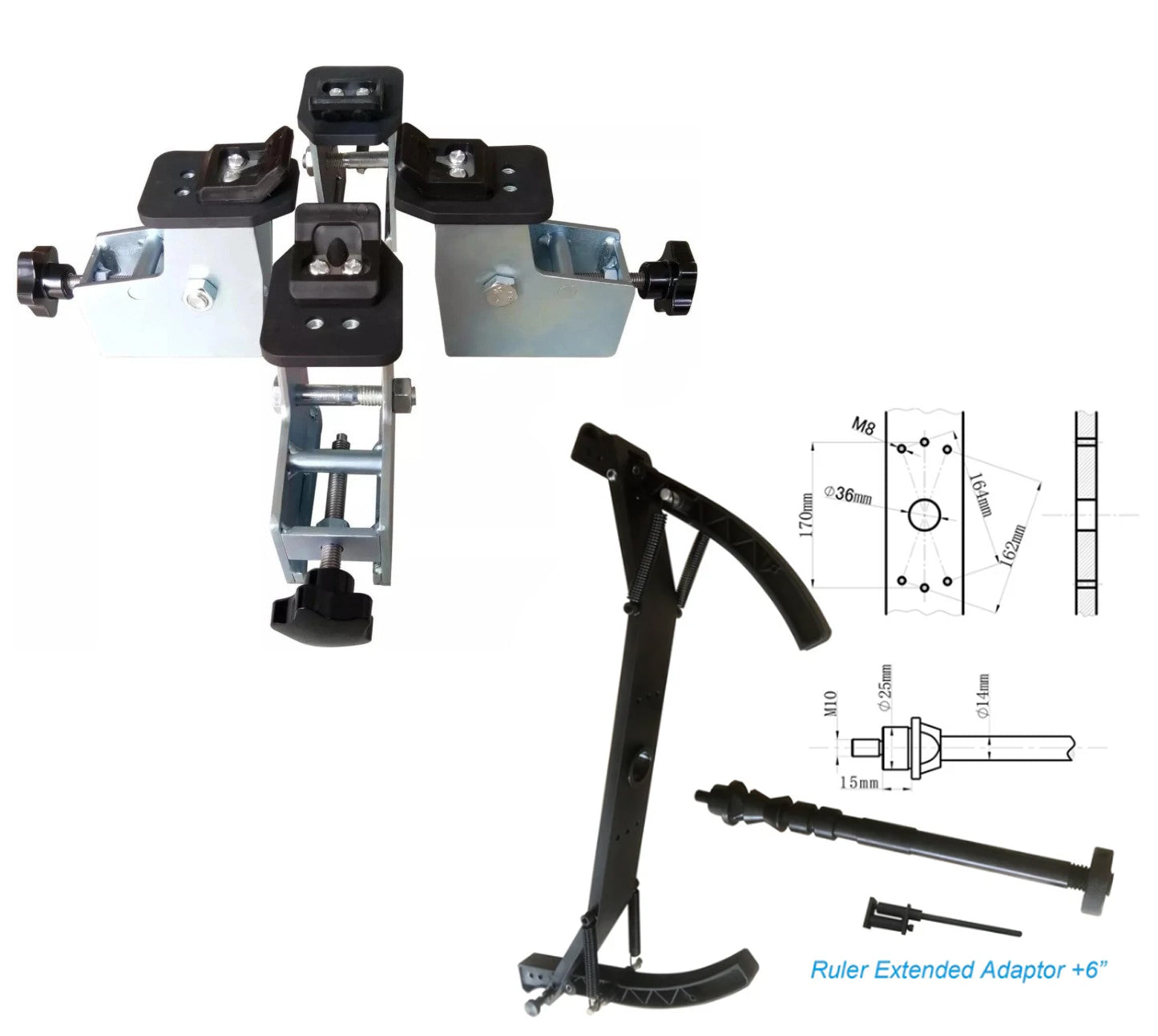

Optional motorcycle adapter kit shown separately

Shop Setup and Buying Checklist

• Electrical: The supplier lists 120V single-phase power for both machines. Confirm circuits and installation requirements for the exact units delivered.
• Compressed air: Supply the KT-T810 with regulated air within its listed 116–145 psi operating range.
• Wheel fit: Compare wheel dimensions to the changer's clamp and tire capacity and to the balancer's separate weight and diameter limits.
• Accessories: Verify the included cones, mounting tools, protective covers and any motorcycle adapters against your selected package's packing list.
• Floor layout: Leave room around the tire changer's bead breaker and turntable and enough working space at the balancer to load wheels safely.

Two machines, one workflow: Mount or demount with the KT-T810, then balance a compatible complete wheel assembly on the KT-B760.
