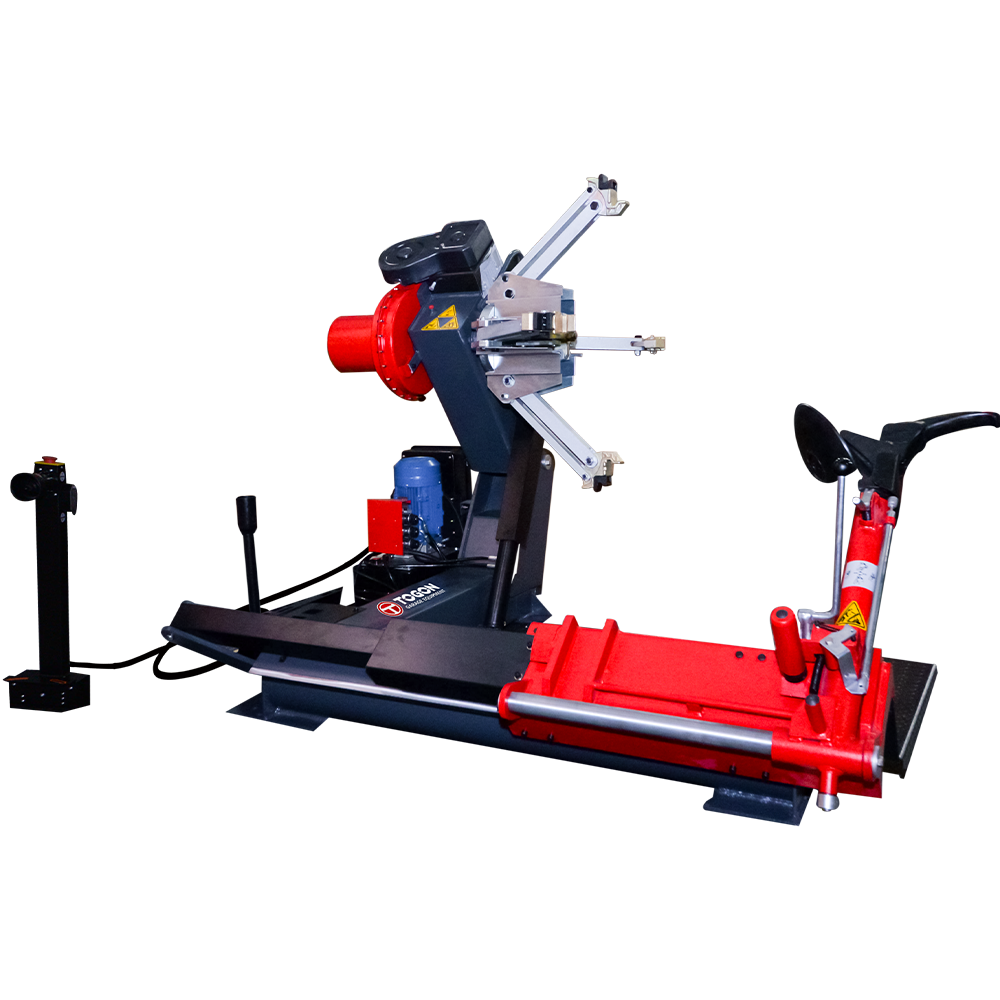

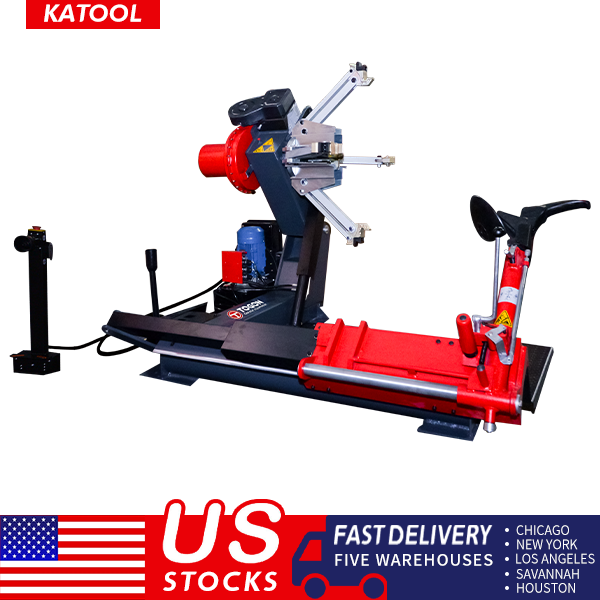

Katool KT-T260 Heavy Duty Tire Changer 14"-42" Rims

Professional Tire Service for Large Wheels

The KATOOL KT-T260 is designed for mounting and demounting heavy truck, bus, tractor and other eligible commercial and off-road tires. Its electro-hydraulic drive helps operators position and work on large, heavy assemblies with controlled movement. The machine is intended for truck tire shops, fleet maintenance departments, agricultural service businesses and other professional tire facilities that need more capacity than a passenger-car tire changer provides.

Key Features

• Wide clamping range: Handles manufacturer-listed rim diameters from 14 to 42 inches.
• Large wheel capacity: Listed maximum overall wheel diameter of 91 inches and width of 41 inches (1,040 mm).
• Heavy assembly handling: Manufacturer-listed maximum wheel weight of 3,527 pounds.
• Electro-hydraulic operation: Combines electric drive with a hydraulic pump system for controlled heavy tire service.
• High-force performance: Listed maximum torque of 5,265 N·m and bead-breaking force of 7,275 pounds.
• Commercial construction: Reinforced steel build suited to demanding shop use.

KT-T260 Technical Specifications

Specifications are from the KATOOL product listing. Confirm the specific electrical configuration supplied to your location before arranging installation.

Wheel Clamping and Control Details

The product gallery shows the wheel clamping head, adjustable arms and a separate operator control station. These elements help the operator position a large wheel assembly and control the changer during tire service. The manufacturer describes the machine as suitable for truck, bus, tractor and off-road applications within its stated capacity.

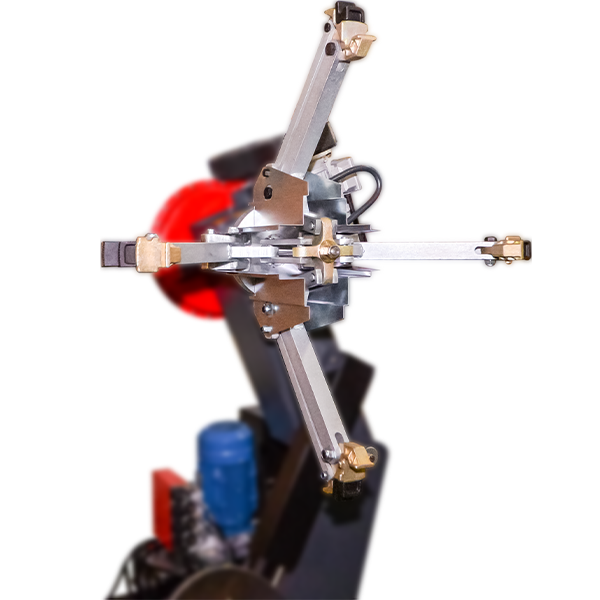

Wheel clamp and adjustable arm assembly

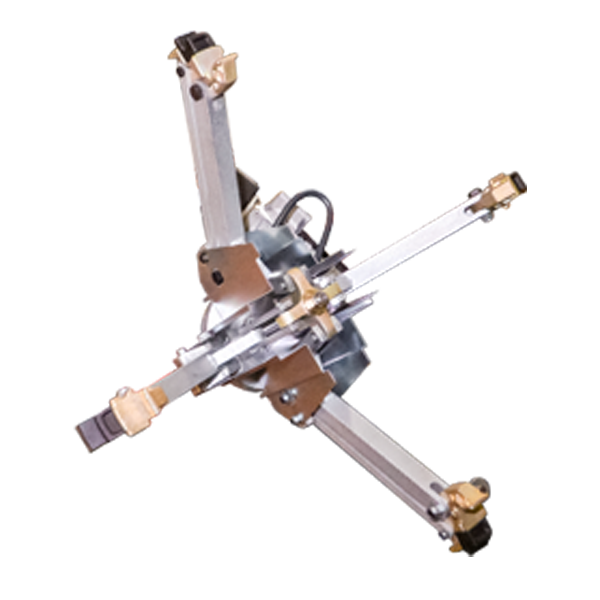

Multi-arm clamping head

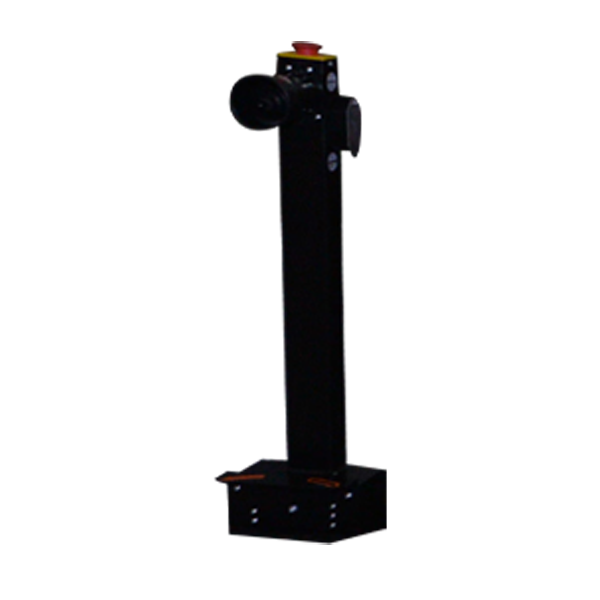

Operator control station

Choose the Right Configuration for Your Shop

• Wheel fit: Check rim diameter, assembled wheel diameter, width and weight against all four KT-T260 limits.
• Electrical service: The supplier lists multiple voltage and phase options. Confirm the ordered unit's nameplate voltage, phase and frequency before an electrician prepares the circuit.
• Floor space and handling: Plan room for the machine, large wheel assemblies, operator movement and a safe freight unloading route. The listed machine weight is approximately 1,671 pounds.
• Accessories: Confirm which tools, clamps and adapters are included for the wheel types you service; the supplier page does not give a complete itemized accessory list.

Typical Applications

Commercial truck tire shops, fleet maintenance facilities, bus service operations, agricultural equipment service and off-road tire work on assemblies within the machine's published limits.

Freight and Receiving

This is a large commercial machine. Arrange suitable unloading equipment and inspect the shipment and packaging at delivery. Freight service, unloading responsibility and any accessorial charges should be confirmed for your destination and order before purchase.

Product Images and Specification Graphics

Additional supplier gallery views show the KT-T260's size and performance information along with the clamping assembly in operation.

Rim range and torque graphic

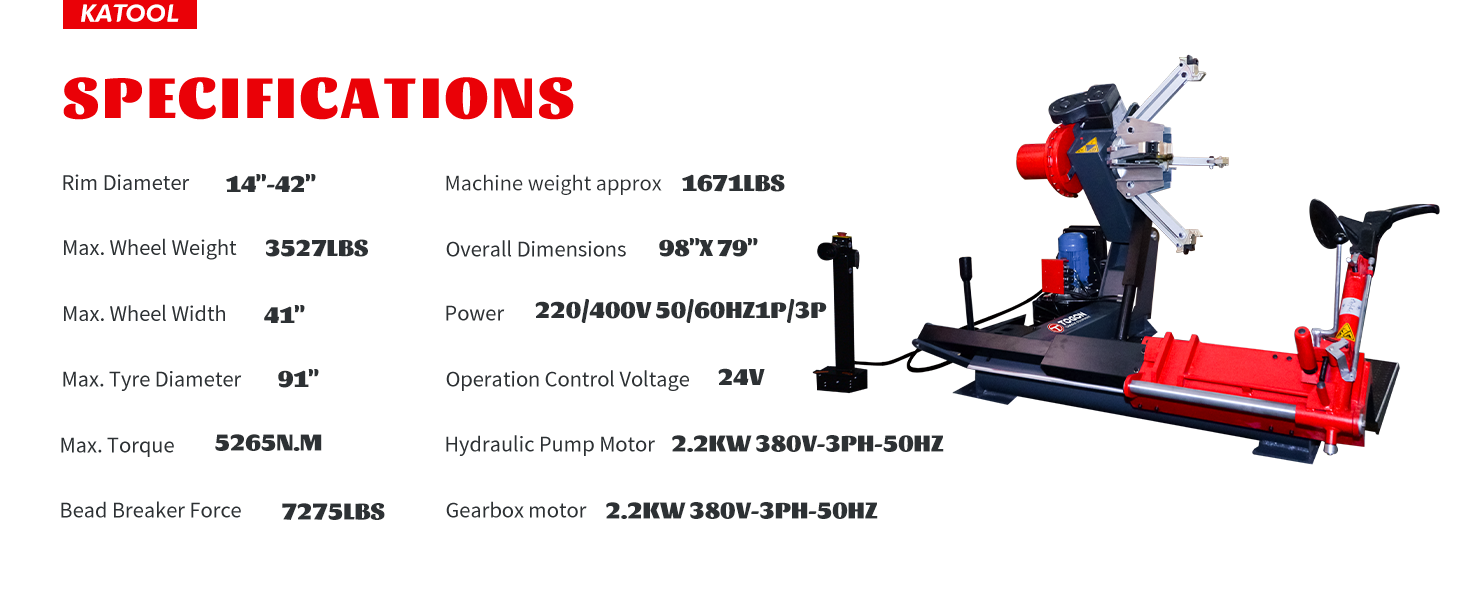

Manufacturer specification graphic

Operation and control graphic

Order planning: Verify your wheel dimensions, electrical configuration and included tooling for the exact KT-T260 package before ordering.
