Katool KT-SK26W Mini Skid Steer Track Loader 23HP
KATOOL Compact Equipment

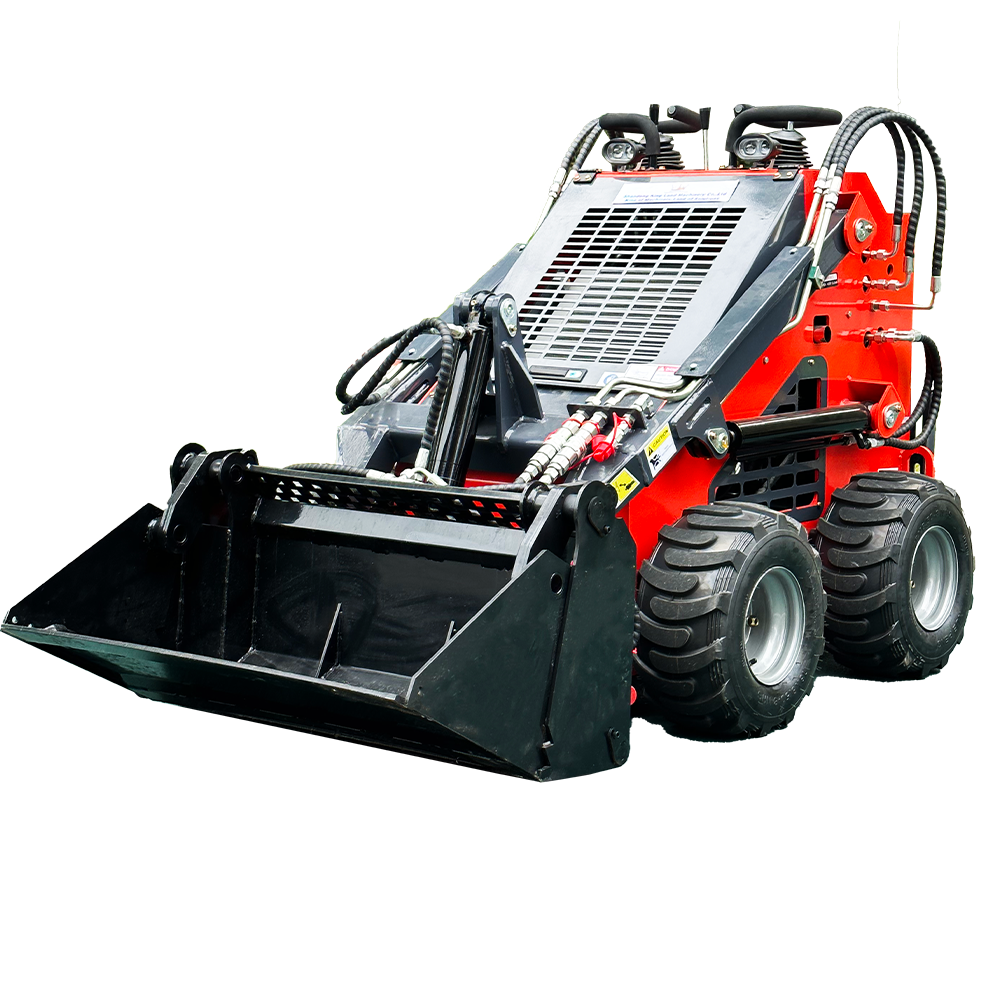

Wheeled configuration shown • 23 HP RATO engine • 837 lb listed lifting capacity
The KATOOL KT-SK26W is a compact mini skid steer loader for landscaping, material handling, and work in areas where a full-size machine is impractical. The supplier lists a 23 HP RATO gasoline engine with electric start and an 837 lb rated lifting capacity. The product images show a four-wheel machine with a front bucket and standing operator platform.
| Model | KT-SK26W |
|---|---|
| Configuration shown | Wheeled mini skid steer |
| Engine | 23 HP RATO gasoline engine; supplier states EPA certified |
| Starting system | Electric start |
| Rated lifting capacity | 837 lb |
| Operating weight | Approx. 1,984 lb (900 kg) |
| Fuel tank | 5.3 gal (20 L) |
| Hydraulic oil tank | 6.6 gal (25 L) |
| Travel speed | Up to 3.7 mph |
| Drive pressure | 2,611 PSI |
| Battery | 12V / 36Ah |
| Listed machine dimensions | 115 × 45.5 × 54.7 in |
| Listed shipping dimensions | 82 × 48 × 51 in |
| Construction | Q235 / Q245 steel |
The supplier title calls this a “track loader,” but its KT-SK26W product images show a wheeled machine. Confirm the drive configuration, attachment package, and dimensions before ordering.

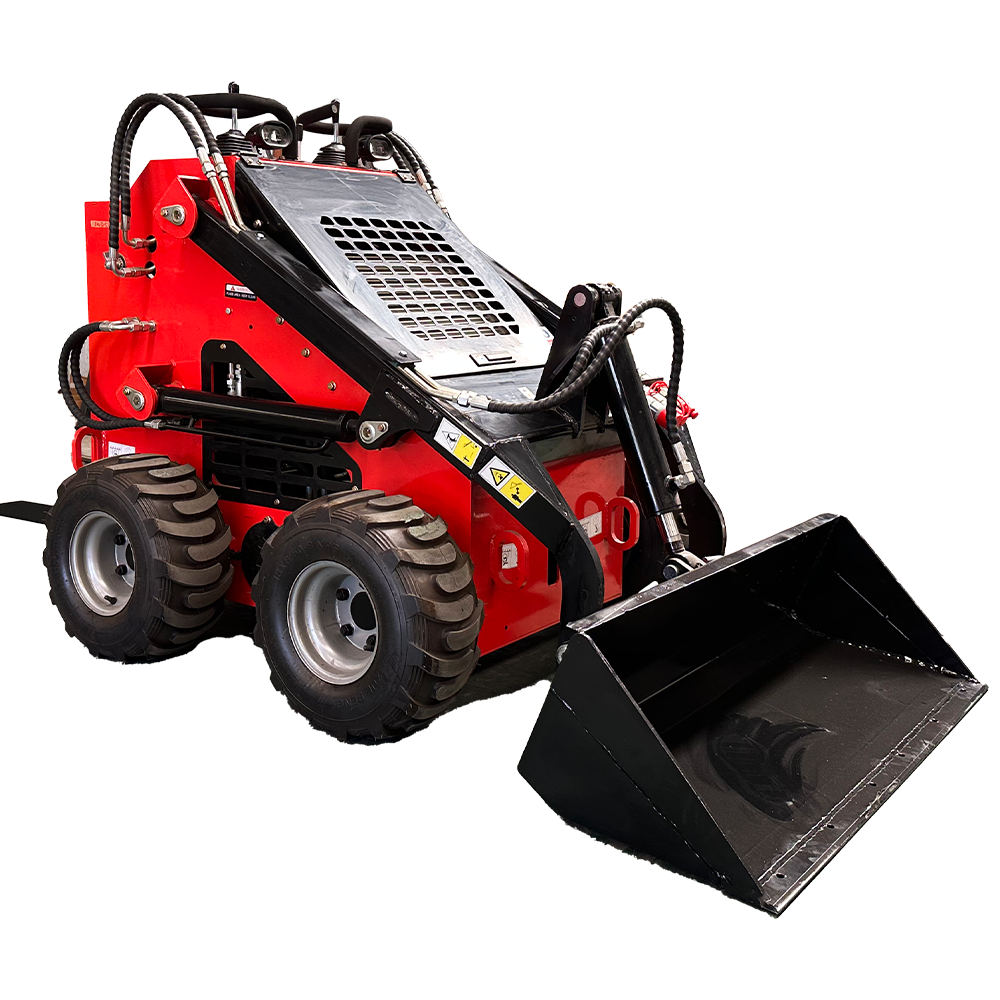

KT-SK26W four-wheel mini skid steer loader angled view

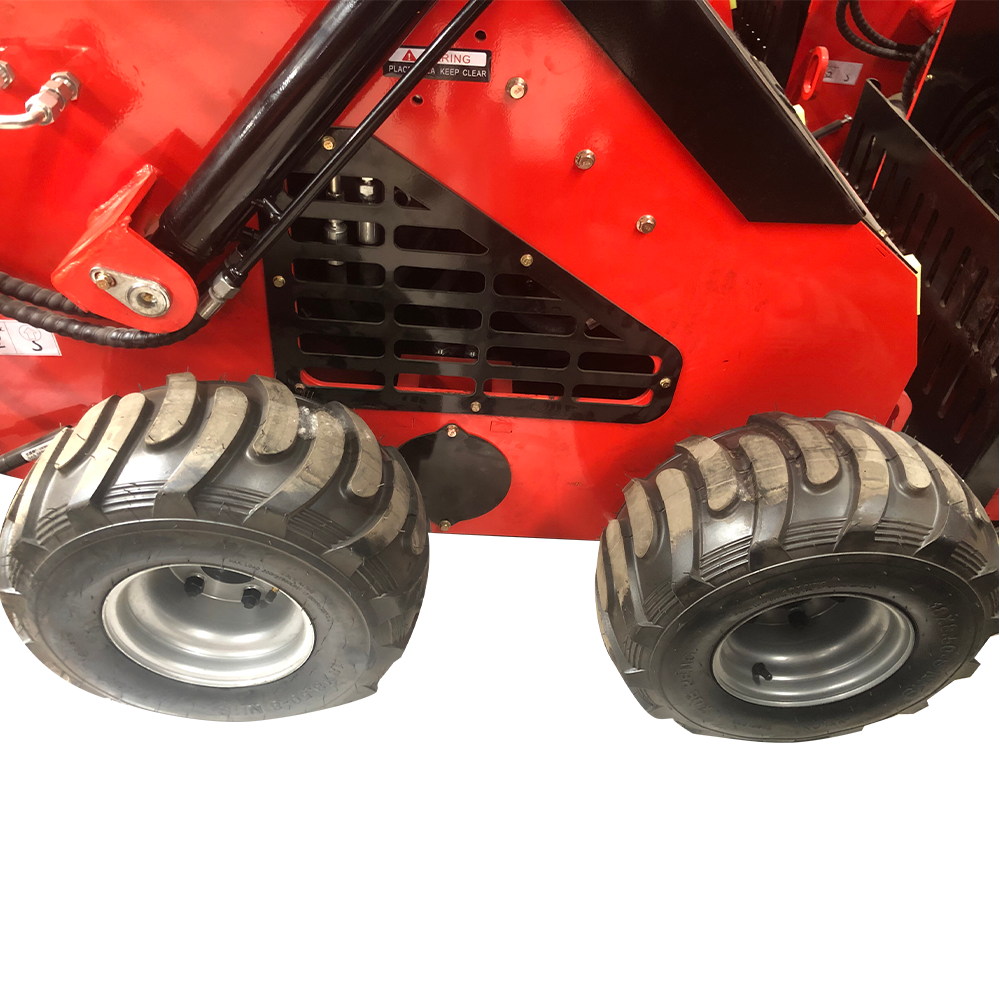

KT-SK26W wheeled drive close-up

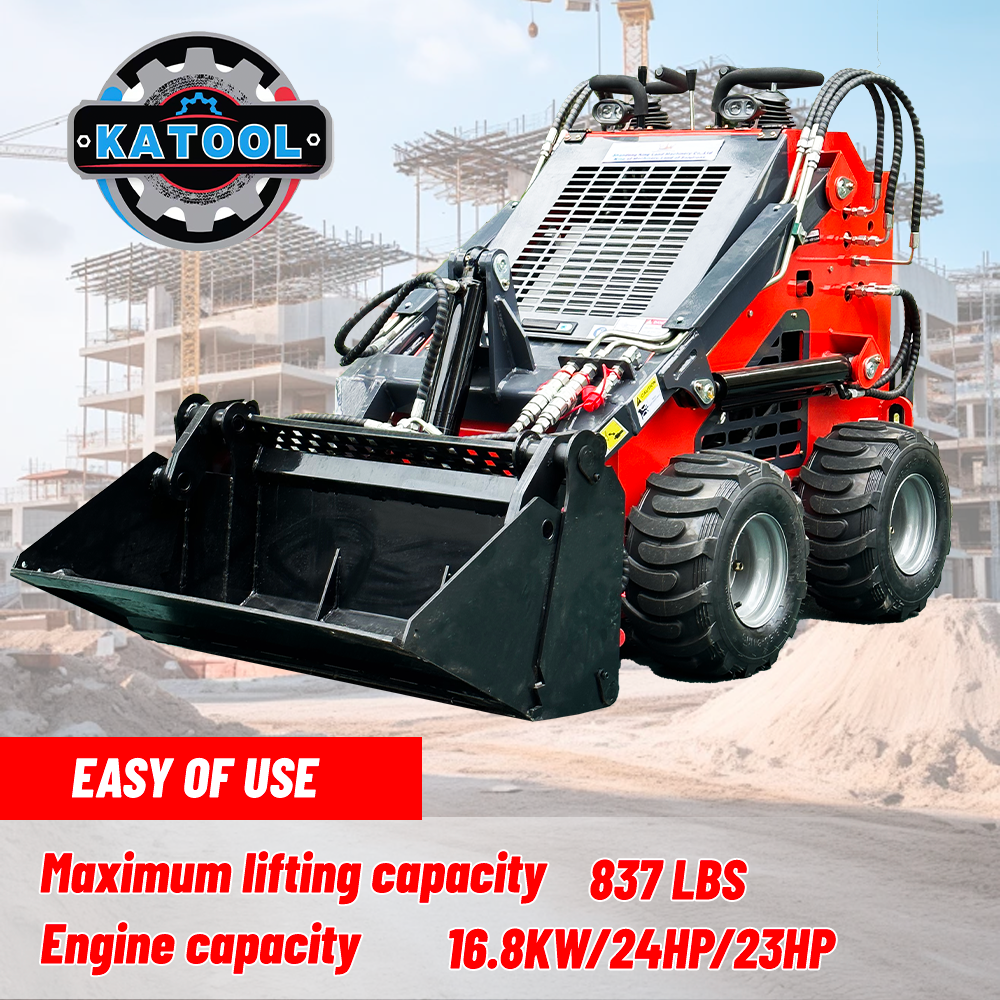

KT-SK26W mini loader 837 lb lifting capacity graphic

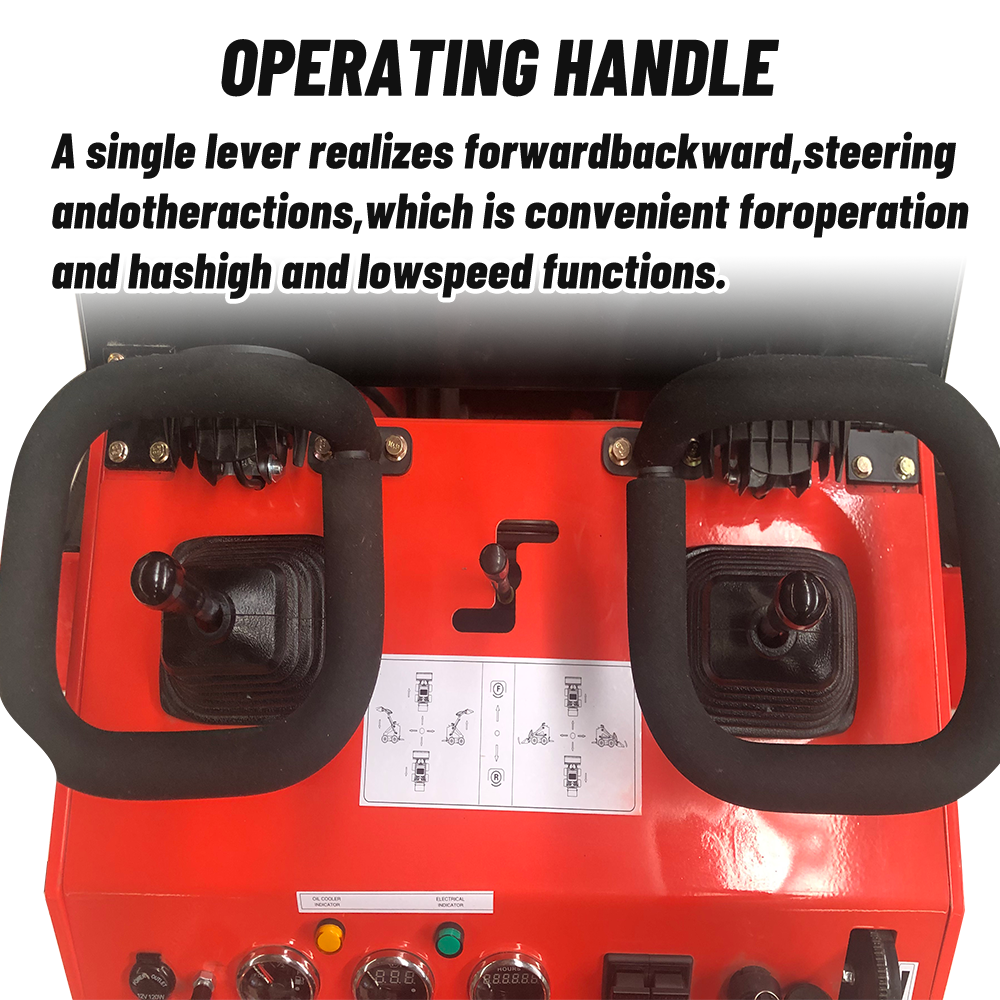

KT-SK26W operating handle and joystick control diagram

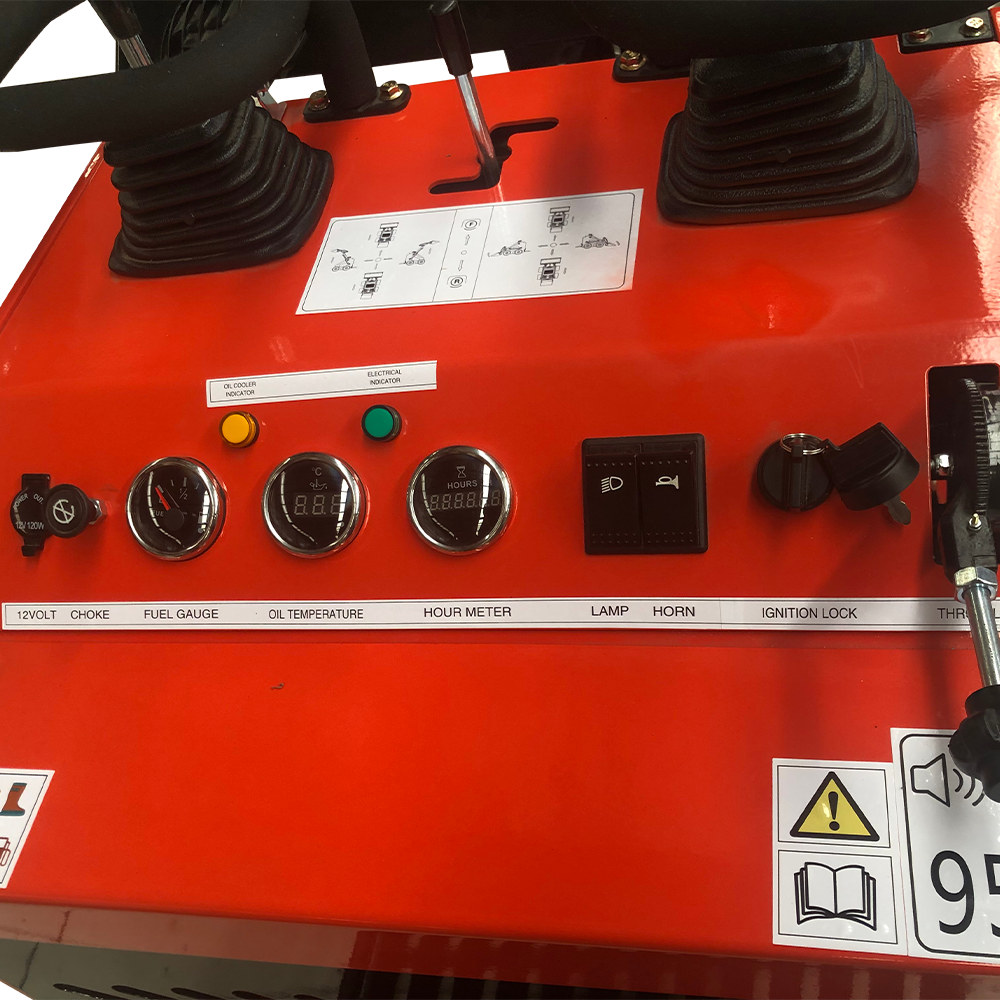

KT-SK26W equipment controls close-up

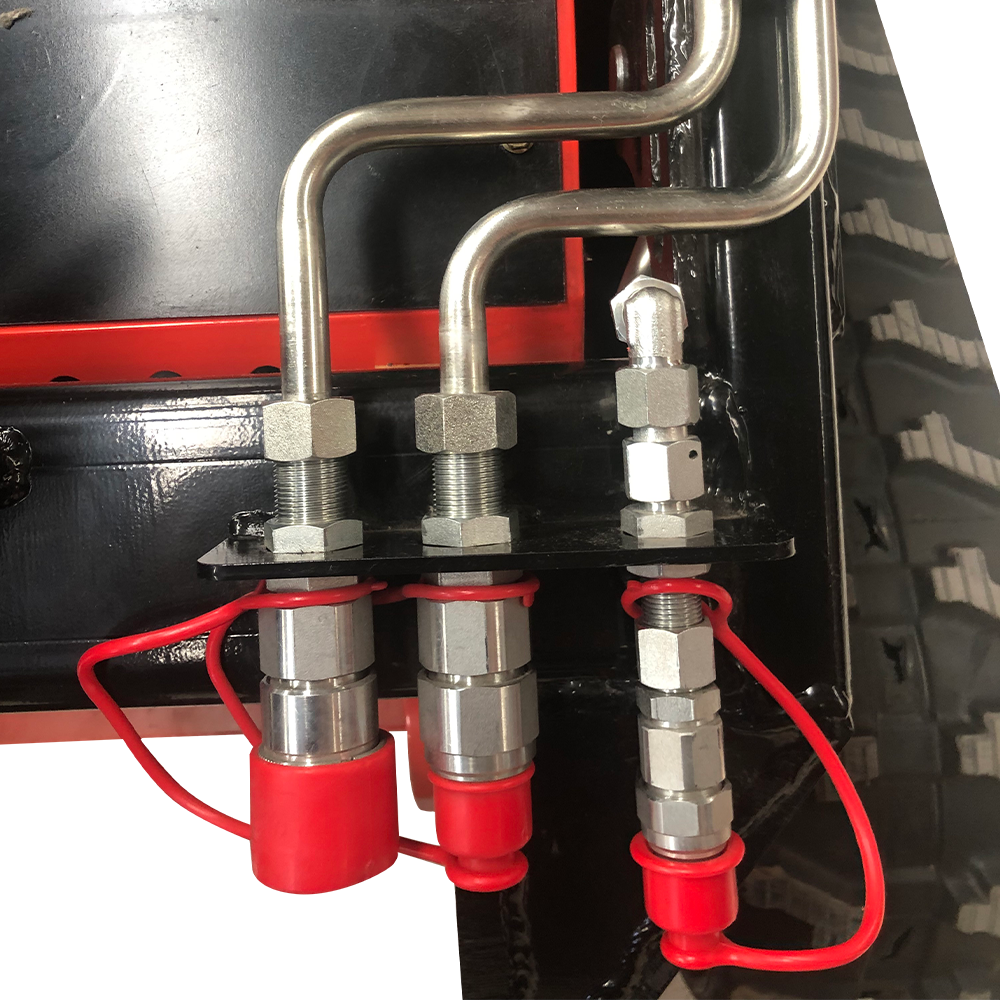

KT-SK26W hydraulic fittings

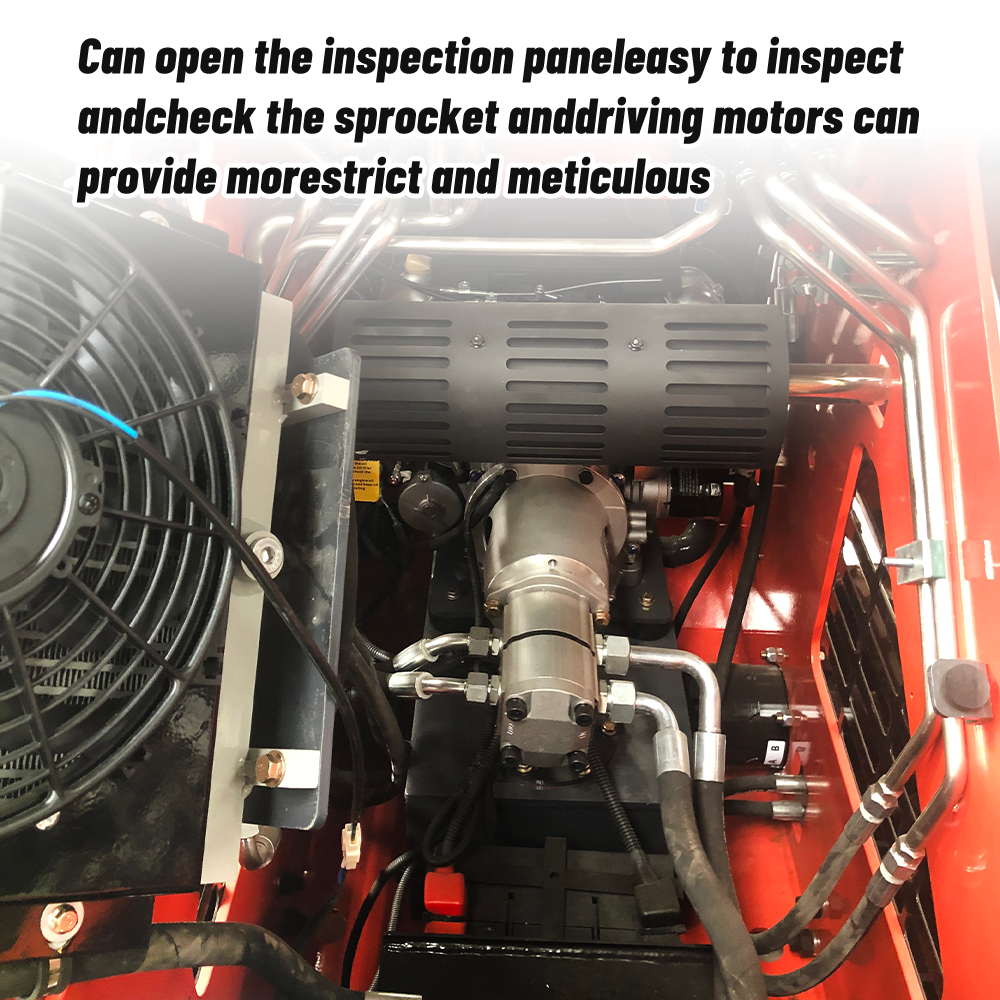

KT-SK26W engine service access panel

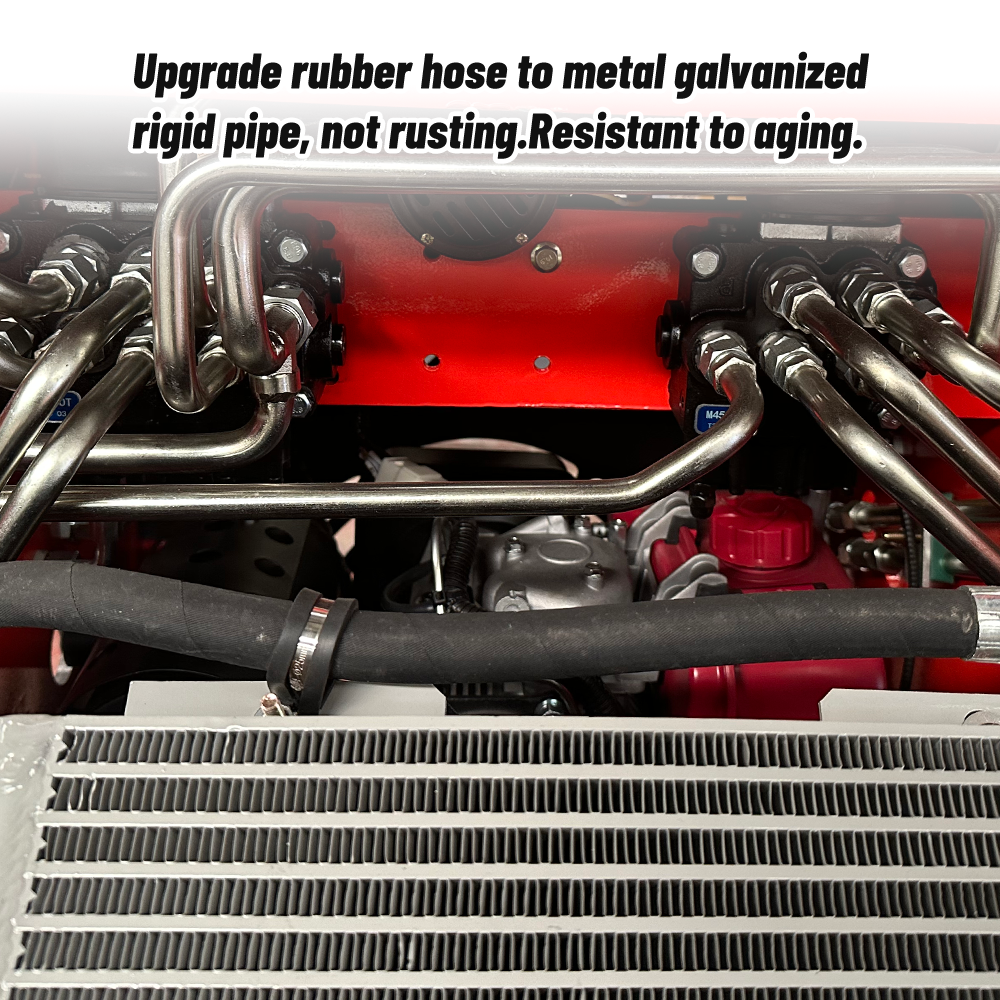

KT-SK26W galvanized hydraulic piping detail

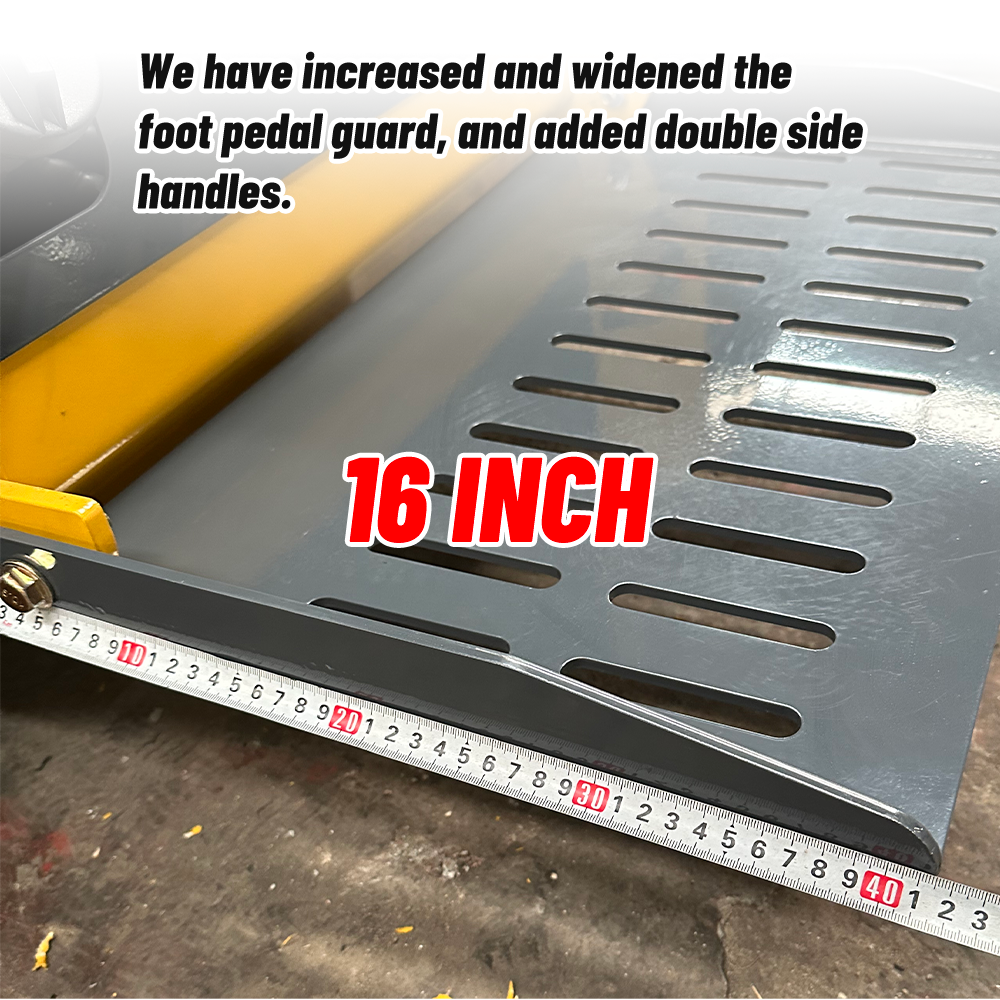

KT-SK26W operator foot platform and side handles
