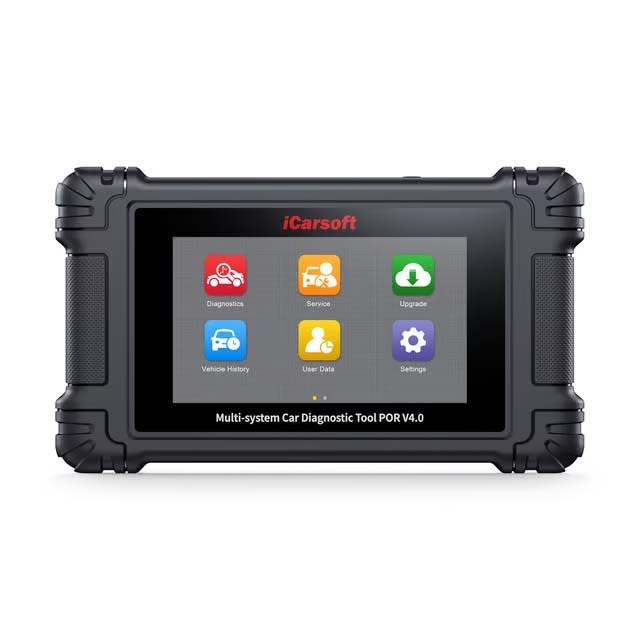

ICarsoft POR V4.0
Professional Porsche diagnostics for owners, independent technicians and repair shops. Full-system access, bidirectional active tests, 28 service functions, CAN-FD support, AutoVIN and lifetime free Wi-Fi software updates.
POR V4.0 comes pre-installed with Porsche diagnostic software. You can also download two additional supported vehicle make groups free of charge, giving the scanner useful coverage beyond Porsche without purchasing another diagnostic platform.
POR V4.0 includes lifetime free software upgrades delivered wirelessly through Wi-Fi. There is no annual software renewal charge for the included diagnostic software.
CAN-FD support gives POR V4.0 the communication capability needed for supported newer Porsche platforms using the higher-data-rate Controller Area Network Flexible Data-rate protocol.
POR V4.0 can send commands to supported control modules and components so technicians can observe actual operation. Active tests can help separate a component problem from wiring, control-module or command issues.
Active-test availability varies by Porsche model, production year and installed control module.
On supported applications, AutoVIN can identify vehicle information automatically, reducing manual vehicle selection and data-entry errors. Manual selection remains available when AutoVIN is not supported.
English · Deutsch · Français · Nederlands · Español · Čeština · Svenska · Русский · Magyar · Norsk · Português · Italiano · Polski · Dansk · Suomi
Oil Reset — Reset supported oil-life, service-lamp, mileage and maintenance interval information after service.
Electronic Throttle Control — Relearn supported throttle control parameters after service or component replacement.
EPB / Brake-Pad Reset — Retract supported electronic parking-brake calipers and reset service information.
Steering Angle Reset — Calibrate the supported steering-angle sensor after steering or alignment work.
DPF Regeneration — Perform supported diesel particulate filter regeneration and related relearn procedures.
Injector Coding — Register or relearn supported injector parameters following replacement.
ABS Bleeding — Assist supported ABS hydraulic bleeding and relearn procedures.
Air Suspension Service — Perform supported calibration, height adjustment, reset and initialization procedures.
Battery Management Service — Support battery monitoring and battery-replacement registration functions.
TPMS Reset — Supported tire-pressure sensor ID and service procedures.
Air Conditioner Service — Supported A/C adaptation and initialization procedures.
Head Lamp Service — Supported adaptive-headlamp calibration and initialization.
Body Stability Control Service — Supported stability-control adaptations and resets.
Engine Control Service — Supported engine-module adaptations and resets.
Transmission Control Service — Supported transmission adaptation and service procedures.
Air-Bag Reset — Supported SRS-related reset procedures following proper repair.
Seat Service — Supported seat-position calibration procedures.
Door / Window / Roof — Supported window-position and related body-system learning.
ODO Meter Verification — Read supported odometer values stored in vehicle modules.
Exhaust Gas Recirculation — Supported EGR-related service procedures.
Clutch Matching — Supported clutch contact-point and engagement learning.
High-Voltage Battery — Supported EV/hybrid battery maintenance and adaptation procedures.
Cruise Control System — Supported ACC calibration and personalization procedures.
Radar / Camera — Supported radar/camera learning and calibration functions.
Vehicle Setup — Configure supported features and replacement components.
Seat Belt — Supported pretensioner-related maintenance procedures after proper repair.
Mileage Verification — Compare supported odometer data stored across multiple ECUs.
VIN Verification — Compare VIN information stored in supported vehicle ECUs.
Functions are vehicle dependent. Verify the specific Porsche, year and required function before ordering.
POR V4.0 provides diagnostic access to supported electronic systems throughout the Porsche, allowing technicians to read and erase DTCs, view live data and use available special functions across powertrain, chassis, safety, body and comfort modules.
Supports standard OBD diagnostic functions on compatible 1996+ OBDII/EOBD/JOBD/KOBD/CAN/CAN-FD applications.
| Specification | POR V4.0 |
|---|---|
| Operating System | Android |
| Processor | Quad Core 1.3 GHz |
| Memory / Storage | 64GB |
| Display | 5-inch LCD capacitive touchscreen, 854 × 480 |
| Connectivity | USB 2.0 / Wi-Fi 2.4GHz / OBDII |
| Input | USB Type-C, 5V / 2A |
| Vehicle Power | 9–18V |
| Battery | 3.7V 5000mAh; approximately 6 hours tested continuous use |
| Operating Temperature | 0–50°C (32–122°F) |
| Storage Temperature | -20–70°C (-4–158°F) |
| Humidity | 5%–95% non-condensing |
| Dimensions | 200 × 116 × 30.2 mm (7.87 × 4.57 × 1.19 in) |
| Net Weight | Approx. 380 g |
| Updates | Lifetime free Wi-Fi software upgrades |
| Languages | 15 |
ISO 9141-2, ISO 14230-2, ISO 15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO 11898 high-speed/medium-speed/low-speed/single-wire CAN, CAN-FD, SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H, TP2.0 and TP1.6.
Package contents should be verified against current iCarsoft U.S. inventory before publication because included accessories may change by production batch or regional package.
| Feature | V1.0 | V2.0 | V3.0 | V4.0 |
|---|---|---|---|---|
| Coverage | Porsche | Porsche | Porsche | Porsche + 2 free groups |
| Display | 3.5" | 4" | 4" | 5" |
| Interaction | Buttons | Buttons | Buttons | Touchscreen |
| Full Systems | ✓ | ✓ | ✓ | ✓ |
| Update Method | USB | USB | USB | Wi-Fi |
| Lifetime Updates | ✓ | ✓ | ✓ | ✓ |
| Bidirectional / Active Test | — | — | ✓ | ✓ |
| 19 High-Level Functions | — | — | ✓ | ✓ |
Vehicle coverage, AutoVIN, active tests, service functions, adaptations and calibrations vary by Porsche model, production year, installed ECU and configuration. Contact eAutoTools before ordering if a specific function is required.
Give eAutoTools your Porsche model, year and the function you need. We'll help you confirm compatibility before ordering.
