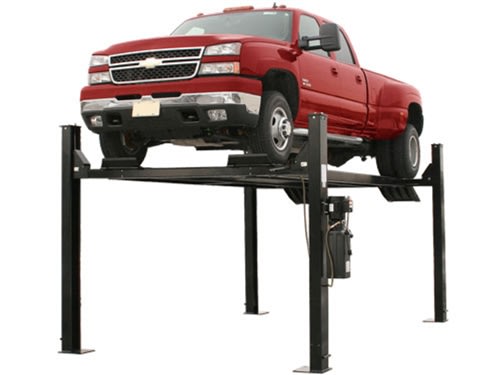

| Atlas® Garage Pro 9,000 Specifications |
| |
|---|
| Capacity | 9,000 LB |
| Lifting Height To Top Of Runway | 85" (7' 1") |
| Overall Length with Approach Ramps | 227 1/2" (18' 11 1/2") |
| Overall Length without Approach Ramps | 204" (17') |
| Length Between Columns | 184 1/2" (15' 4 1/2") |
| Overall Width (With Motor) | 131 1/2" (10' 11 1/2") |
| Overall Width (Without Motor) | 123 1/2" (10' 3 1/2") |
| Approach Ramp Length | 31 1/2" |
| Total Runway Width | 21 1/4" |
| Runway Length | 199 1/2" (16' 7 1/2") |
| Runway Thickness | 4 3/4" |
| Width Between Runways | 39 1/4" |
| Width Between Runway Rails | 35 1/2" |
| Outside Runway to Outside Runway | 79" (6' 7") |
| Clearance Under Runways | 80 1/2" (6' 8 1/2") |
| Size of Column | 7 1/2" x 4 1/2" |
| Clearance Between Columns | 110 1/2" (9' 2 1/2") |
| Base of the Column | 11 1/2" x 11 1/2" |
| Height of Columns | 95 3/4" (7' 11 3/4") |
| Maximum Wheel Base | 187" (15' 7") |
| Drive Thru (Outside of tire to outside of tire) | 97 1/4" (8' 1 1/4") |
| Cable Diameter | .4375" (7/16") |
| Gauge Of Steel | 5 Gauge (.2" / 1/5" / 5mm) |
| Motor | 110 Volt. A 30 amp breaker is required. |
| Oil Requirement | 3-5 Gallons AW32/AW46 |
| Shipping Weight | 2,300 LBS. |
