Topdon ADAS DeluxePackage
Features | What's in the Box | ||||||||||||||||||

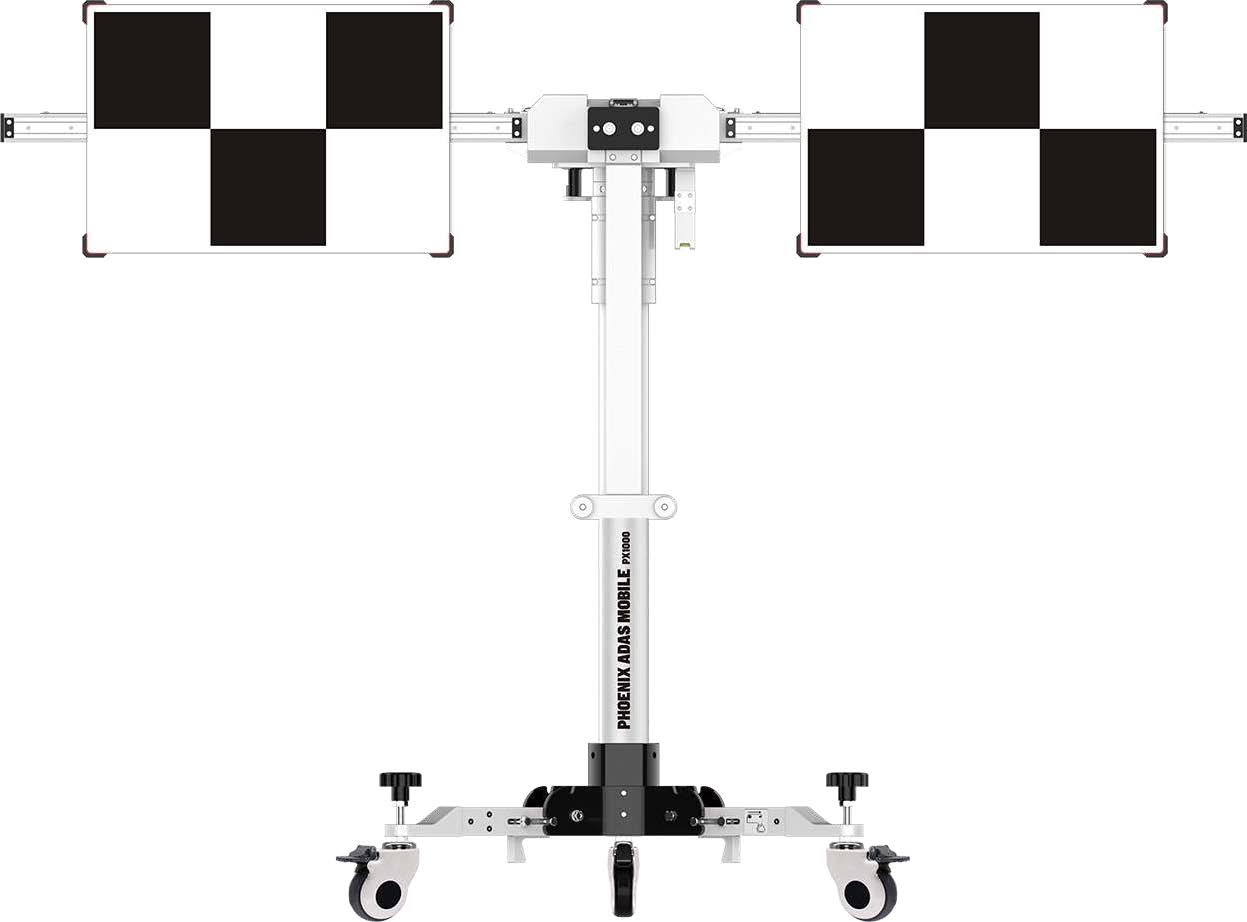

A high-precision 5-lasers device will assist you to position the ADAS calibration tool with exactness. Featuring a multifunctional base with 360-degree swivel wheels, it allows you to adjust the height and make adaptations to calibrate when working on uneven ground. SpecsThe Phoenix ADAS Mobile comes safely packaged in a Wooden Case (3.8*3.6*2.0 ft ; 308lb). Large targets are shipped separately in Carton Packaging (4.5 ft*0.3 in*3.3 ft; 39lb). |
|
| The Phoenix ADAS Mobile MAX Package comes with the full set of accessories, all of the 24 LDW targets from the standard package, as well as the ADAS Rear Camera & AVM Panels (US, Euro, and Asian); Doppler Simulator (LAC05-04); Radar Cone Target Configuration (LAM05-02), and Corner Reflector (LAC05-03). | |||
Lane Departure Warning (LDW) |
 |  |  |  |
| VW/Audi LAM01-02 | Hyundai/Kia LAM01-09 | Subaru LAM01-15 | Subaru-LAM01-21 |
 |  |  |  |
| BenzLAM 01-01 | MazdaLAM 01-10 | Hyundai/KiaLAC 01-13 | HondaLAM 01-20 |
 |  | | |
| HondaLAM 01-04-L | Honda LAM 01-04-R | NissanLAM 01-07-L | NissanLAM 01-07-R |
 |  |  | |
| Mazda LAM 01-16-L | Mazda LAM 01-16-R | Mitsubishi LAM 01-19-L | Mitsubishi LAM 01-19-R |
 |  |  |  |
| Renault/NissanLAM 01-12-L | ToyotaLAM 01-06-1 | ToyotaLAM 01-06-2 | ToyotaLAM 01-06-3 |
 |  |  |  |
| MitsubishiLAM 01-19-L | HondaLAM 01-17 | SuzukiLAM 01-18-L | SuzukiLAM 01-18-R |
| ThePhoenix ADAS Mobile Deluxe Packagecomes with thefull set of accessories, all of the24 LDW targetsfromthe standard package, and the following targets: | |||||
| AVM AS (Asian Rear 360 Surround View Camera) | Radar Doppler ACC Package | ||||
|  LAC04-02 Honda-AVM  LAC04-12-01 LAC04-12-02 Hyundai-AVM Hyundai-AVM |  LAC04-11 LAC04-15 Nissan-RCW Nissan-RCW |  LAM-02 ACCReflector
| ||

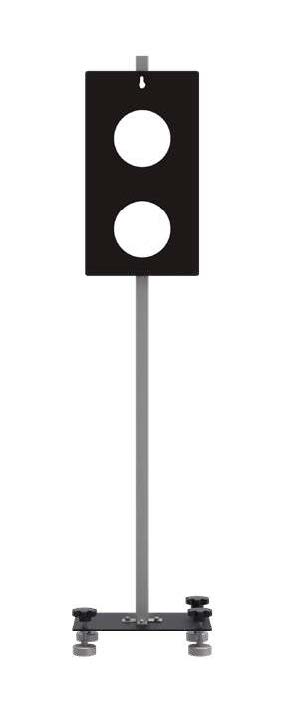

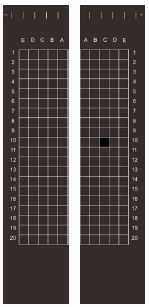

| AVM EU (Europe Rear 360 Surround View Camera) | AVM AM (American Rear 360 Surround View Camera) | |||

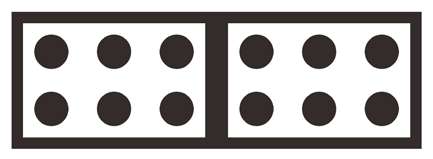

|  LAC02-03 VW-RCW  LAC04-04
|
| ||
| *Additional Targets Available for Purchase | ||||
OPERATION STEPS | |
| STEP 1: Set up your TOPDON PHOENIX ADAS Mobile | STEP 2 : Active the ADAS System in your Phoenix Diagnostics Tablet |

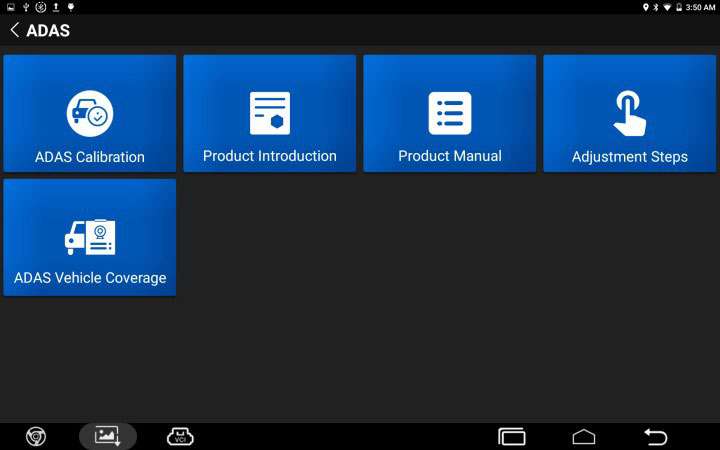

 | Follow the steps below to activate. A. Press the POWER button on the diagnostic tool to turn it on. B. Tap the "ADAS" icon to view the following screen:  *This picture is for reference only. |
| STEP 2 : Active the ADAS System in your Phoenix Diagnostics Tablet | STEP 3 : Perform the pre-calibration preparation |

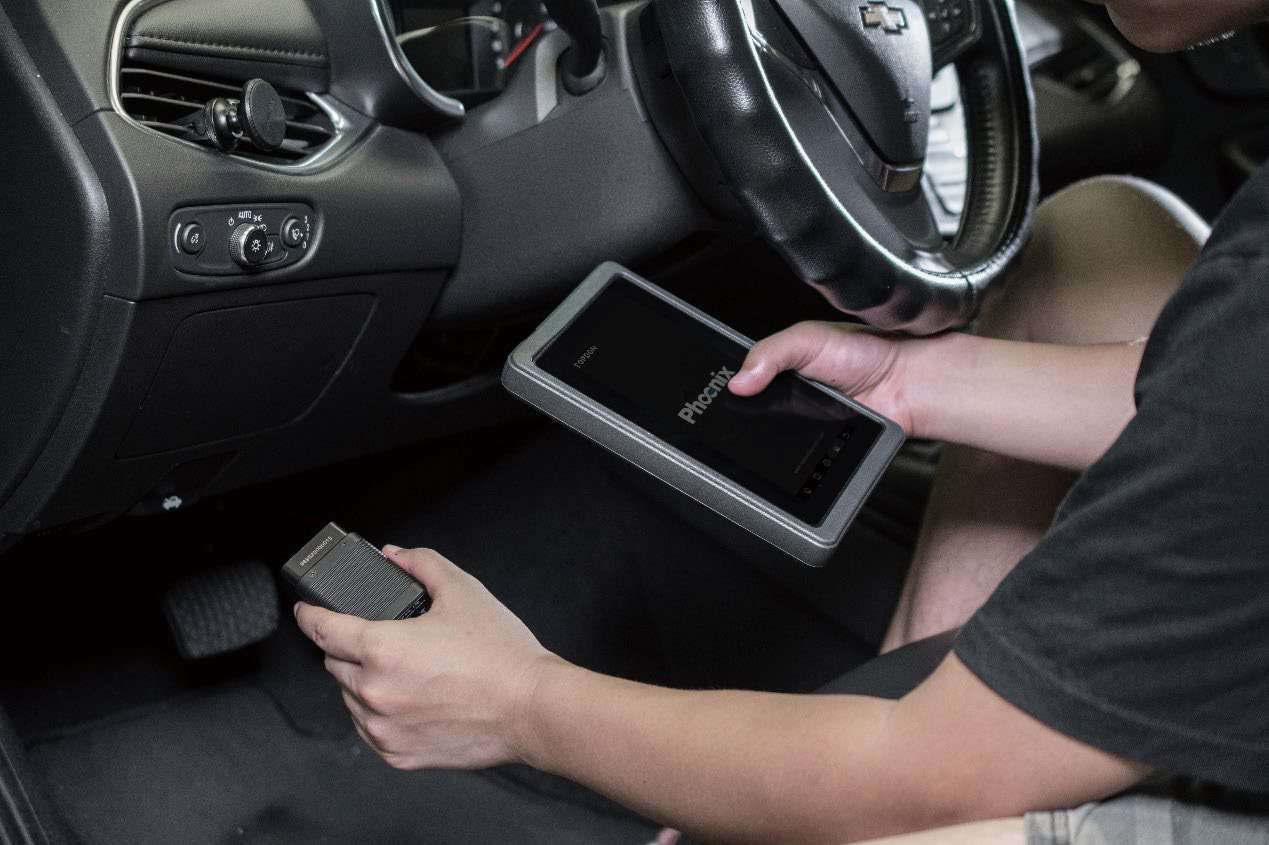

A. Tap ADAS Calibration to view the ADAS activation screen. B. Scratch the designated area on the Activation Card included in your Phoenix ADAS Mobile Package to reveal the password. Then input the 24-digit password to activate it. C. After completing all these steps, the ADAS calibration function should be ready for use. | Plug your diagnostic scanner's VCI into the car's DLC port, and use the diagnostic tool to identify the vehicle model.  |
| STEP 4 : Start Calibrating the ADAS System |
Choose the ADAS system you want to calibrate, and follow the on-screen instructions until the calibration process it's completed.
*This procedure varies depending on which diagnostic scanner you are using. The step-by-step access to the ADAS function can differ. |
WORKPLACE REQUIREMENTS | |||||||||||||||||||||||||
Work Station Specifications When calibrating the rear & AVM camera, the workstation's ideal |
| ||||||||||||||||||||||||
Q How Does ADAS Work?
A The ADAS (Advanced Driver Assistance System) uses image processing cameras, radar, light detection, and other sensors to monitor the vehicle's surroundings and detect potentially
dangerous situations. The purpose is to increase safety through advanced situational awareness and reduce collision possibilities. Sensors used in ADAS include cameras, radars, lasers, and ultrasound. They can detect light, heat, pressure, and other variables used to monitor the vehicle. Usually, they are located in the front and rear bumpers, side mirrors, vehicle cab, and windshield glasses.
Q When to Calibrate an ADAS System?
A When repairing a vehicle after an accident, the calibration of the relevant auxiliary systems needs to be performed. When disassembling or reinstalling monitoring components such as cameras, radars, and sensors, replacing the vehicle ECU, or the vehicle height, the auxiliary and other systems will also need to be calibrated.
Q What is the ADAS Front-view Camera？
A The front-view camera captures what is in front of the vehicle. It's used in a number of ADAS Systems, including Lane Departure Warning (LDW), Lane Keeping Assist (LKA), and Traffic Sign/Signal Recognition (TSR) - often in conjunction with other sensors, cameras, or sensing systems to provide input data.
Q How Can I Get the ADAS Calibration Software?
A To get an ADAS calibration software, you can purchase a Phoenix diagnostics scanner or upgrade your existing Phoenix tablet.
Upgrade Instructions: The Phoenix ADAS mobile accessories come with an activation card, including a password. Simply tap on the tablet's ADAS menu to activate the calibration function. The ADAS Mobile is compatible with the entire Phoenix Line.
Q Which Vehicle Actions Require ADAS System Diagnostics or ADAS Sensor Calibration?
A Anything that affects the calibrated sensors. The most common needs for recalibration include collisions, window, bumper, hood, or trunk damage, mirror replacements, suspension work, module replacement, direct damage to a sensor, sensor replacements, and wheel alignments.
Q What are the Different Types of ADAS Calibrations and Are They Brand Specific?
A This depends on each vehicle. For most modern cars, either Stationary or Dynamic calibration procedures are required.
Some cars, for instance, might require both.
Q If I Want to Add individual Targets later, are They Available for Purchase?
A Yes, the specialty fixtures, existing targets, and new vehiclecoverage targets are available for individual purchase.
Q Do I Need Someone to Assemble and/or Set Up the Calibration Frame?
A No, the complete assembly is simple and it should take about30 minutes. Visual instructions and standard screws are includedin your Phoenix ADAS Mobile Package.
