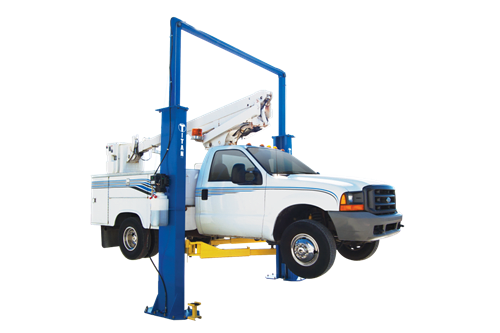

Titan HD2P-15000C
A Texas style two post lift with 15,000 lb. lifting capacity, large twin 3” cylinders with low friction chain rollers, and a “big foot” base plate for extra stability.
The Titan 15,000 LB 2 Post lifts are commercial grade and ideal for automotive service shops or auto enthusiasts. They come with a 220 Volt power unit easily adaptable to most commercial applications. These lifts have the heavy-duty leaf chain, the steel pulleys, the high-strength cable equalization system and everything you'd expect from a quality lift. They come in a durable scratch resistant Cobalt Blue powder-coated finish with bright yellow arms for safety. The Titan 15,000 LB 2 Post above ground lifts should be installed on a concrete floor with a minimum thickness of 4 inches and 3,000 PSI strength. These rugged and versatile lifts are engineered and manufactured to the highest quality standards to provide you years of trouble free service.
- 15,000 lb. lifting capacity
- Low profile automatic arm restraints
- Dual 3” diameter cylinders with low friction chain rollers
- “Big Foot” base plates for stability
- Electrical override automatic safety shut-off on clear-floor models
- FREE mounting hardware
- Durable powder-coated paint finish
SPECIFICATIONS
| Titan HD2P-15000C 2-Post Lift |
| Capacity | 15,000 lbs. |
| Lifting speed - | 45 sec. |
| Power pack - | 2hp 220/230 vac |
| Amperage - | 20 amps |
| Lifting height - | 75 1/2” |
| Lifting height with adapters - | 79 1/2"” |
| Width overall - | 147 3/4” |
| Width between posts - | 120 1/4” |
| Height overall - | 181” |
| Shipping weight - | 2,600 lbs. |
| Warranty - | 5 Year Structural/ 1 Year Hydraulics and Electronics |
*Free shipping to a business, extra charge to a residence.
