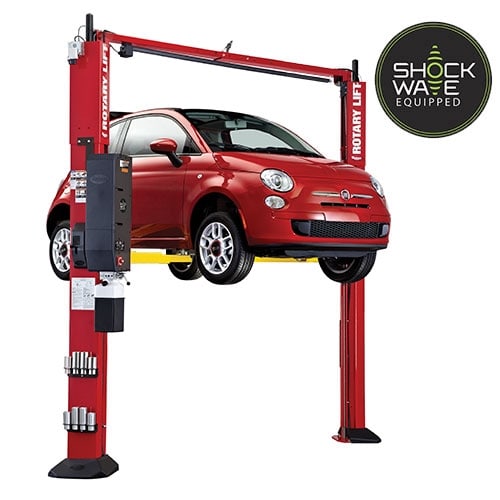

Rotary Lift SPOA10SW TRIO Shockwave

Rotary Lift SPOA10SW TRIO Shockwave

10,000 lbs.Two Post Lift - SPOA10SW TRIO Shockwave | Asymmetric Lift | TRIO Arms

Rotary Lift
$
Product Code: SPOA10SW
This product qualifies for FREE SHIPPING!

Two Post Lift - SPOA10SW TRIO Shockwave | Asymmetric Lift | TRIO Arms

Model Numbers: SPOA10SW, SPOA10SW-TRIO-RA, SPOA10SW-TRIO-TA, SPOA10SW-TRIO-FA

Part Numbers: SPOA10U705, SPOA10U8G5, SPOA10U8T5, SPOA10U805

TRIO ™ Series asymmetric lifts are three arm configurations in one lowprofile arm design. With lifting capabilities of 10,000 lbs., Rotary engineers have created a patented two-piece, three-stage asymmetrical arm that accommodates a wider range of vehicles.

Versatility in matching the right adapters on a single lift is a win for any service bay and adapters are now interchangeable with three vehicle contact options. Technicians can choose the best adapter set for each vehicle to be serviced all on the same arm.

The world’s best selling asymmetrical lift is updated to service a broader range of vehicles - with one innovative arm design! Plus Shockwave Equipped!

  • 2X Faster Rise And Decent
  • DC Power With Onboard 110v Charger
  • Spotline™ Motion Activated Laser
  • Customize With Your Choice Of Adapters
  • ALI Gold Certified (SPOA10X)
Trio ™ Arm Extension

This shows the range of the arms, and the extension of the area.

Third Stage Placement

This shows the range of the adapter when fully retracted.

Shockwave Equipped Rotary Lifts come standard with the SPEED, CHOICE & RETURN on investment that will help you achieve your goals of greater technician productivity and higher profits. Designed specifically for bays where service speed is paramount, Shockwave Equipped lifts are the fastest in the world; helping you keep step with the ever changing demands in the vehicle service industry. This innovative, industry changing technology is only available from Rotary, the world's most trusted lift.
ModelsSPOA10SW-TRIO-FASPOA10SW-TRIO-TASPOA10SW-TRIO-RASPOA10SW Conventional
Arm Type

Trio™ 3-Stage Design

Trio™ 3-Stage Design

Trio™ 3-Stage Design

Conventional 2-Stage Design

Adapters Flip UpTruck RoundStandard Flip-Up
Capacity10,000 lbs.10,000 lbs.10,000 lbs.10,000 lbs.
Rise75 1/2" - 81"75" - 85 1/2"74 7/8" - 76 1/8"78 1/4"
Overall Height11' 8 1/2"11' 8 1/2"11' 8 1/2"11' 8 1/2"
Overall Width11' 5 3/8"11' 5 3/8"11' 5 3/8"11' 5 3/8"
Drive-Thru95 1/4"95 1/4"95 1/4"95 1/4"
Front Arm Min/Max21 3/4"- 43 1/2"20 1/2"- 40 3/4"20 1/2"- 40 3/4"24" - 40 3/4"
Rear Arm Min/Max37" - 61"34 1/2"-58 1/4"34 1/2"-58 1/4""40 1/4" - 61"
Min. Adapter Height4 3/4"4 1/8"3 31/32"4 3/4"
Max. Adapter Height10 1/4” 5 3/8"5 1/4"N/A
Min. Bay Size12'x24'12'x24'12'x24'12'x24'
Ceiling Height Min.12' 6"12' 6"12' 6"12' 6"
Motor5 HP5 HP5 HP5 HP
Voltage110v110v110v110v
Time of Full Rise/Decent25 secs./19 secs.25 secs./19 secs.25 secs./19 secs.25 secs./19 secs.
