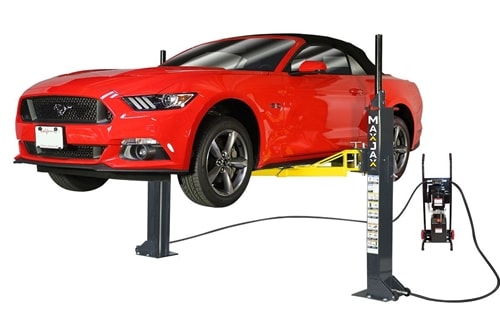

MaxJax M7K
Professional two-post lifting capability in a portable, space-saving design built for home garages, compact service areas and low-ceiling workspaces.
The MaxJax M7K Standard Package combines the accessibility of a traditional two-post automotive lift with a portable design that can be removed when the workspace is needed for something else. With a 7,000-lb. lifting capacity and an overall height of only 89.5 inches, the M7K is especially well suited for garages and service areas where ceiling height and floor space are limited.
Full-size two-post lifts can consume an entire service bay. MaxJax takes a different approach. Its two independent columns give you clear access beneath the vehicle while allowing the lift to be moved out of the way when the work is complete.
The portable layout makes the M7K an excellent solution for maintenance, brake service, exhaust work, drivetrain access, inspections, restoration projects and other applications where unobstructed under-vehicle access is important.
The MaxJax system is engineered around mobility. Built-in wheels allow the columns to be rolled into position for vehicle service and moved aside when the lift is no longer required.
Internally threaded floor anchors help create a repeatable installation point while quick-connect hydraulic fittings simplify connecting and disconnecting the lifting system. When the columns are removed, your garage can return to usable open floor space.
The M7K uses low-pressure Direct-Drive hydraulic cylinders rather than conventional lifting chains or screw mechanisms. A hydraulic flow divider helps distribute pressure between the columns for consistent lifting.
The mobile 110V hydraulic power unit connects to the lift through quick-connect fittings, making the complete system practical for garages where flexibility is just as important as lifting performance.
Provides serious lifting capability for a wide range of passenger cars, SUVs and compatible light-duty vehicles.
An overall column height of just 89.5 inches allows MaxJax to work in spaces where many traditional two-post lifts simply cannot fit.
Built-in wheels allow the columns to be moved away from the service area so valuable garage floor space can be reclaimed.
Integrated arm restraint components help maintain proper positioning during lifting and vehicle service.
Self-sealing hydraulic connections make setup and removal easier while supporting the system's portable design.
Frame-engaging lift arms leave the center of the vehicle open for drivetrain, exhaust, brake and suspension work.
Part Number 5175548
The Standard Package includes the MaxJax M7K portable two-post automotive lift with its standard accessories, giving you the core MaxJax system while allowing additional accessories and adapters to be added as your needs grow.
MaxJax M7K Standard Package — Part No. 5175548
| Capacity | |
|---|---|
| Lifting Capacity | 7,000 lb. |
| Maximum Capacity Per Arm | 1,750 lb. |
| Rise | |
| Maximum Lifting Height with Pad | 47.25" |
| Minimum Lifting Height with Pad | 5.5" |
| Approximate Lifting Time | 45 Seconds |
| Dimensions | |
| Overall Height | 89.5" |
| Overall Width | 105" – 135" |
| Drive-Thru Clearance | 74" – 104" |
| Power | |
| Motor | 2 HP |
| Voltage | 110V / 50-60 Hz / 1 Phase |
| Sound Level | 60 dBA |
| Shipping | |
| Shipping Dimensions | 35" × 68" × 39" |
| Shipping Weight | 980 lb. |
| Shipping Method | LTL Freight |
| Offload Requirement | Forklift |
Get the under-vehicle access of a two-post lift without permanently sacrificing your garage or service bay. The MaxJax M7K gives you 7,000 pounds of lifting capability in a compact system designed to move when you need your floor space back.
