LaunchTech X-613 Advanced Wheel Aligner with Throttle V

LaunchTech
$
Product Code: 702020112TF

X-613 Advanced Wheel Aligner

Part Number: 702020112TF

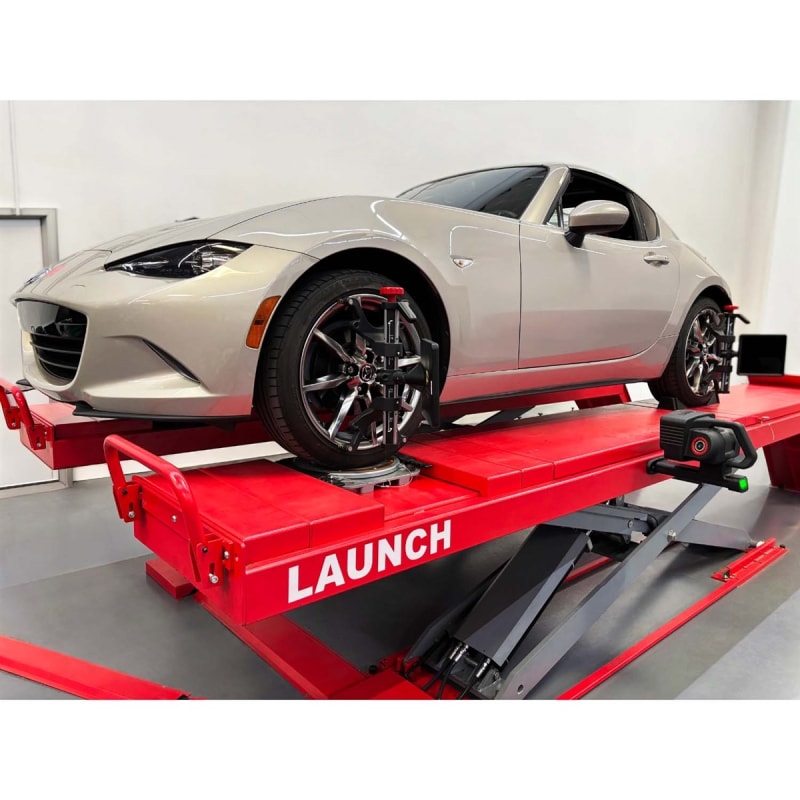

The Launch X-613 is a compact, portable 3D wheel aligner designed for drive-on style lifts without the need of a traditional setup. Its wireless measurement units and clamps deliver fast, precise four-wheel alignment. Quick to deploy, it works in any workshop without installation, wiring, or calibration.

Features

Durable Clamps

Traditional wheel clamps or tire hugger options.

Fast Integration

Seamlessly links to the Throttle V.

Secure Mounting

Strong magnets attach to any lift

Accurate Reporting

Precision results via QR code, email, or WIFI printing.

Easy Setup

No wiring or permanent installation.

Organized Storage

Wall mounts for units and targets.

Complete Kit

Includes turntables, wheel chock, steering wheel holder, and brake depressor.

Specs

Camber Angle

±10°

Caster Angle

±20°

Kingpin Inclination

±20°

Tire Diameter (3-Point Clamp)

470–1100 mm (18.5–43.3 in)

Toe Angle

±20°

Track Width

1290–1900 mm (50.8–74.8 in)

WheelBase

1940–4600 mm (76.4–181.1 in)

Wheel Diameter (4-Point Clamp)

275–640 mm (10.8–25.2 in)

Package Contents

  • Measuring Unit (L)
  • Measure Unit (R)
  • Power Adapter (US)
  • Clamp Targets (FL, FR, RL, RR)
  • Installation Positioning Sticker (4 pcs)
  • Measuring Unit Bracket (2 pcs)
  • Soft Cloth
  • User Manual
  • Quick Reference Guide
  • Packing List
  • Password Envelope
  • 3-Point Tire Clamps (4 pcs)
  • 3-Point Clamp Brackets (2 pcs)
  • 4-Point Wheel Clamps (4 pcs)
  • 4-Point Clamp Brackets (2 pcs)
  • Wheel Aligner Turntable and Block
  • Steering Wheel Holder Device
  • Brake Pedal Depressor Device

Download PDF Manual
