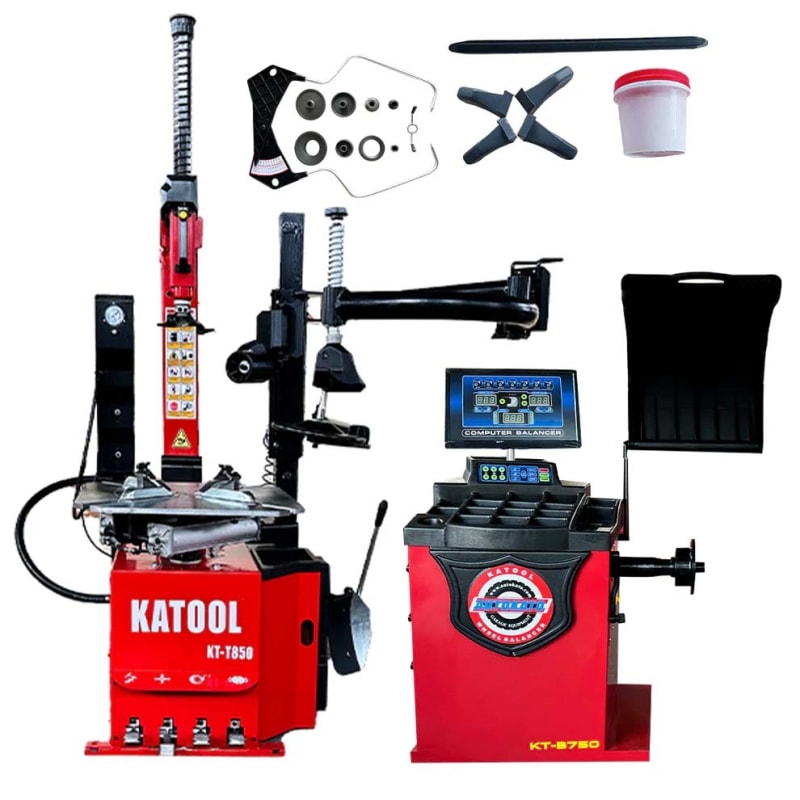

KATOOL KT-T850 and KT-B750
Tire Changer Machine KT-T850:
| Max Wheel Diameter : | 47"/1200mm |
| Max Wheel Width : | 15"/380mm |
| Outside Clamp: | 14"-26" |
| Inside Clamp : | 16"-28" |
| Power Supply: | 110V 1PH |
| Motor Power: | 2.0HP/1.5KW |
| Rotation Speed : | 6.8r/min |
| Air Pressure : | 0.8-1.0Mpa(116-145psi) |
| Net weight : | 340KG / 750 lbs |
-- Alloy steel jaw, interface carburization treatment of 0.8-1.1mm deepness, whole quenching process, making the jaw inside more tenacity and outside more hard, and take the jaw cover for protect rim.
-- The mounting head is made by stainless, solution treatment and interface polishing, the shape conforms to the engineering principle ,and take with plastic cover for protect rim.
-- With high quality spade cover, effective prevent damage rim.
-- Pull type pedal control system, convenience for changing and maintenance.
-- Pull type pedal control system, convenience for changing and maintenance.
-- Top level motor and pure copper winding, fast heat dissipation, low defect rate and longer using life.
-- With high quality filter, reliable drop oil, effective filter pressure air, and make more longer using life for pneumatic system.
-- For North America region used 110V / 1ph / 2.0HP motor, more strong power and high efficiency working
-- Assist arms
-- Bead blast seater
-- φ200mm Aluminum bead breaker cylinder
Car Wheel Balancer KT-B750:
| Rim Diameter: | <30" |
| Wheel Width: | 3"-12" |
| Wheel Diameter: | <880mm |
| Balancing Speed: | 180rpm |
| Power Supply: | 110V 1PH |
| Motor Power: | 0.25KW |
| Rim Center Hole Dia.: | <135mm |
| Wheel Weight: | <65KG |
| Balancing Accuracy: | ±1g |
| Measuring Time: | 7S |
-Automatic measurement ruler for auto input A and D values.
-The body use 3mm thickness steel, high strength, solid welding, few vibration.
-All-in-one pressure sensor support design, bottom board thickness 8mm,side board thickness 8mm, that insure the sensor working stable and high precision.
-Top level motor and pure copper winding, more power, fast heat dissipation, low defect rate and longer using life.
-The φ36mm shaft thread is by quenching treatment, high strength.
-Top level motor and pure copper winding, fast heat dissipation, low defect rate and longer using life.
-The computer board adopt advanced welding technology, moisture proof, dustproof and anti-static electricity, more longer life.
-Various balance mode, according different rim for different balance mode, make the balance effect more precision.
-Built-in fault diagnosis and self calibration program that double side calibration ,No memory parameters, operation more easy.
-Unit selection(Ounce/Gram, MM/Inch).
-High quality integration power board, working stable and reliable.
-Wheel guard for optional.
-Longer shaft for more width wheels
