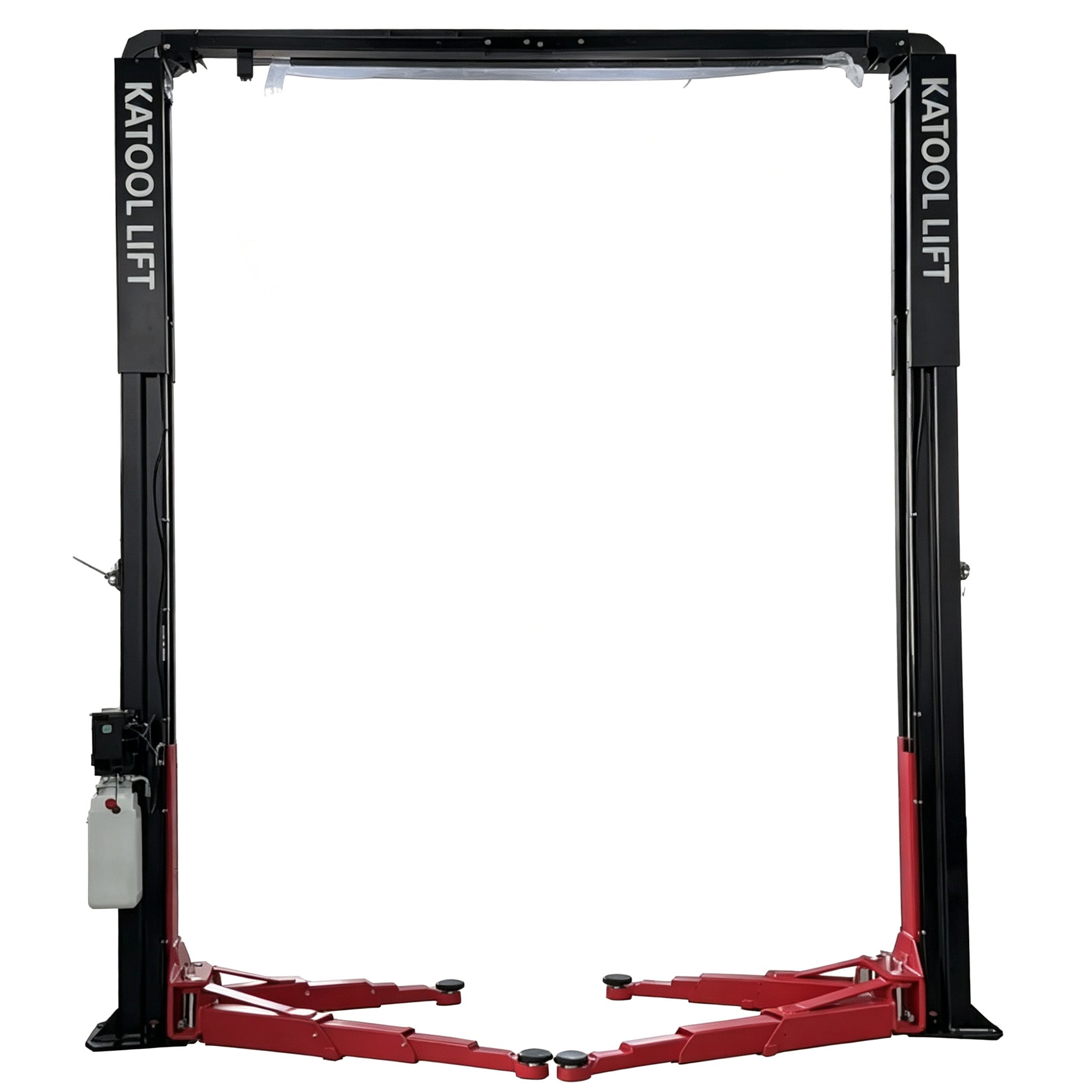

KATOOL KT-ZL110M 10,000 LB Overhead Two-Post Car Lift product view

KATOOL KT-ZL110M: vehicle lift

KATOOL KT-ZL110M 10,000 LB Overhead Two-Post Car Lift

KATOOL
$
Product Code: KT-ZL110M

KATOOL Professional Shop Equipment

KATOOL KT-ZL110M 10,000 LB Overhead Two-Post Car Lift

Model: KT-ZL110M

Product Overview

The KATOOL KT-ZL110M 10,000 LB Overhead Two-Post Car Lift provides a dedicated lifting station for compatible vehicles. Use it for the storage or service applications allowed by its design and current manufacturer instructions. Plan the bay around the listed footprint, lift height, power supply, and vehicle clearance.

Supplier-Listed Features

  • KATOOL KT-ZL110M
  • 10,000 lb lifting capacity

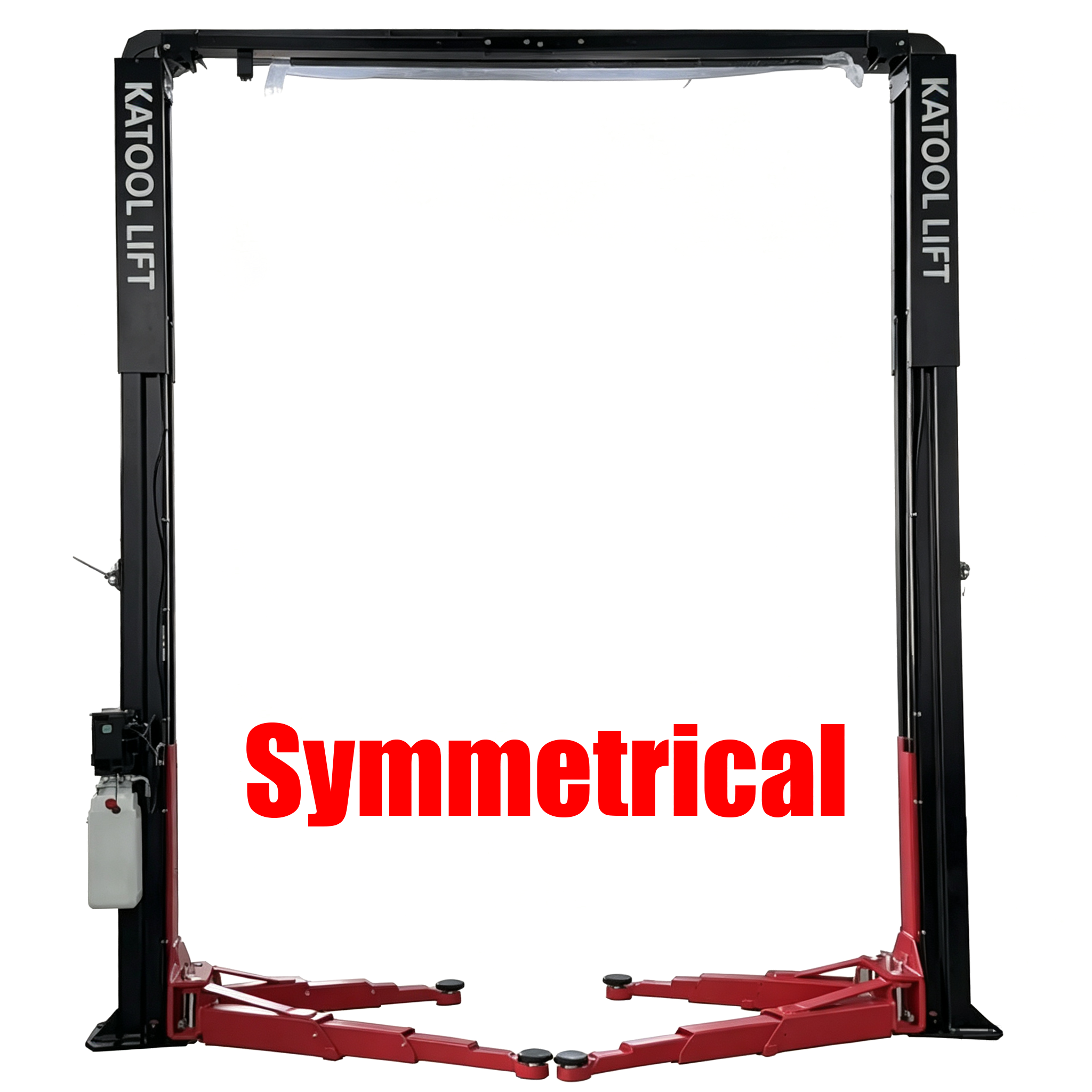

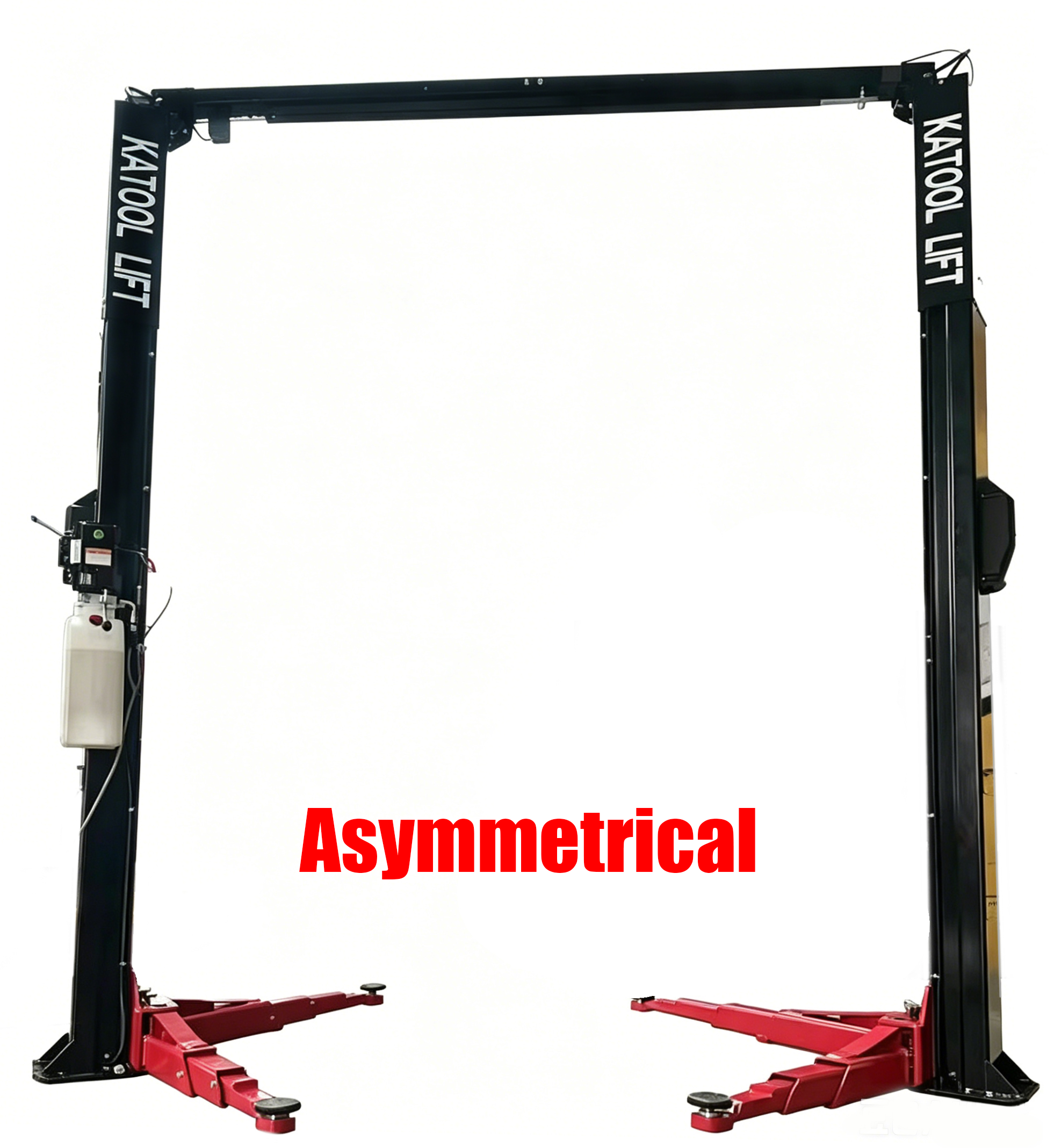

  • Symmetrical or Asymmetrical Setup
  • Asymmetric 2-post clear-floor design
  • Wide pickup range for cars, SUVs, and light trucks
  • Low-profile arms for low-clearance vehicles and EVs
  • Adjustable lift adapters for easier access to factory lifting points
  • Direct-drive hydraulic lifting system

Shop Applications

  • Routine vehicle inspections and maintenance
  • Access for appropriate under-vehicle service
  • Professional repair bays and equipped garages

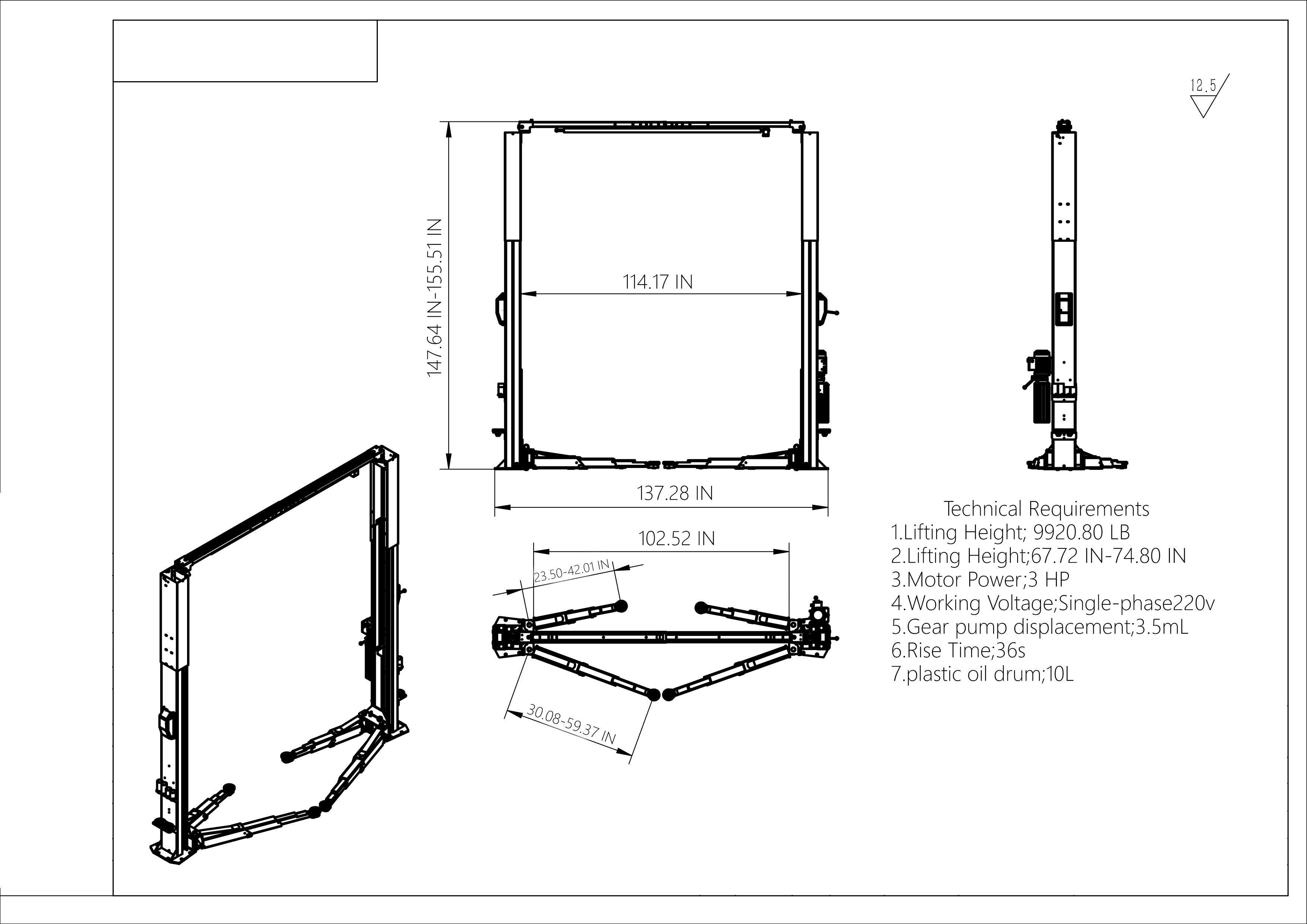

Specifications

ModelKT-ZL110M
Lift TypeOverhead Two-Post Lift
Lifting Capacity10,000 lbs
Maximum Lifting Height67.72–74.80 in
Overall Height147.64–155.51 in
Overall Width137.28 in
Inside Column Width114.17 in
Drive-Through Width102.52 in
Front Arm Reach23.50–42.01 in
Rear Arm Reach30.08–59.37 in
Motor Power3 HP
Working Voltage220V, Single Phase
Rise Time36 seconds
Gear Pump Displacement3.5 mL
Hydraulic Reservoir10 L
Shipping Dimensions (L × W × H)111.9 × 18.3 × 42.5 in
Shipping Weight1,735 lbs

Fit and Ordering Information

Verify vehicle fit and weight distribution, ceiling and floor space, concrete and anchoring, electrical supply, and the current installation manual before ordering or installing. Supplier specifications and package contents can vary by configuration; use the current manual for installation and operation.

Product Gallery

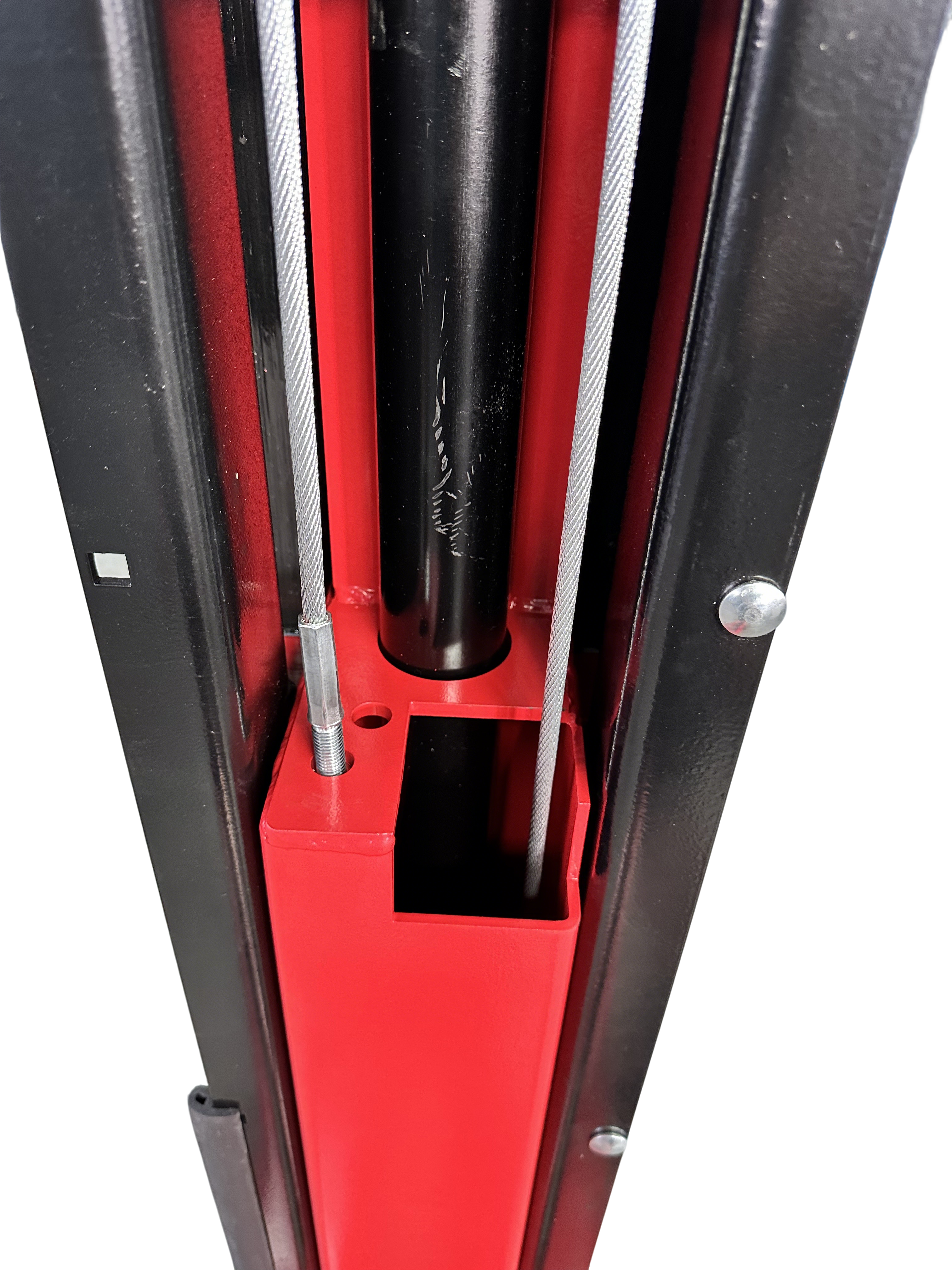

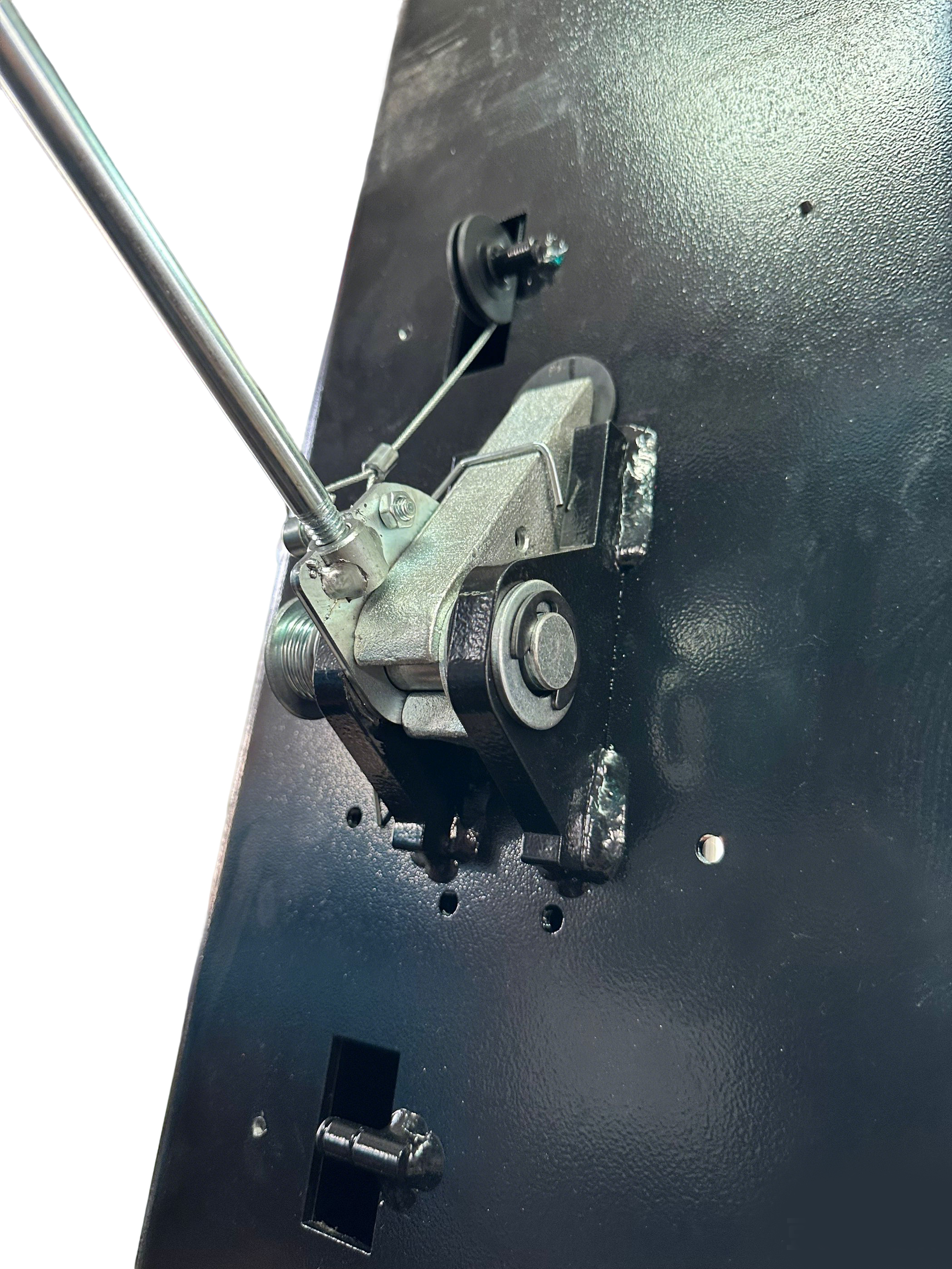

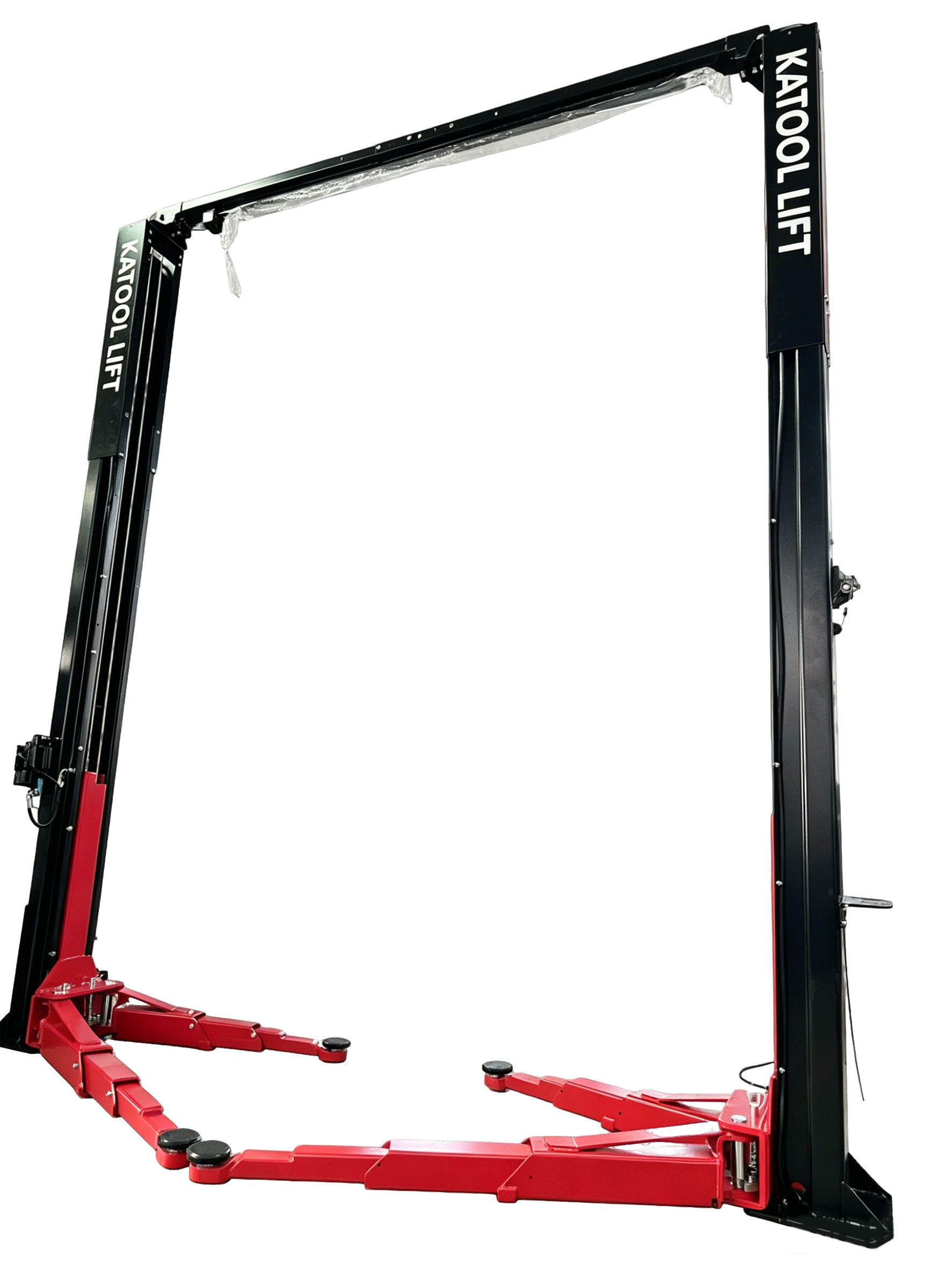

KATOOL KT-ZL110M 10,000 LB Overhead Two-Post Car Lift product image 1KATOOL KT-ZL110M 10,000 LB Overhead Two-Post Car Lift product image 2KATOOL KT-ZL110M 10,000 LB Overhead Two-Post Car Lift product image 3KATOOL KT-ZL110M 10,000 LB Overhead Two-Post Car Lift product image 4KATOOL KT-ZL110M 10,000 LB Overhead Two-Post Car Lift product image 5KATOOL KT-ZL110M 10,000 LB Overhead Two-Post Car Lift product image 6KATOOL KT-ZL110M 10,000 LB Overhead Two-Post Car Lift product image 7KATOOL KT-ZL110M 10,000 LB Overhead Two-Post Car Lift product image 8KATOOL KT-ZL110M 10,000 LB Overhead Two-Post Car Lift product image 9KATOOL KT-ZL110M 10,000 LB Overhead Two-Post Car Lift product image 10KATOOL KT-ZL110M 10,000 LB Overhead Two-Post Car Lift product image 11KATOOL KT-ZL110M 10,000 LB Overhead Two-Post Car Lift product image 12KATOOL KT-ZL110M 10,000 LB Overhead Two-Post Car Lift product image 13KATOOL KT-ZL110M 10,000 LB Overhead Two-Post Car Lift product image 14KATOOL KT-ZL110M 10,000 LB Overhead Two-Post Car Lift product image 15
