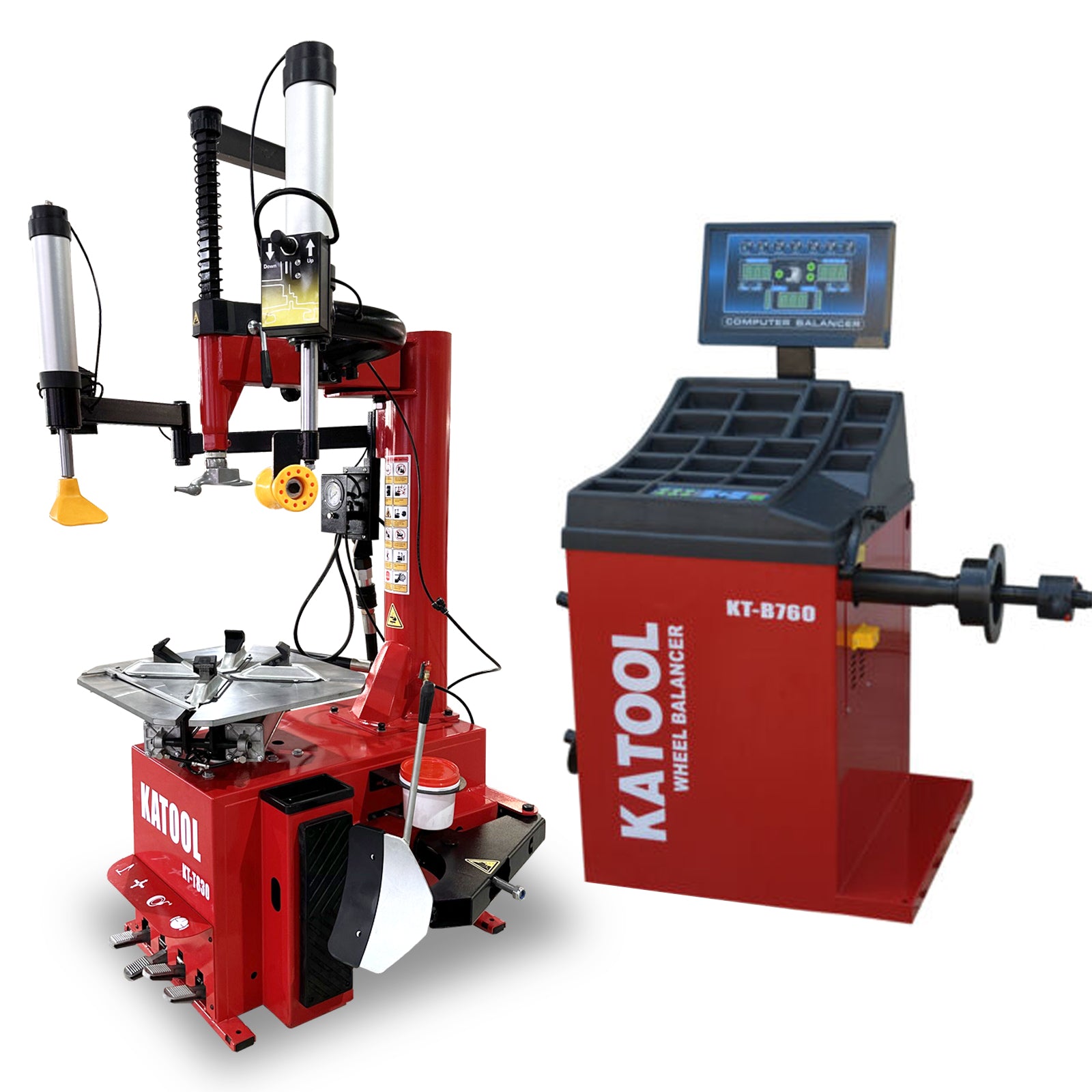

KATOOL KT-T830 Tire Changer & KT-B760 Wheel Balancer Combo
KATOOL Tire Service Equipment
A tire-changing and wheel-balancing package for eligible passenger-car and light-truck wheels.
Use the KT-T830 to break the bead and mount or demount an eligible tire, then use the KT-B760 to measure and correct imbalance on the complete wheel assembly. The pair is designed for automotive repair shops, tire service centers and garages serving passenger cars, SUVs and light trucks within each machine's stated limits. The KT-T830's assist arm helps manage more demanding tire sidewalls, while the balancer provides a separate station for finishing the job.
| Maximum wheel diameter | 41 in (1,040 mm) |
|---|---|
| Maximum wheel width | 15 in (380 mm) |
| Outside clamping | 12–22 in |
| Inside clamping | 14–24 in |
| Power supply | 110V, single phase |
| Motor power | 2 HP (1.5 kW) |
| Turntable speed | 6.8 rpm |
| Operating air pressure | 116–145 psi (0.8–1.0 MPa) |
| Net weight | 529 lb (240 kg) |
The KT-B760 is the balancing station in this package. KATOOL lists an automatic ruler for entering distance and diameter values, multiple balancing modes and a computerized display. Its individual product page lists ±1 g accuracy and an approximately seven-second measuring time. Confirm the wheel's overall diameter, weight and center-hole fit before mounting it on the balancer.
| Listed rim diameter | Less than 30 in |
|---|---|
| Wheel width | 3–12 in |
| Maximum assembled wheel diameter | Less than 34.64 in (880 mm) |
| Maximum wheel weight | Less than 143 lb (65 kg) |
| Balancing speed | 180 rpm |
| Balancing accuracy | ±1 g |
| Measuring time | Approximately 7 seconds |
| Power supply | 110V, single phase |
| Motor power | 0.25 kW |
| Rim center-hole diameter | Less than 5.31 in (135 mm) |
The supplier's combo listing and its individual machine listings publish different capacity figures. The tables above use the dedicated KT-T830 and KT-B760 model pages. Verify the actual nameplates and current specification sheets if a wheel is near a limit.

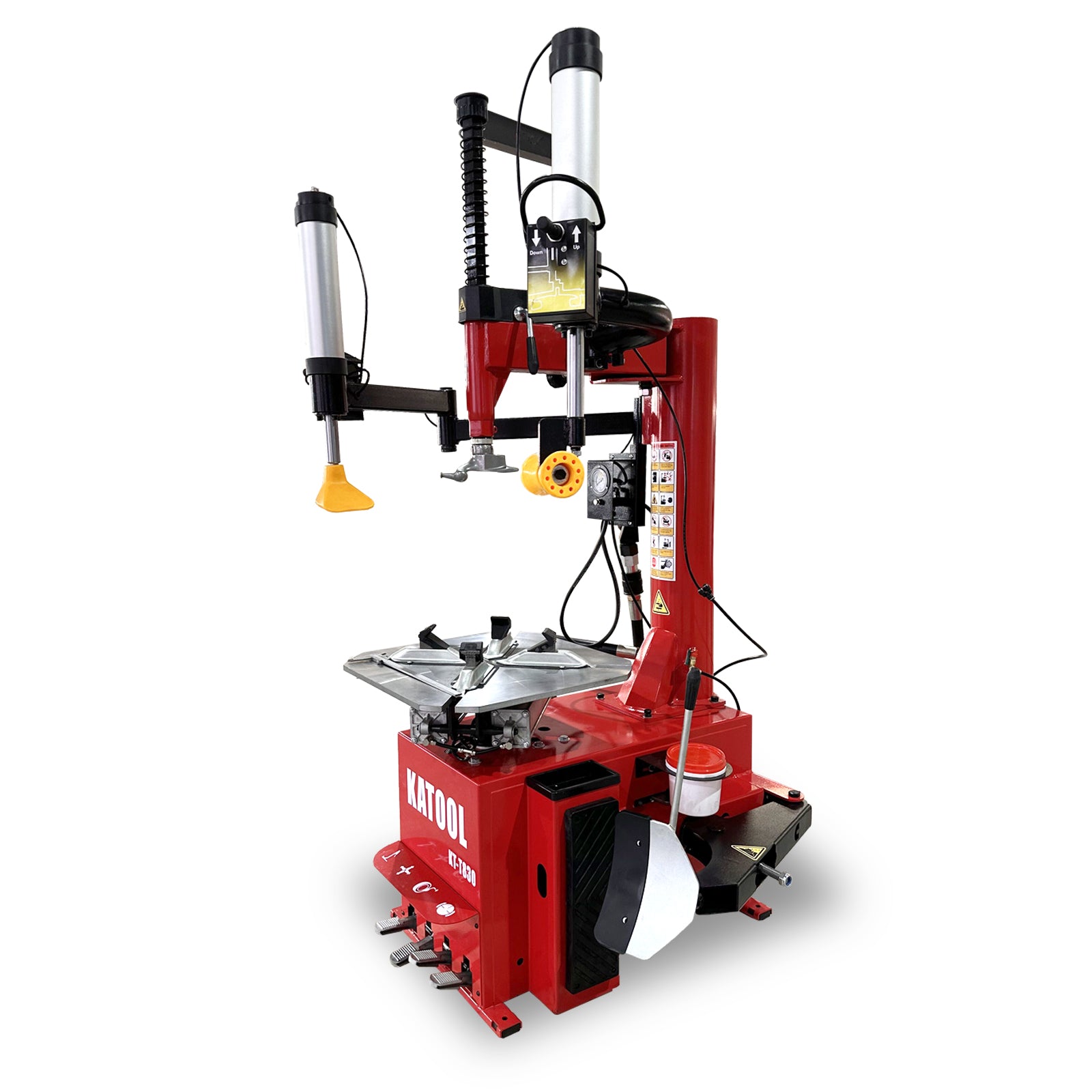

KT-T830 tire changer with assist arm

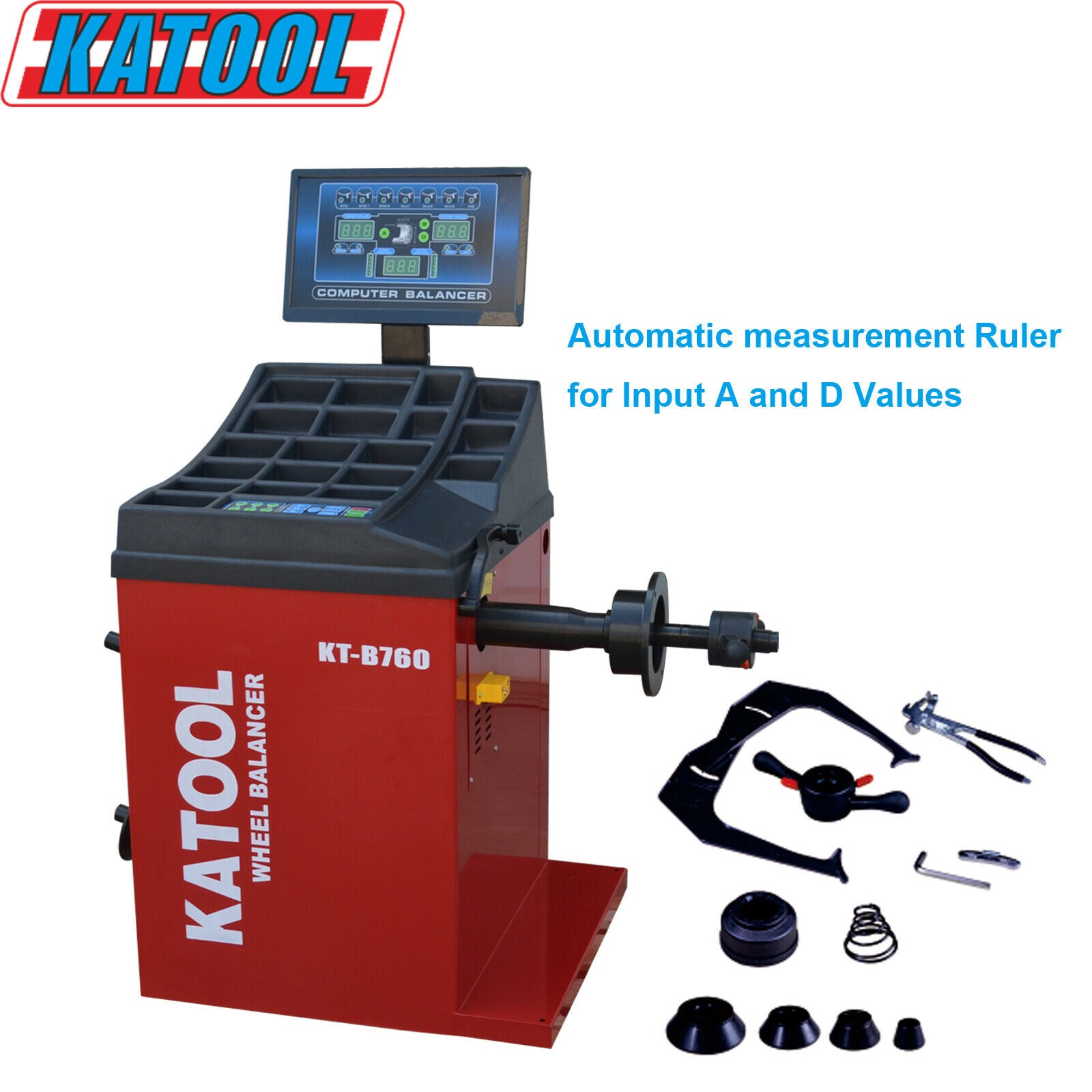

KT-B760 balancer and pictured accessories

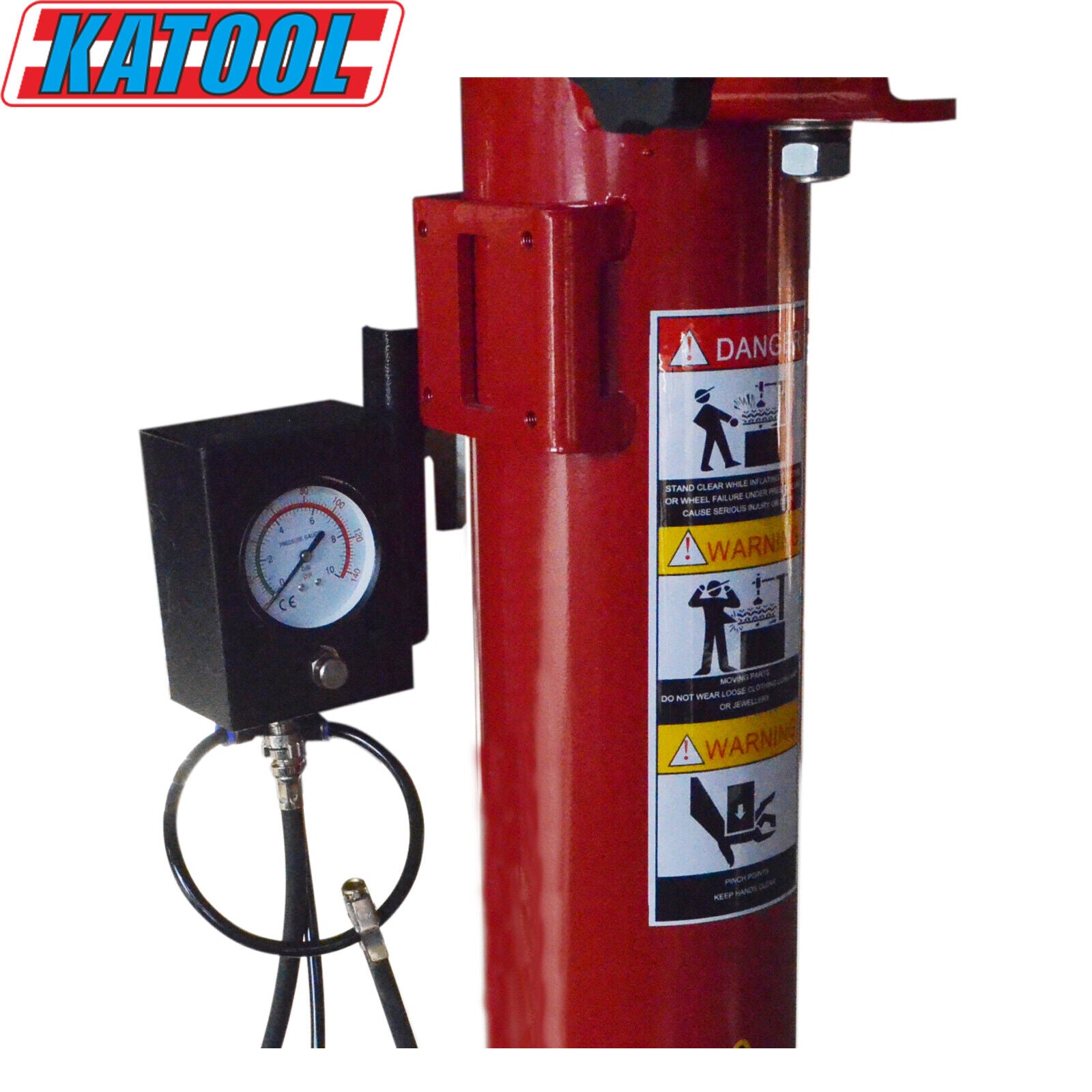

Air regulator and tower detail

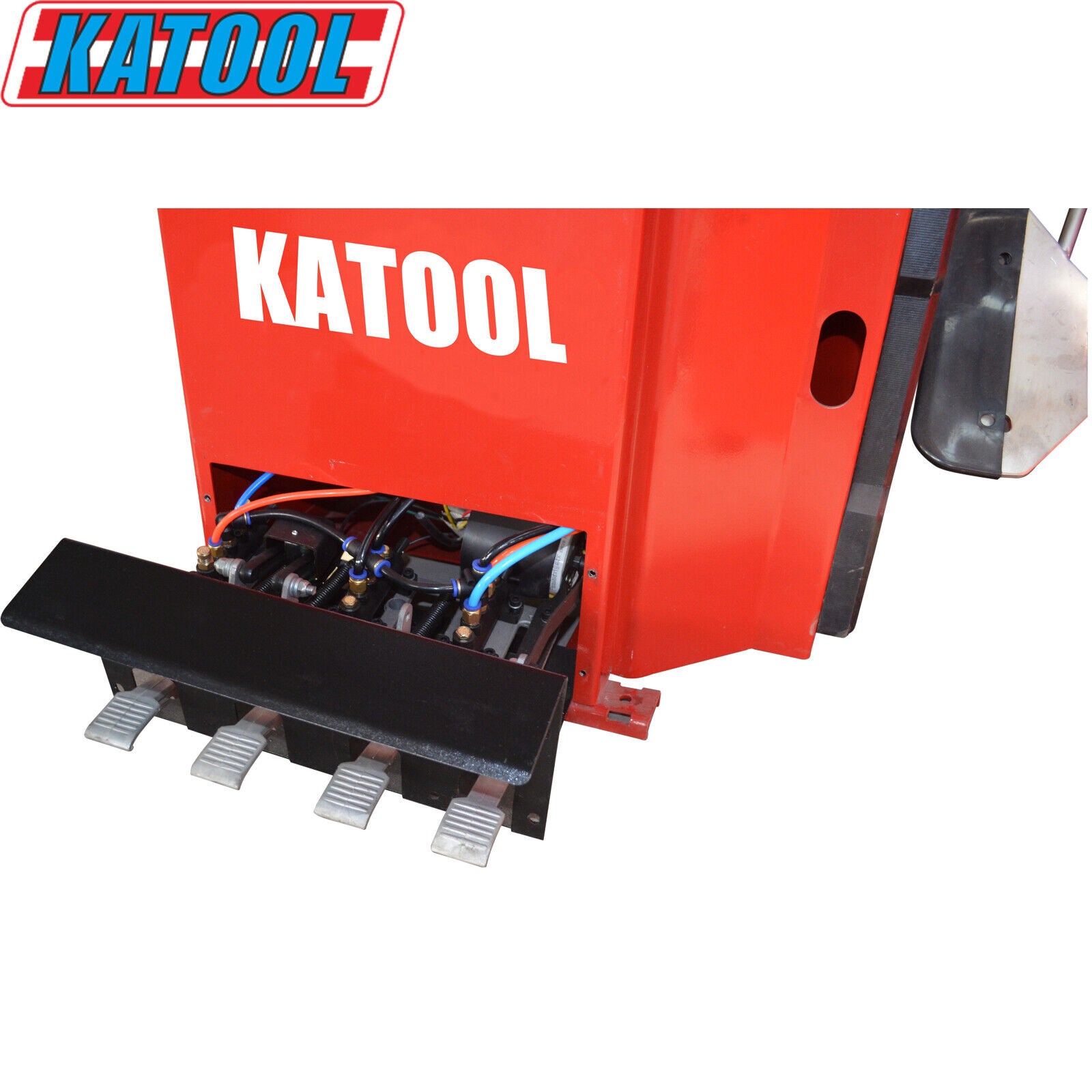

Foot pedal controls
KATOOL offers another purchase option pairing this combo with the KT-MC1 and KT-MC2 motorcycle adapter kit. The adapter kit is not part of the standard two-machine combo; describe it as included only if your selected product configuration includes it.

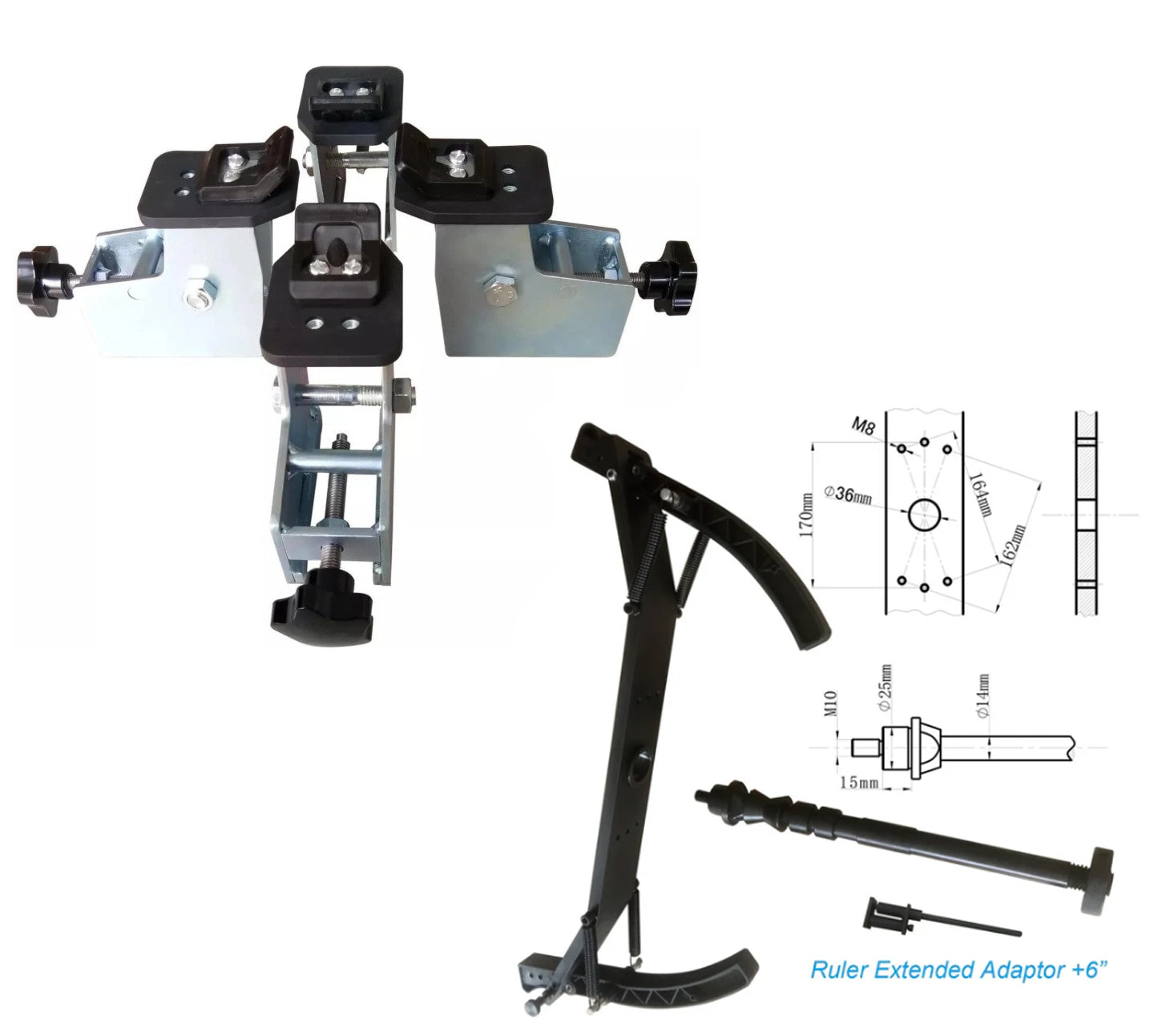

Optional motorcycle adapter kit shown separately
Shop workflow: Change the tire on the KT-T830, then balance the compatible assembled wheel on the KT-B760.
