Katool KT-M150D 15,000 lbs Two Post Lift

Built for service bays working with larger vehicles, the KATOOL KT-M150D carries a 15,000 lb rated capacity. Its direct-drive system and symmetric two post layout support access for underbody maintenance and repair. The supplier lists a 72.83 in maximum lifting height, 116 in drive-through clearance and a single-point safety lock release.

Built for demanding shop work

• 15,000 lb capacity: Lift compatible vehicles only within the rated total load, individual arm limits and approved pickup points.
• Direct-drive cylinders: The supplier describes hydraulic direct drive in place of a traditional chain-driven lifting system.
• Symmetric arms: Adjustable arm positioning supports vehicle setup for approved lift points.

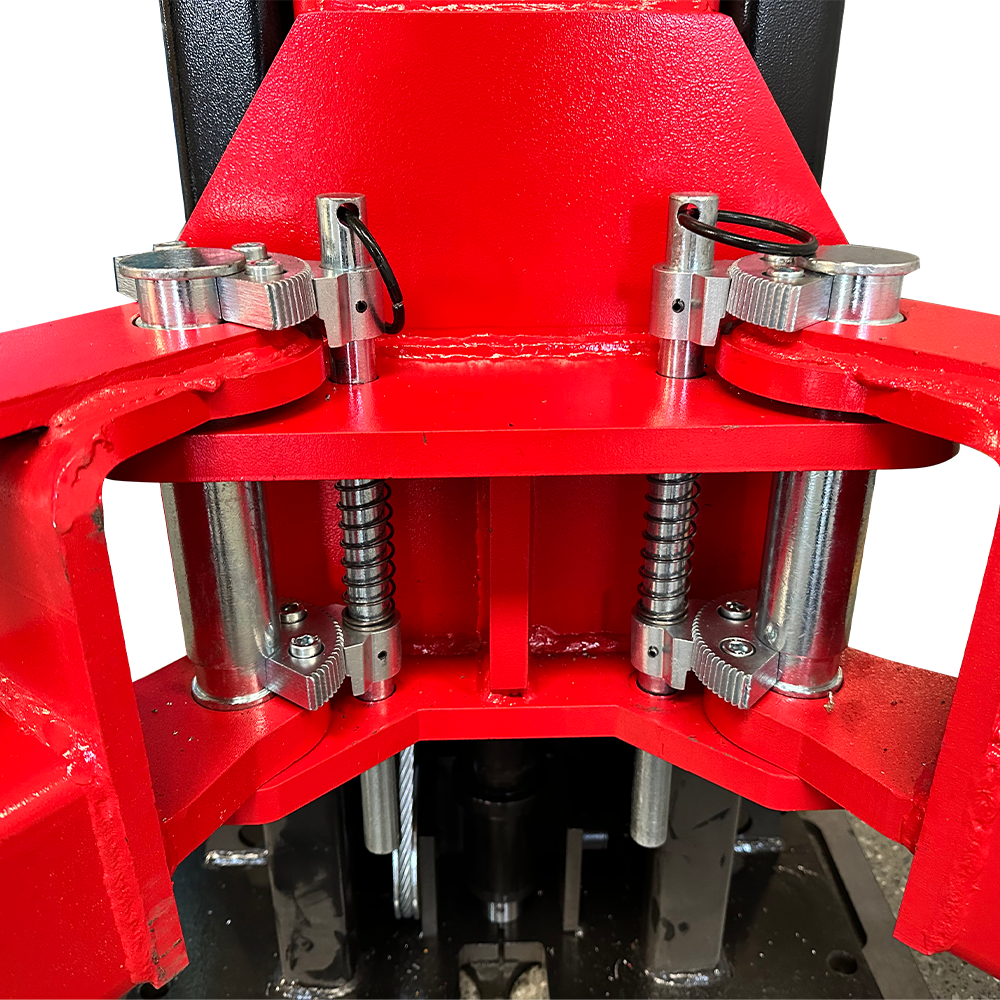

• Single-point safety lock release: Centralized control for releasing the mechanical locks, as described by the supplier.
• Commercial construction: Q235 / Q245 structural steel is listed for the frame and columns.
• Underbody access: Maximum lifting height is listed as 72.83 inches for maintenance and repair beneath supported vehicles.

KT-M150D specifications

Installation planning: Check ceiling clearance, vehicle dimensions, power phase/circuit, floor slab and anchors against the supplied lift's installation manual and a qualified installer. The supplier lists a 5.9 in, 3,000 psi concrete figure; site conditions and anchoring instructions determine the actual installation requirements. Confirm included accessories and per-arm ratings before ordering.

Lift gallery and details

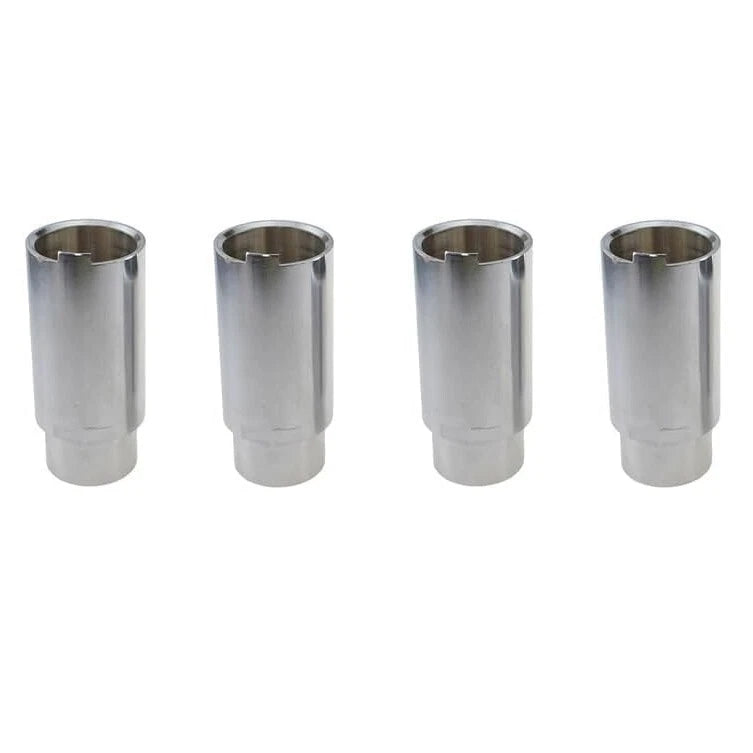

Support adapters and lift pads

The gallery also shows metal extension sleeves and vehicle-contact pads. Confirm the sizes and quantities included with the KT-M150D configuration being offered.
