KATOOL KT-H105: vehicle lift
KATOOL Professional Shop Equipment
Model: KT-H105

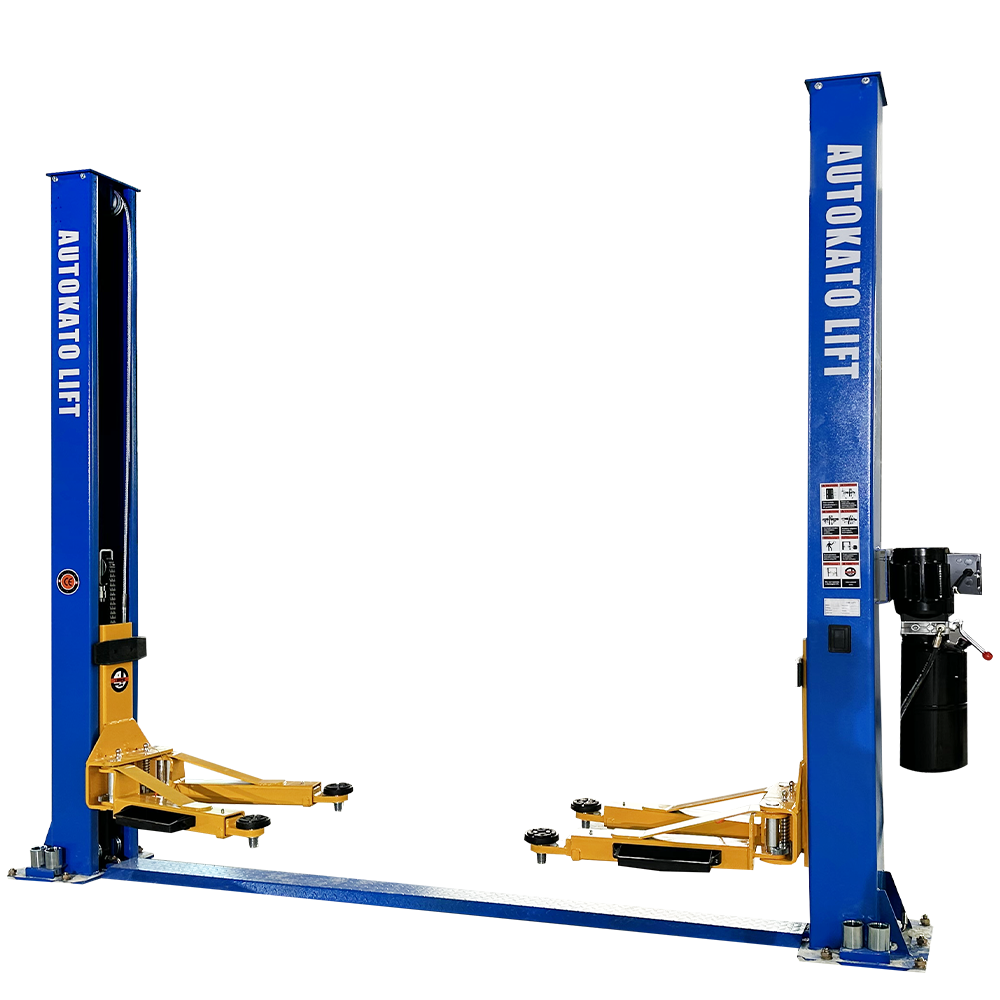

The Katool KT-H105 10,000 lb Two Post Vehicle Lift | Base Plate Car Lift provides a dedicated lifting station for compatible vehicles. Use it for the storage or service applications allowed by its design and current manufacturer instructions. Plan the bay around the listed footprint, lift height, power supply, and vehicle clearance.
| Lifting Capacity | 10,000 lbs (4,500 kg) |
|---|---|
| Max. Lifting Height | 70.8" (1800 mm) |
| Minimum Height | 3.9" (100 mm) |
| Overall Height | 110.9" (2818 mm) |
| Overall Width | 140.4" (3565 mm) |
| Outside Column Width | 124.8" (3170 mm) |
| Inside Column Width | 110.2" (2800 mm) |
| Drive-Thru Clearance | 98.4" (2500 mm) |
| Front Arm Reach (Min) | 29.5" (750 mm) – 2 stages |
| Front Arm Reach (Max) | 46" (1170 mm) – 2 stages |
| Rear Arm Reach (Min) | 35.4" (900 mm) – 2 stages |
| Rear Arm Reach (Max) | 58.3" (1480 mm) – 2 stages |

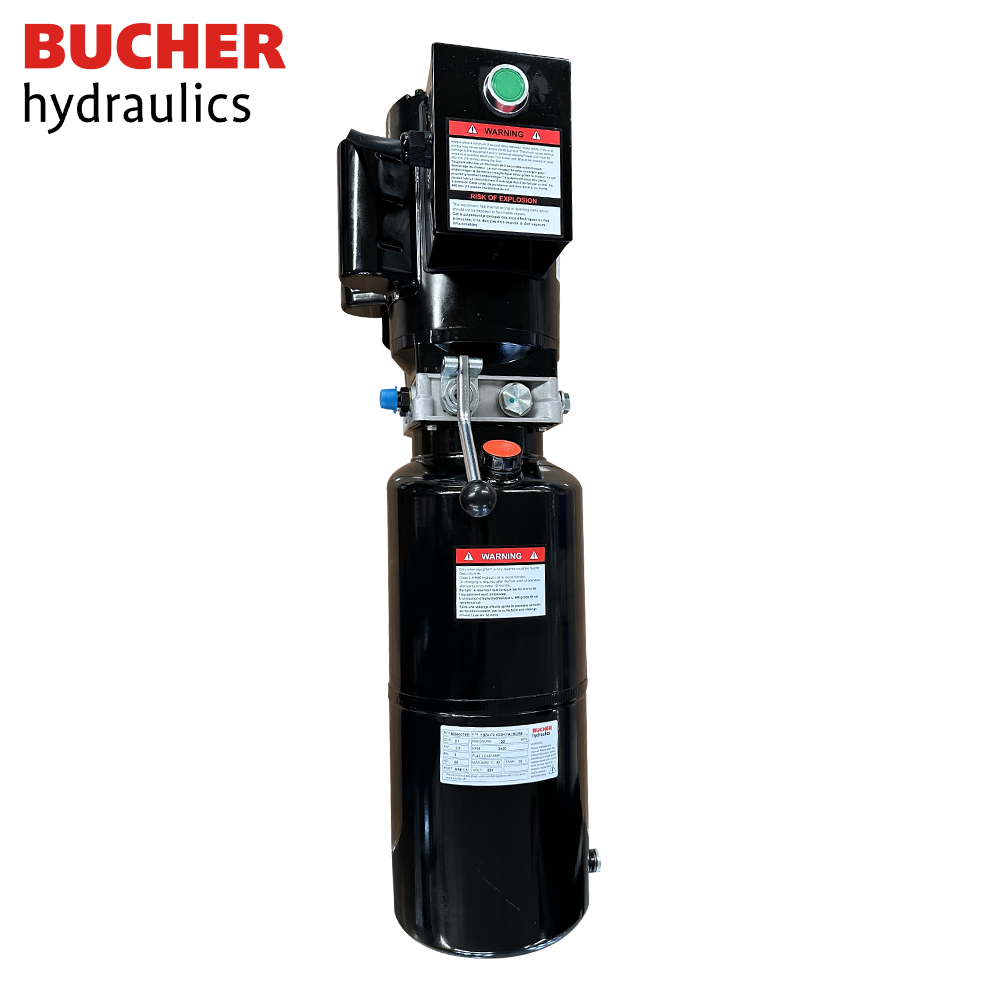

| Motor | 220VAC / 60Hz / 1PH / 2.2KW |
| Net Weight | 1,257 lbs (570 kg) |
Verify vehicle fit and weight distribution, ceiling and floor space, concrete and anchoring, electrical supply, and the current installation manual before ordering or installing. Supplier specifications and package contents can vary by configuration; use the current manual for installation and operation.
