Name: Katool KT-B790 Heavy Duty Truck Wheel Balancer
Brand: KATOOL
SKU: KT-B790
Price: 2390.00 USD
Availability: InStock

Katool KT-B790 Heavy Duty Truck Wheel Balancer

KATOOL

Product Code: KT-B790

Qty:

KATOOL COMMERCIAL TIRE SERVICE

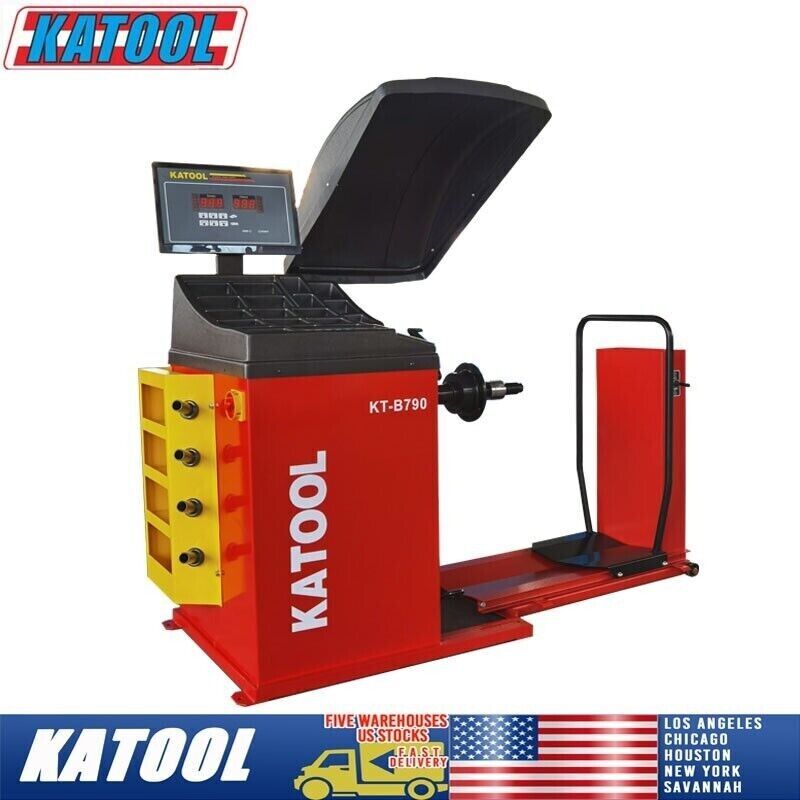

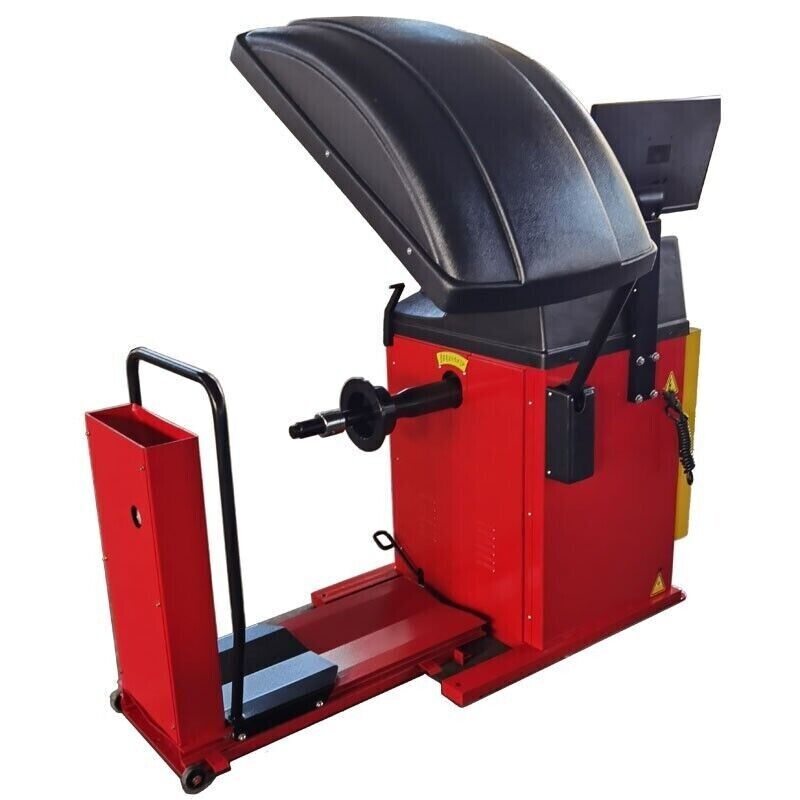

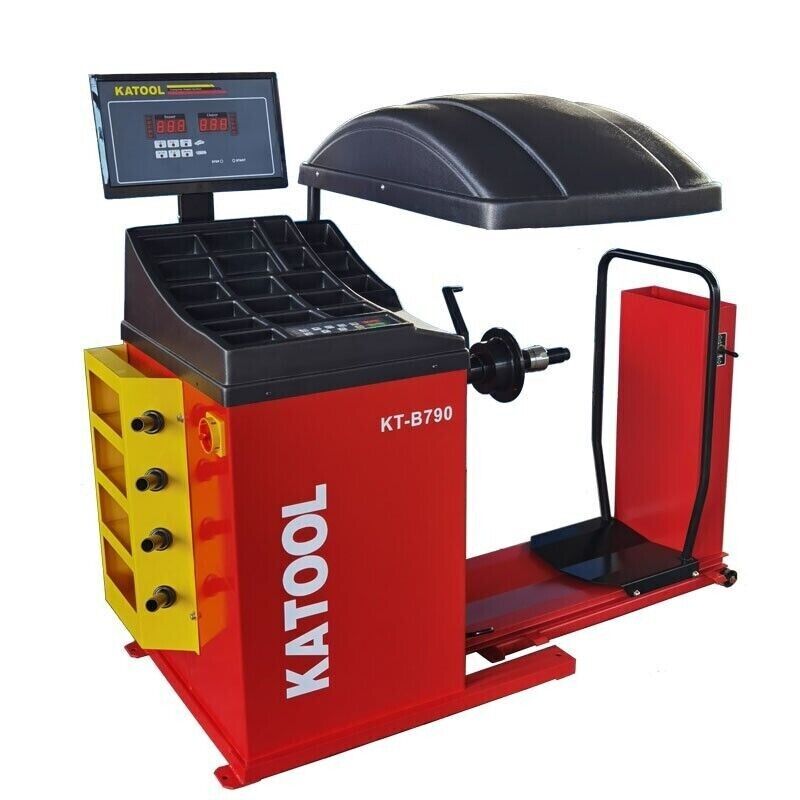

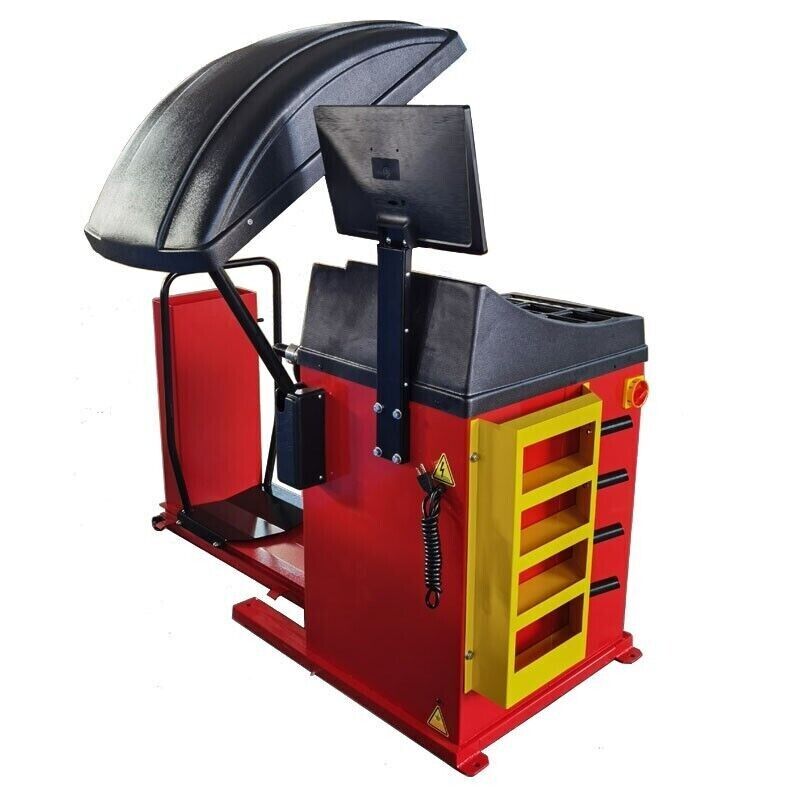

KT-B790 Heavy Duty Truck Wheel Balancer

A commercial wheel balancer for truck, bus and fleet service, with a listed 396 lb maximum wheel weight.

Balance larger wheel assemblies in a commercial tire service bay with the KATOOL KT-B790. The supplier lists a 12–26 inch rim diameter range, 1.5–20 inch rim width range and wheel assemblies up to 56 inches in overall diameter. With a listed 396 lb wheel capacity, the machine is intended for demanding truck and fleet work.

At a glance: 12–26 in rim diameter • 1.5–20 in rim width • 56 in maximum overall wheel diameter • 396 lb maximum wheel weight • approximately 8–10 sec measurement time.

Built for heavy vehicle wheel service

Commercial wheel capacity: Accepts wheel assemblies up to the supplier's listed 396 lb limit.
Broad fit range: Covers 12–26 inch rims and rim widths from 1.5–20 inches within the machine's other fit limits.
Quick measurement: The supplier lists approximately 8–10 seconds per wheel.
Heavy duty construction: Steel frame suited to commercial tire service settings.
Shop applications: A fit for tire shops, fleet maintenance facilities and service departments handling qualifying truck and bus wheels.

KT-B790 specifications

Specification	Supplier listing
Model	KT-B790
Rim diameter range	12–26 in
Rim width range	1.5–20 in
Maximum overall wheel diameter	56 in (1,422 mm)
Maximum wheel weight	396 lb (180 kg)
Balancing speed	Approximately 180 rpm
Measurement time	Approximately 8–10 seconds per wheel
Power supply	220 V single phase or 220 V three phase; varies by configuration
Motor power	Approximately 0.75 kW
Listed noise level	Less than 70 dB

Before ordering: Confirm the phase, electrical requirements, supplied mounting accessories and wheel fit for the specific KT-B790 configuration being shipped. The supplier's “580–650 lb wheel weight” entry appears to describe the machine's own weight rather than its 396 lb wheel capacity, so it is omitted here pending confirmation.
