KATOOL KT-AV533: wheel alignment equipment
KATOOL Professional Shop Equipment
Model: KT-AV533

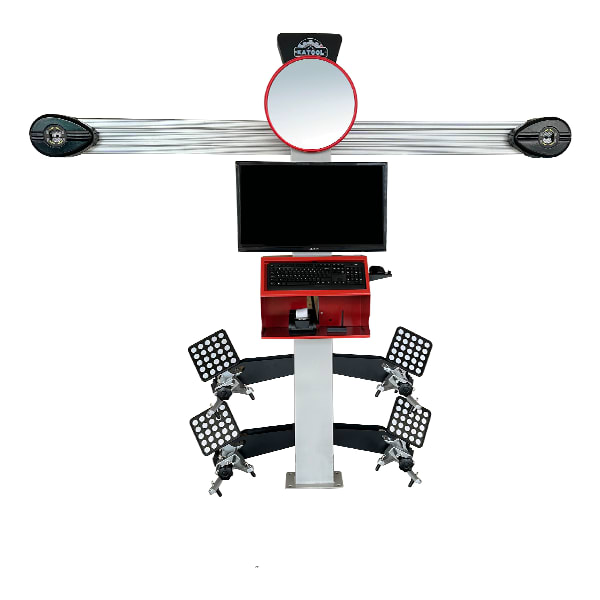

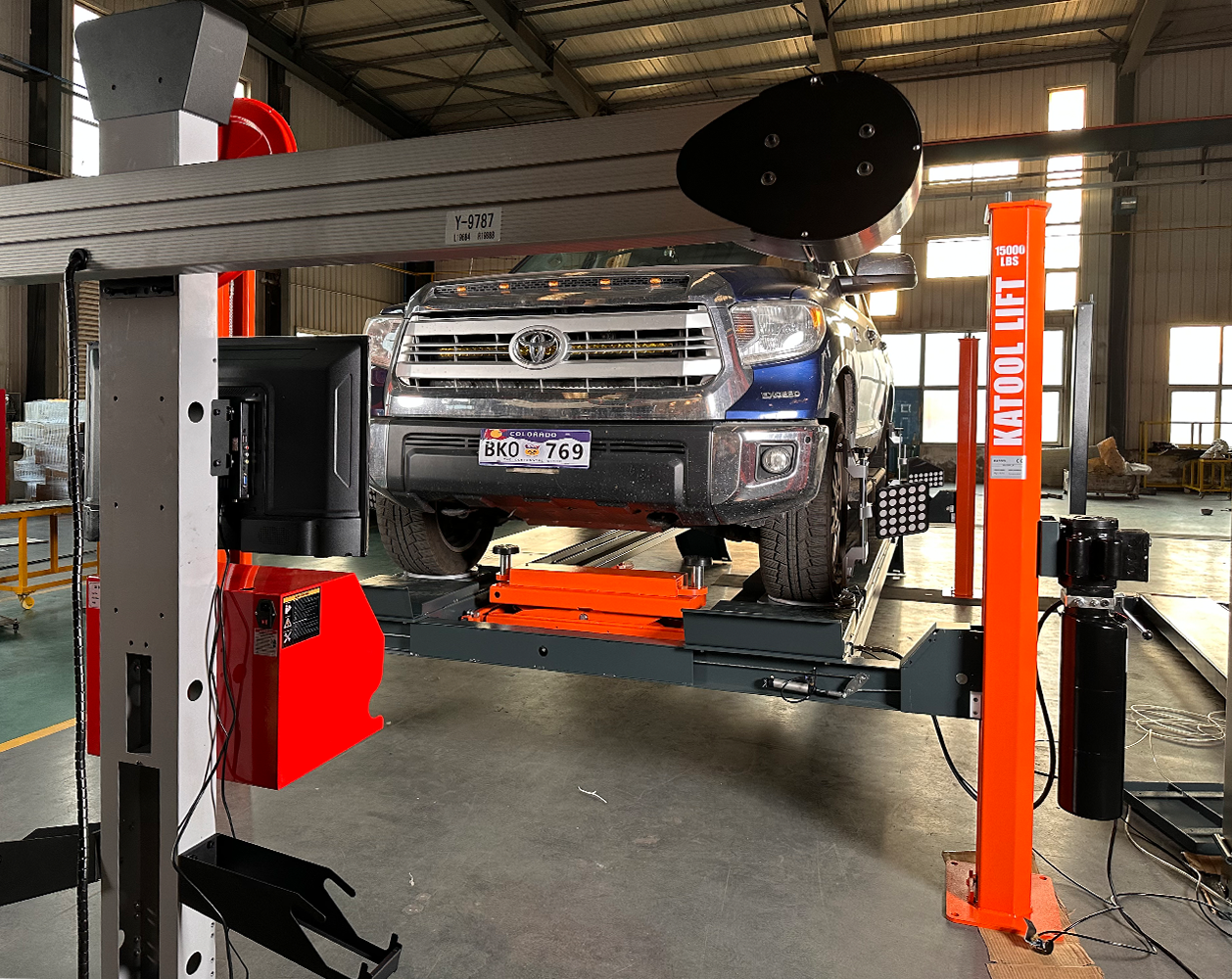

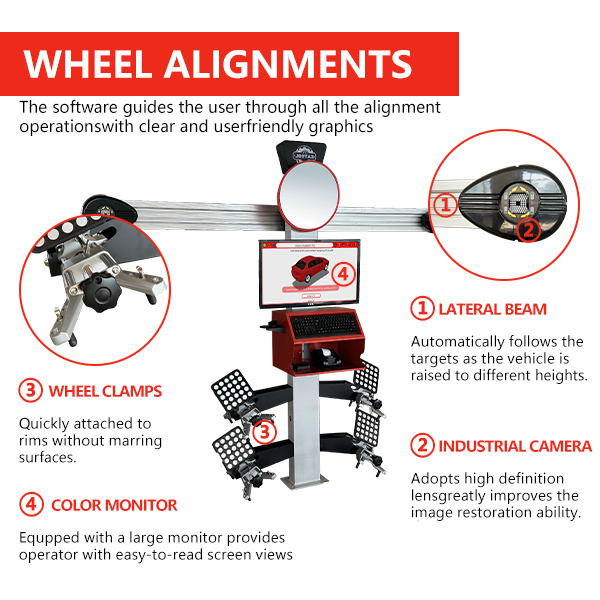

The Katool KT-AV533 3D Wheel Alignment Machine supports professional wheel-alignment work in an appropriately equipped service bay. Its suitability depends on the measurement equipment and accessories supplied with this specific model. Review the manufacturer specifications before matching it with an alignment lift or other shop equipment.
| Model | KT-AV533 |
|---|---|
| Brand | Katool Automotive Equipment |
| Product Type | 3D Wheel Alignment Machine |
| Total Front Toe / Beam | ±6° range, ±4? accuracy |
| Single Wheel Toe / Beam | ±3° range, ±2? accuracy |
| Wheel Camber | ±10° range, ±2? accuracy |
| Kingpin Rear Angle | ±15° range, ±2? accuracy |
| Kingpin Inclination | ±20° range, ±6? accuracy |
| Thrust Angle | ±6° range, ±2? accuracy |
| Axis Angle | ±6° range, ±2? accuracy |
| Display Resolution | 1? angular / 0.1 mm linear |
| Zero Drift | ?4? within 30 minutes |
| Indicating Value Error | ±4? |

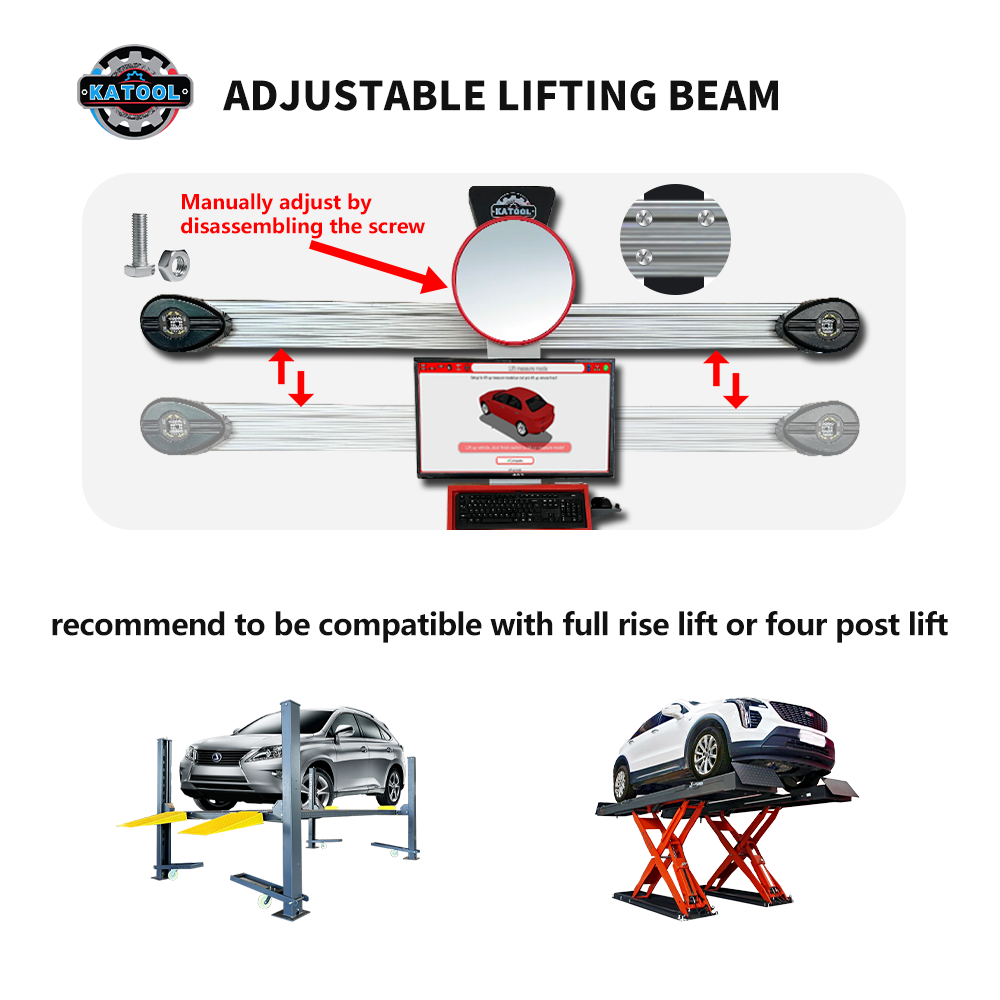

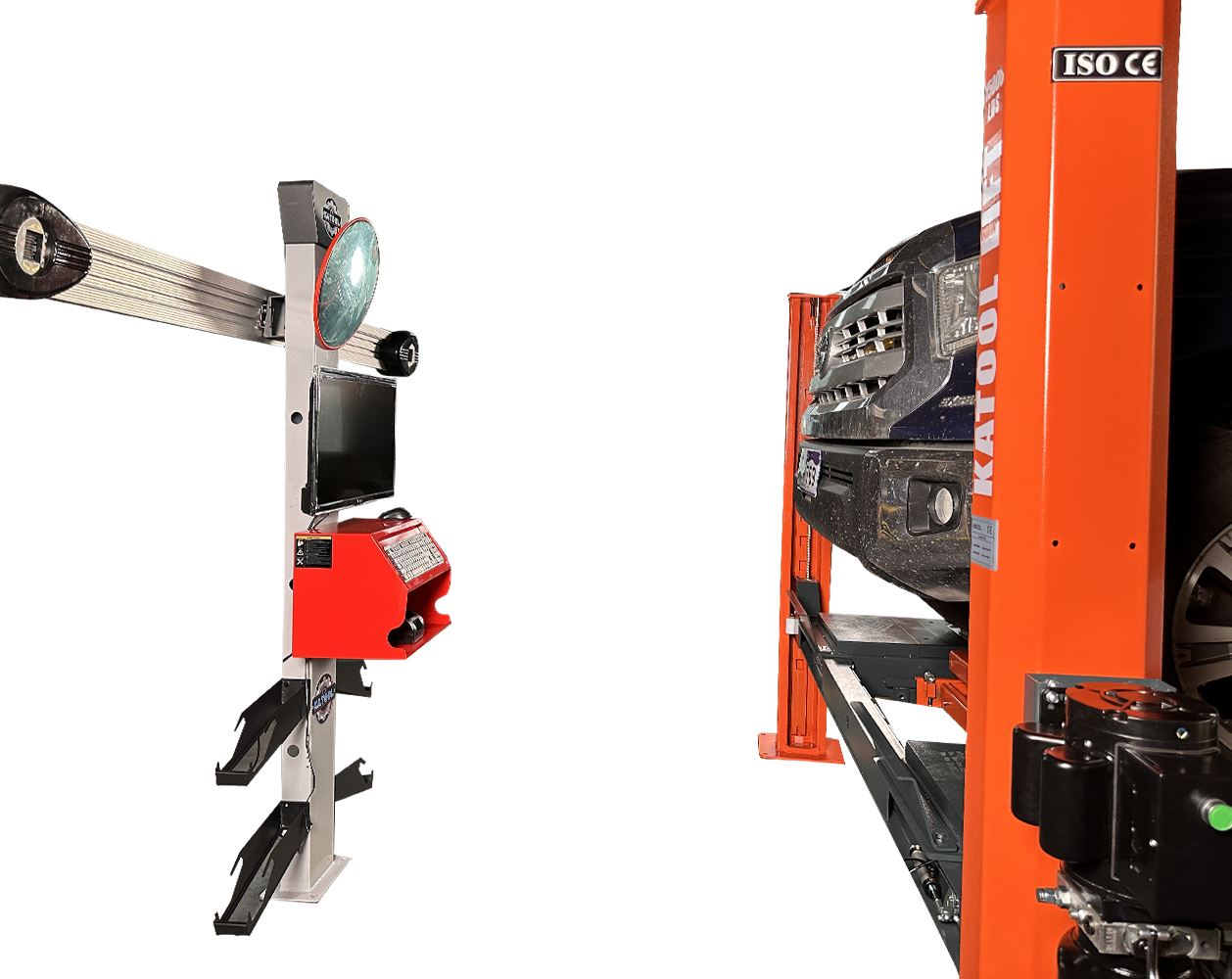

Confirm required lift or bay dimensions, turntable and target compatibility, supplied software, electrical requirements, and included accessories. Supplier specifications and package contents can vary by configuration; use the current manual for installation and operation.
