KATOOL AK-T900 Tire Changer & KT-B760 Wheel Balancer Combo
KATOOL PROFESSIONAL TIRE SERVICE EQUIPMENT
A complete mounting, demounting and balancing setup for automotive tire shops and service bays working with cars, SUVs and light trucks.

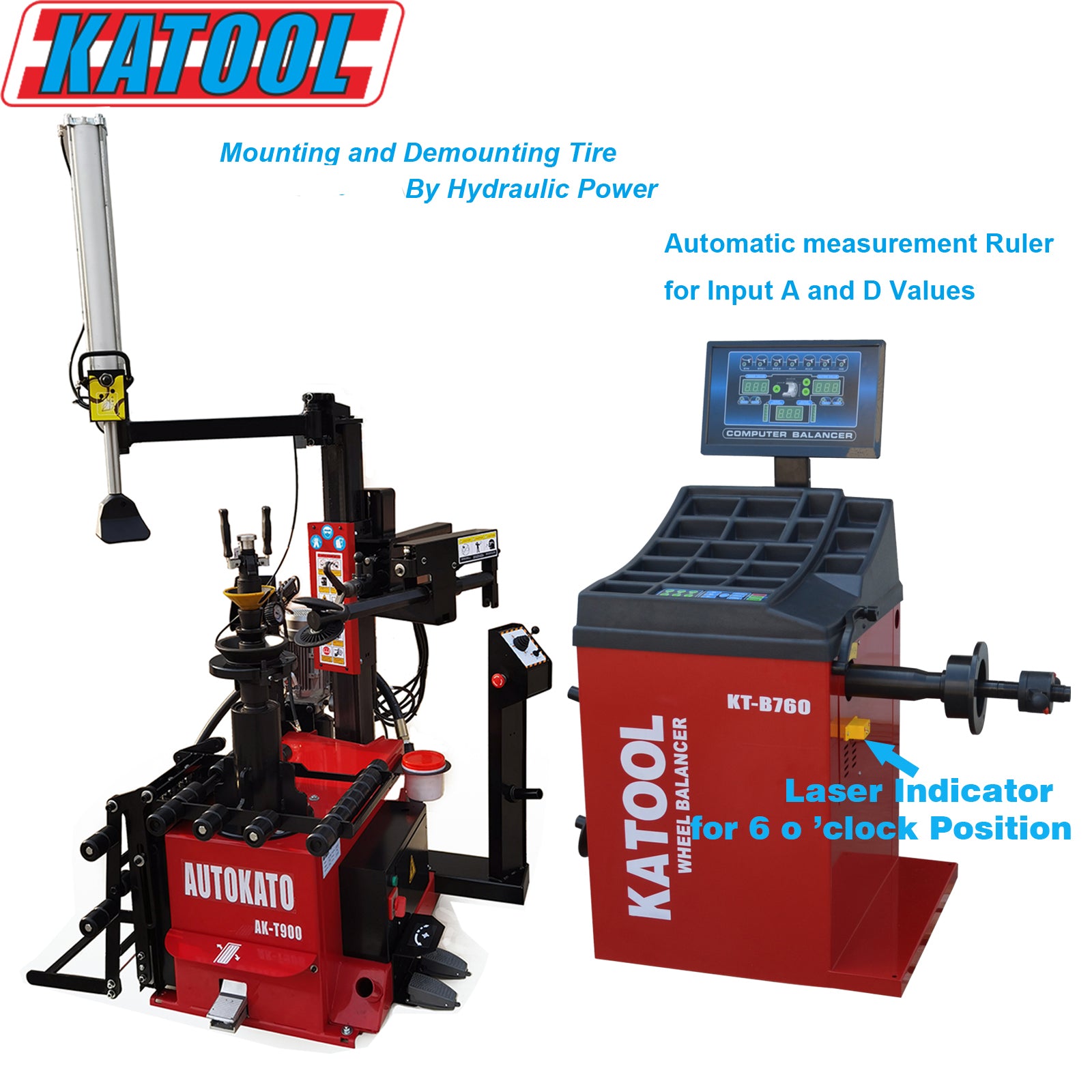

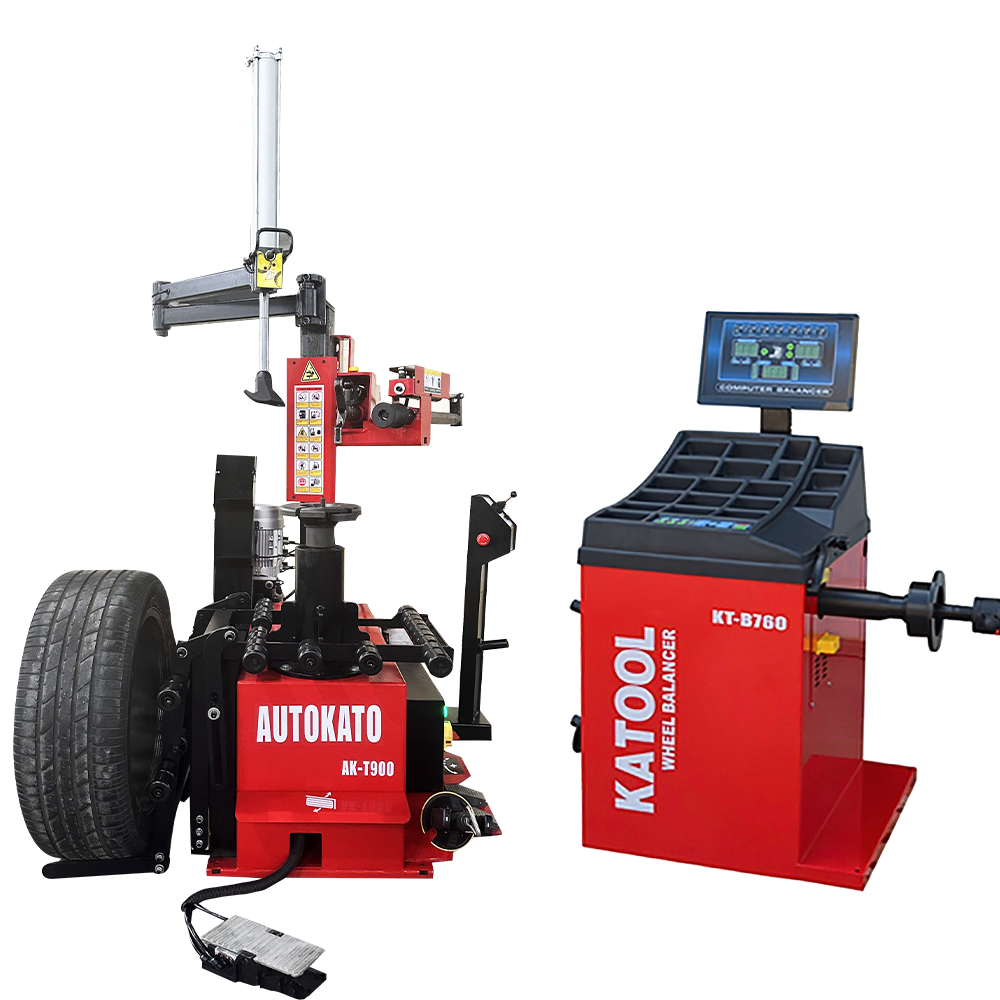

Bring tire changing and precision balancing into one coordinated workflow. The AK-T900 pairs a hydraulic tire changer, assist arm and protective mounting head with the KT-B760 balancer's fast measuring cycle and stated ±1 g balancing accuracy.
The AK-T900 combines a 2 HP drive motor with a separate hydraulic power system. Its assist arm and protective mounting head support tire work on a broad range of passenger and light truck wheels.
| Specification | AK-T900 |
|---|---|
| Maximum wheel diameter | 47 in (1,200 mm) |
| Maximum wheel width | 16 in (406 mm) |
| Wheel clamping range | 12–26 in |
| Drive motor | 2 HP (1.5 kW) |
| Hydraulic power | 1.5 HP (1.1 kW) |
| Rotation speed | 6.8 rpm |
| Required air pressure | 116–145 psi (0.8–1.0 MPa) |
| Power supply | 220 V / single phase |
| Net weight | 414 lb (188 kg) |
The KT-B760 supports wheels up to 143 lb, with an approximately 7-second measurement cycle. Use it after mounting to check and correct wheel imbalance before the vehicle leaves the bay.
| Specification | KT-B760 |
|---|---|
| Rim diameter | Up to 30 in |
| Wheel width | 3–12 in |
| Maximum wheel diameter | 34.6 in (880 mm) |
| Maximum wheel weight | 143 lb (65 kg) |
| Balancing speed | 180 rpm |
| Balancing accuracy | ±1 g |
| Measuring time | Approximately 7 seconds |
| Motor power | 0.25 kW |
| Power supply | 120 V / single phase |
| Center hole diameter | Less than 5.31 in (135 mm) |
Equip your service bay with the KATOOL AK-T900 tire changer and KT-B760 wheel balancer together.
