K&L Supply 62-66141 K2 9
The K&L K2 Two-Post Automotive Lift is a professional-grade clearfloor vehicle lift designed for automotive repair shops, dealerships, service centers, collision facilities and serious automotive enthusiasts. Available in 9,000 lb. and 10,000 lb. capacities, the K2 combines a direct-drive hydraulic system, heavy-duty structural steel construction and flexible installation configurations for servicing a wide variety of vehicles.
Designed for dependable everyday vehicle service, the K&L K2 provides technicians with an open floor area between the columns for convenient vehicle positioning and unrestricted access underneath the vehicle. The overhead clearfloor configuration eliminates the floor plate found on many traditional two-post lifts.
The K2 is engineered using SS400 hot-rolled structural carbon steel, providing the strength and rigidity required in a professional automotive service environment. K&L developed the lift through advanced research and development in South Korea with an emphasis on structural strength, smooth operation and reduced routine maintenance.

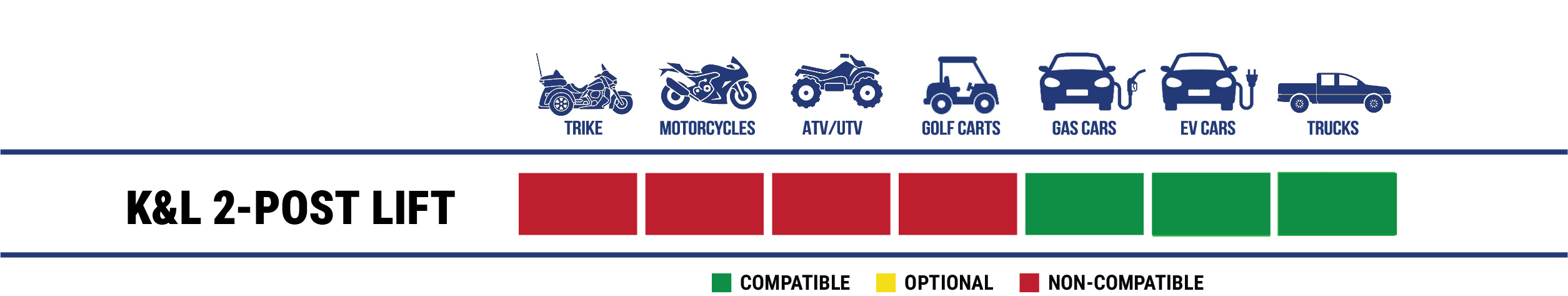

Adjustable column configurations make the K2 suitable for different service-bay layouts, while its arm configuration allows technicians to accommodate vehicles ranging from low-profile passenger cars and performance vehicles to EV platforms and full-size trucks.
| Specification | K&L K2 |
|---|---|
| Lifting Capacity | 9,000 or 10,000 lbs. |
| Lifting Speed | 50-60 seconds |
| Descending Speed | 30-45 seconds |
| Lifting Height | 78-80 in. |
| Long Lifting Arms | 24.60-50.39 in. |
| Short Lifting Arms | 22.00-43.50 in. |
| Clearance Width | 102.36 in. |
| Lock Release | Automatic or Manual Mechanical Release |
| Electrical Requirement | 230V, 1 Phase, 60Hz, 25 Amp |
| K&L SKU | Model | Capacity | Lock System |
|---|---|---|---|
| 62-66140 | K2 9 | 9,000 lbs. | Manual Lock Release |
| 62-66141 | K2 9 | 9,000 lbs. | Auto Lock Release |
| 62-66142 | K2 10 | 10,000 lbs. | Manual Lock Release |
| 62-66143 | K2 10 | 10,000 lbs. | Auto Lock Release |
The K&L K2 two-post clearfloor lift is an excellent choice for automotive repair shops, dealerships, collision repair centers, tire shops, fleet maintenance facilities and other professional vehicle service environments.
Its combination of lifting capacity, open-floor access and adjustable installation configurations provides the flexibility needed for servicing passenger vehicles, performance cars, electric vehicles, SUVs and trucks.
Proper installation is critical to the safe operation of any automotive lift. K&L specifies that its lifts be installed on a level concrete floor with a minimum thickness of 6 inches and minimum strength of 4,000 PSI. Concrete should be aged a minimum of 30 days.
Local building requirements, seismic requirements and concrete reinforcement requirements should be evaluated by a qualified professional before installation.
The lift requires a constant 230V, single-phase, 60Hz, 25-amp electrical supply.
eAutoTools can help you determine which K&L K2 configuration is right for your shop. Contact us for product information, availability, shipping options and assistance selecting the proper 9,000 lb. or 10,000 lb. two-post lift.
