Star-A-Liner Cheetah SF 18 Frame Rack auto body collision repair frame rack

Star-A-Liner CHEETAH SF 18'

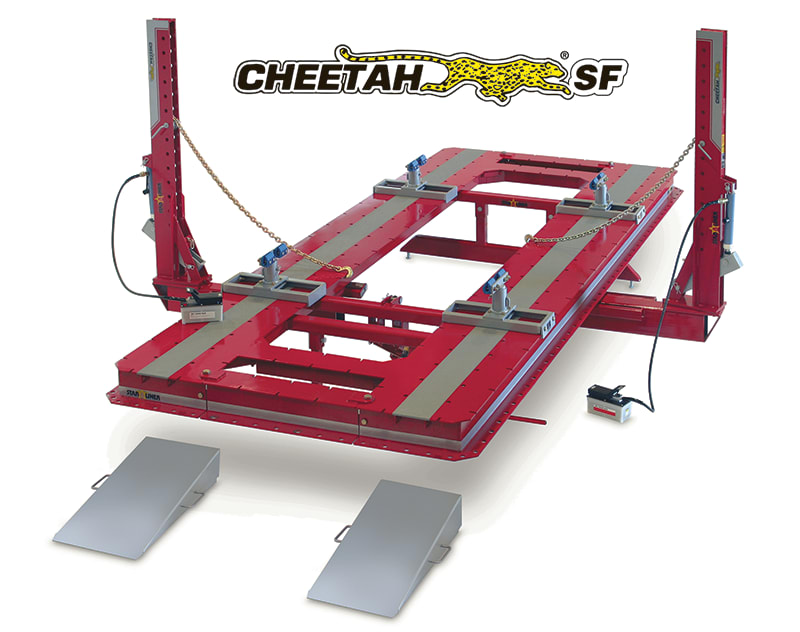

Star-A-Liner Cheetah SF 18 Frame Rack

StarALiner
$
Product Code: 9011001
This product qualifies for FREE SHIPPING!
STAR-A-LINER CHEETAH FRAME STRAIGHTENING EQUIPMENT
Star-A-Liner Cheetah SF 18 Frame Rack
Higher Working Position, Compact 18-Foot Platform
An 18-foot Cheetah SF rack with a 26-inch working height for collision shops servicing cars, SUVs, and extended-cab trucks.
Star-A-Liner Cheetah SF 18 Frame Rack auto body collision repair frame rack
Product Overview

The Cheetah SF 18 is part of Star-A-Liner's Cheetah family of collision-repair frame machines, a product line built around efficient use of shop space, straightforward operation, and durable structural-repair capability. This model is designed for unibody cars through extended-cab trucks.

Rather than adding unnecessary complexity, the Cheetah platform focuses on the things a collision technician needs every day: accessible vehicle positioning, strong hydraulic pulling capability, flexible pulling angles, and a work platform sized for the vehicles the shop actually repairs.

Why Choose the Cheetah SF 18?
  • 26-inch working height places the vehicle slightly higher for technician access.
  • 18-foot bed fits a wide range of everyday collision-repair applications.
  • Offset tower bases let towers work closer together where the repair requires it.
  • 10-ton pulling power with a 360-degree pulling radius.
  • Single published hydraulic configuration simplifies model selection.
10-Ton Hydraulic Pulling Power
Professional structural pulling capability for collision-repair work.
Purpose-Built Coverage
Unibody cars through extended-cab trucks
Shop-Focused Design
Built to balance repair capability with practical use of valuable floor space.
Technical Specifications
Part ID9011001 Cheetah SF 18' II W/HYD
Length of Bed18 ft. / 549 cm
Length with Towers Extended23 ft. 9 in. / 724 cm
Bed Width84 in. / 213 cm
Width with Towers Extended13 ft. 4 in. / 406 cm
Treadway Width24 in. / 61 cm
Width Between Treadways36 in. / 91 cm
Overall Height7 ft. 11 in. / 241 cm
Tower Height6 ft. / 183 cm
Working Height26 in. / 66 cm
Weight4,800 lbs. / 2,177 kg
Hydraulic Air Requirement100 psi / 6.89 bar
Hydraulic Pulling Power10 ton / 9 metric ton
Pulling Radius360 degrees
Ideal Applications
Collision repair centersDealership body shops
Structural and frame straighteningMulti-direction collision pulls
Vehicle restoration facilitiesProfessional auto body repair shops
Which Cheetah Is Right for Your Shop?

Cheetah racks are available in several lengths and configurations. Smaller models emphasize space efficiency for conventional collision work, while the 5500 and Series models expand vehicle size and working envelope. Contact eAutoTools with the vehicles you repair most often, available bay dimensions, and preferred hydraulic configuration, and we can help narrow down the best model.

Cheetah 360 IICheetah 18Cheetah SF 20Cheetah 5500 18Cheetah 5500 20Cheetah Series 20Cheetah Series 24Cheetah Floor Rack System
Get a Star-A-Liner Cheetah Quote

Contact eAutoTools for current pricing, freight, available configurations, pulling towers, accessories, installation considerations, and financing options.

888-998-8665
Product specifications, part numbers, configurations, images, accessories, and availability are subject to manufacturer changes. Confirm the exact configuration before ordering.
