Autel Mobile ADAS Calibration System MA600 Plus MSADAS Tablet

Download Autel Mobile ADAS Calibration Brochure
Download Autel ADAS Calibration Frame Comparison
Download Target Your New Revenue Stream

The Autel MA600 MaxiSys ADAS Calibration System Frame folds and disassembles for easy transport, so you can calibrate in other locations. The MA600 software provides accurate calibration procedures for camera-based systems. With easy step-by-step tutorial graphics and the five-line laser leveling process makes it a quicker and more efficient centering and make it easier to squaring procedure of the vehicle to the calibration frame.

Tablets with previously active ADAS application software will not be compatible with MA600. All tablet models require an additional one-time purchase software application upgrade, except MSADAS.

The tablet MSADAS is included.

• MSADAS

Autel ADAS MA600 Includes:

• Honda - LDW CSC0601/08-R
• Honda / IA-LDW CSC0601/09
• Volkswagen-LDW CSC0601/01
• Mercedes-LDW CSC0601-02
• Honda - LDW CSC0601/05
• Hyundai / KIA-LDW CSCO601/01
• Mercedes-LDW CSC0601-19
• Toyota / Lexus-LDW CSC0601/11
• Hyundai / KIA-LDW CSC0601/07
• Nissan-LDW CSC0601/03-L
• Nissan-LDW CSC0601/03-R
• Toyota-LDW CSC0601/15
• Mitsubishi-LDW (CSC0601/22-L)
• Mitsubishi-LDW (CSC0601/22-R)
• Mazda-LDW (CSC0601/12)
• Nissan / Infiniti-LDW (CSC0601/06-L)
• Nissan / Infiniti-LDW (CSC0601/06-R)
• Mazda-LDW (CSC0601/13-L)
• Mazda-LDW (CSC0601/13-R)
• Subaru-LDW (CSC0601/14)
• Nissan-LDW (CSC0601/04-L)
• Nissan-LDW (CSC0601/04-R)
• Five Line Laser
• Foldable Calibration Frame

Please Scroll Down for more images

Autel MaxiSys ADAS Portable Calibration Tool—MA600
The Autel MaxiSYS ADAS Calibration solution is becoming more portable. The easy to use MA600 frame is quickly folded and disassembled for transport, to calibrate in many locations, creating a smarter service made simple. Advanced Driver Assistance System (ADAS) is becoming standard equipment on today’s new vehicles. With MaxiSys calibration tools and accurate software, Autel MaxiSys ADAS MA600 is an ideal calibration tool for glass replacement and more. Portable expansive affordable
Hardware		Software
Precise ✔ Millimeter-level accuracy with mutilple laser positioning and measurement tools. Portable ✔ Flexible and easy for storage: quickly folded for transport. Affordable ✔ Modular frame assemled with accessory tools for calibration. ✔ Easy to move		Smart ✔ Compatible use with leveling lift adjustment. Accurate ✔ Regular updates of latest OE-Level diagnostic & calibration software. ✔ Correct calibration Intuitive ✔ Tutorial graphics & step-by-step instructions. ✔ Pre-Scan & Post_scan Reports (ADAD module identifcation, Calibration) Expansive ✔ Wider vehicle coverage. ✔ Extend camera calibration to AVM and RCW systems with purchase of oversize patterns.

MaxiSys ADAS Functions
Lane Departure Warning (LDW) Warns driver when vehicle begins to move out of freeway lane. Designed to minimize causes collisions: driver error, distractions and drowsiness.		ADAS Calibration Frame Comparison Tablet not included. The MA600 is compatible with the following tablets: MS906BT, MS906TS, MS908, MS908P, MS908S, MS908SP, MSELITE and MSADAS. All tablet models require an additional one-time purchase software application upgrade, except MSADAS. Tablets with previously active ADAS application software will not be compatible with MA600.

MaxiSys ADAS Calibration Frame-MA600
Portable Calibration Frame and Accessories MA600 provides LDW calibration for camera based systems. Within 2 minutes, one person can perform accurate frame placement.
Portable Easily foldable frame create freedom to calibrate faster in many locations	Precise The new distance laser and accessories provide a quicker leveling process with vehicle for Millimeter Ruler Accuracy	Adjustable Fine-tuning nobs to easily

MaxiSys ADAS -- MA600 Parts and Accessories

The MA600 provides accurate calibration procedures for camera based systems with accessories and oversize AVM patterns available to purchase separately. The new step-by-step tutorial graphics and fine line laser leveling process offers a quicker and more efficient vehicle centering and squaring to calibration frame procedure. It's the new generation MaxiSYS MA600, smarter service made simple.

Lane Departure Warning (LDW)

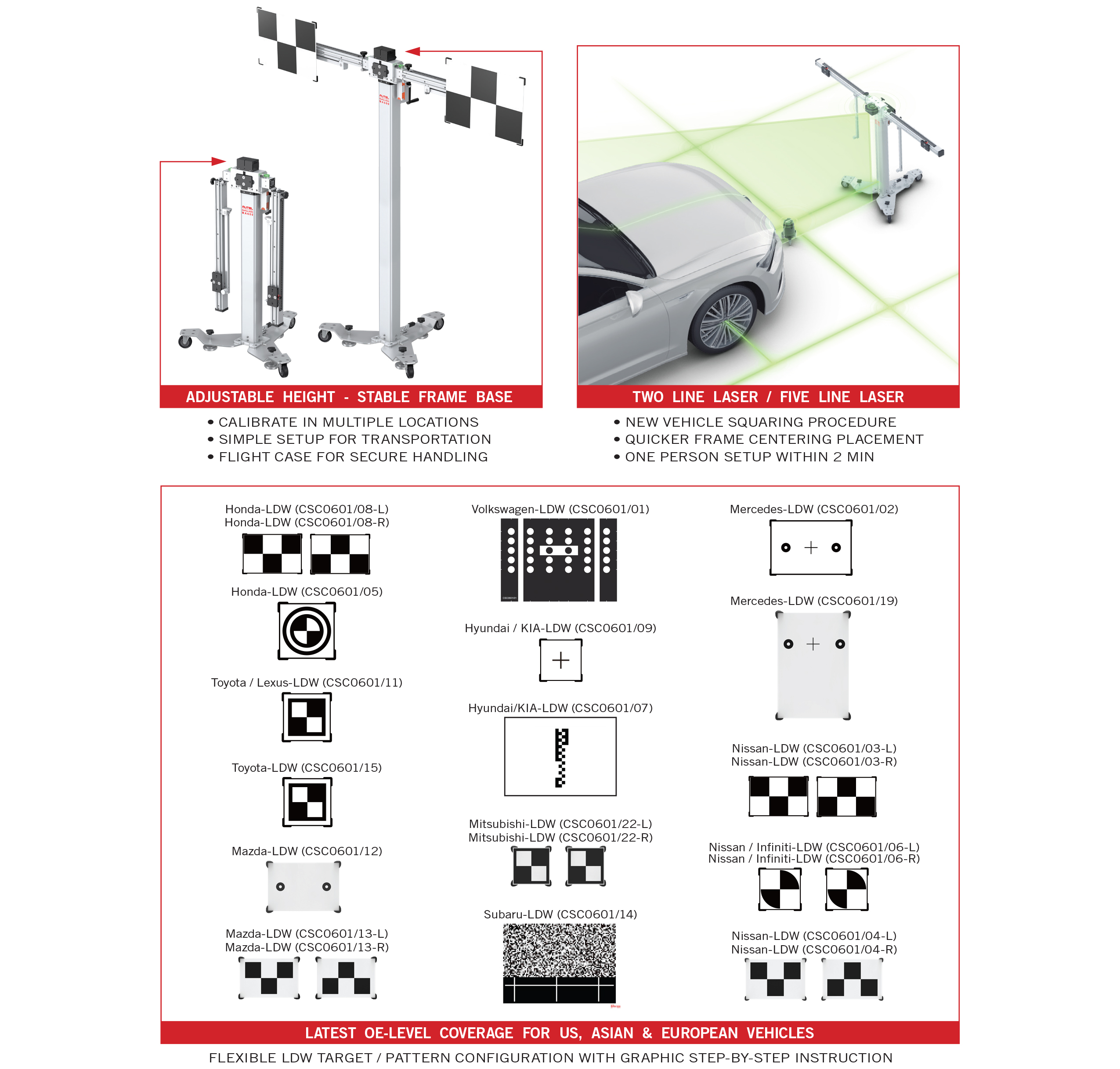

Pattern & Target Board Different patterns for lane departure warning systems calibration of different vehicles.
Honda/Acura LDW II CSC0601/08-L	Honda/Acura LDW II CSC0601/08-R	Honda LDW I CSC0601/05	Toyota/Lexus LDW I CSC0601/11
Toyota/Lexus LDW II CSC0601/15	Hyundai/KIA LDW II CSC0601/09	Mercedes-Benz LDW CSC0601/02	Nissan LDW I CSC0601/03-L
Nissan LDW I CSC0601/03-R	Nissan/Infiniti/Renault LDW II CSC0601/06-L	Nissan/Infiniti/Renault LDW II CSC0601/06-R	Hyundai/KIA LDW I CSC0601/07
Nissan LDW III CSC0601/04-L	Nissan LDW III CSC0601/04-R	Mazda LDW I CSC0601/12	Mazda LDW II CSC0601/13-L
Mazda LDW II CSC0601/13-R	Mercedes LDW II CSC0601/19	Mitsubishi LDW CSC0601/22-L	Mitsubishi LDW CSC0601/22-R
Subaru LDW I CSC0601/14	VW LDW CSC0601/01

Tablet not included. The MA600 is compatible with the following tablets: MS906BT, MS906TS, MS908, MS908P, MS908S, MS908SP, MSELITE and MSADAS. All tablet models require an additional one-time purchase software application upgrade, except MSADAS. Tablets with previously active ADAS application software will not be compatible with MA600.

---

The MaxiSys ADAS Calibration Tablet

Advanced Driver Assistance System (ADAS) is becoming standard equipment on today’s new vehicles. These systems are designed to assist drivers to prevent collisions by displaying alerts, providing camera images or by taking instantaneous control of the vehicle. The Autel MaxiSys ADAS provides the original complete diagnostic functionality, comprehensive and precise ADAS calibration. With MaxiSys calibration tools and accurate software, Autel MaxiSys ADAS is an ideal calibration tool for collision repair, glass replacement and repair shops.

• Overview:
• Precise: crossbar's minor adjustment knob and laser positioning provide millimeter-level accuracy.
• Flexible: lift can be adjusted by power; pattern cloth and pattern board are portable and easy for storage.
• Integrated: modular frame assembled with accessory tools for calibration; pattern board holder, pattern cloth and pattern board are easy to move.
• Smart: calibration procedure; compatible use with leveling lift adjustment
• Accurate: regular updates of latest OE-level diagnostic and calibration software; correct calibration
• Intuitive: tutorial graphics and step-by-step instructions; Pre-Scan & Post-Scan Reports (ADAD module identification, Calibration)
• Complete: Wide vehicle coverage; Seven Calibration Functions; Fixed & Mobile Calibrations

• Potential usage:
• Glass Replacement, Specialty Repair, Collision Repair, Wheel Alignment

• Adjustable Calibration Frame and Tools
• The large automatic screw mechanism provides compatible use with vehicle leveling lifts by offering a taller than average extended adjustable height.
• Easily Interchangeable and flexible calibration components
• Precise fine-tuning hand knob and laser positioning for millimeter ruler accuracy

• Calibration Tooling Kit
• Easily Interchangeable Calibration Components
• Exceptional Vehicle Coverage
• Made of durable stain resistant material and easily cleaned.
• Easy to store and transport

• Calibration Software:
• Step-by-step instructions display exact OE-calibration specifications and videos
• Pre-SCAN and Post-SCAN diagnostic report directly presents the existing problems, diagnostic results and repair suggestions
• J2534 Maxiflash Elite for OE Level programming
• Faster 1.3GHz + 1.7GHz hexa-core processor, double the speed with our revolutionary multitask-capable Android Operating System
• AutoVIN / AutoSCAN all modules in all systems
• The best possible OE-level diagnostic coverage to offer complete ADAS and diagnostic solutions for smarter repair and calibration.
