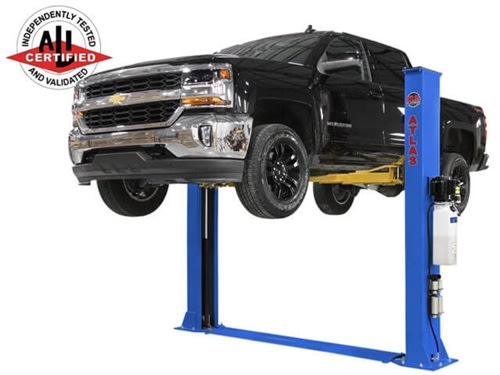

Atlas Platinum PVL-9BP Specifications

Atlas® Platinum 2-Post Comparison Chart

Attribute

PVL9BP

PVL10

PVL12

PVL15

Lift Capacity

9,000 Lbs .

10,000 Lbs .

12,000 lbs .

15,000 lbs .

Lifting Height w/ Adapters

74-5/6”

81-1/2”

85-1/2”

87-1/2”

Overall Height

111-1/8”

139-7/8” (High) ;
135-7/8” (Low)

177” (High) ; 165” (Low)

174-1/2”

Overall Height with Cylinder Fully Extended

N/A

148”

N/A

N/A

Overall Width

144”

139” (Asymmetrical) ; 137-1/2” (Symmetrical)

154-3/4”

154-1/2”

Width Between Posts

111-1/3”

107-3/4” (Asymmetrical); 112-1/2” (Symmetrical)

122-1/4”

119-1/4”

Heights of Shut-off Bar

N/A

130-1/4” to 134-1/4”

157” or 169”

164-1/4”

Minimum Pad Height

4-1/2”

4-1/2”

4-1/2”

6”

Front Arm Length

27”

43-1/2” (max) ; 22” (min)

59” (max) ; 31” (min)

52” (max) ; 36” (min)

Rear Arm Length

48-3/4”

58” (max) ; 35” (min)

59” (max) ; 31” (min)

52” (max) ; 36” (min)

Motor/Electrical Requirement

220 Volt, Single (1) Phase ; 30 amp breaker is recommended

220 Volt, single (1) Phase; 30 amp breaker is recommended

220 Volt, single (1) Phase; 30 amp breaker is recommended

220 Volt, single
(1) Phase; 30 amp breaker is recommended

Thickness of Steel

6 mm

6 mm

6 mm

8 mm

Shipping Weight

1,700 lbs .

1,750 Lbs .

2,400 Lbs .

2,600 lbs .

Warranty

5 Year Structural ; 2 year power unit

5 Year Structural ; 2 year power unit

5 Year Structural ; 2 year power unit

5 Year Structural ; 2 year power unit

2’ Height Extension Kit Available

N/A

AP-Z23A-00H1

N/A

AP-Z22A-00H
