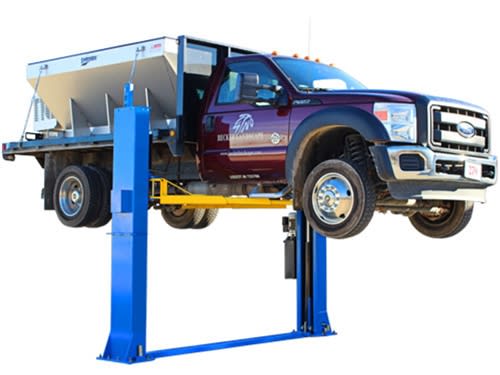

Atlas® Two Post Baseplate Specifications

Attribute

BP8000

9KBPX

BP10000

BP12000

Capacity

8,000 LB .

9,000 LB .

10,000 LB .

12,000 LB .

Overall Height

108" (9’)

111 1/2" (9’ 3 1/2")

111 7/8" (9’ 3 7/8")

122 1/2" (10’ 2 1/2")

Overall Floor Width

132" (11’)

134 1/2" (11’ 2 1/2")

139 1/8" (11’ 7 1/8")

149 3/8" (12’ 5 3/8")
or 154 1/2” (12’ 10 1/2”)

Outside Column to Outside Column

124" (10’ 4")

124 7/8" (10’ 4 7/8")

134 1/2" (11’ 2 1/2")

135 7/8" (11’ 3 7/8") or
141 1/4" (11’ 9 1/4”)

Maximum Lift Height (Without Adapters)

76 3/4"

74 1/2"

77 3/8"

77 1/2"

Maximum Lift Height (With Adapters)

87 3/4"

81"

86 3/8"

88 1/2"

Minimum Arm Height

4"

4"

4"

4"

Inside Column

109 1/8” (9’ 1 1/8”)

110” (9’ 2”)

112 1/4” (9’ 4 1/4”)

118 1/8” (9’ 10 1/8”) or
123 1/2" (10’ 3 1/2")

Drive Thru

99” (8’ 3”)

101” (8’ 5”)

101 1/4” (8’ 5 1/4”)

103 5/8” (8’ 7 5/8”) or
109” (9’ 1”)

Base Of Lift

17 1/2" x 17 3/4"

14 1/4" x 18 1/4"

17 1/2" x 21 1/2"

18 1/2" x 21 1/2"

Motor/Electrical Requirement

220 volt single (1) phase . A 30 amp breaker is recommended
