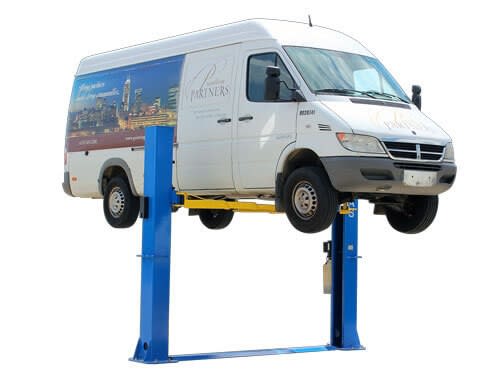

Atlas® BP10000 Baseplate 10,000 lbs. Capacity 2 Post Lift
Product Code: #ATTD-BP10000X
The Atlas® BP10000 commercial grade 2 post base plate lift is built for those customers who want to lift heavy vehicles in a low ceiling garage. The Atlas® BP10000 incorporates the popular single point lock release. Columns have a middle welded support gusset that adds extra strength to the oversized columns. If you need to lift a one ton dually or a SMART CAR ® and only have an 11 foot ceiling, then this is lift for your shop.
FREE 12 Piece Truck Adapter
Single Point Lock Release
2 And 3 Stage Arms
5 Year Structural & 2 Year Hydraulic Warranty
Automatic Arm Restraint
BP-10000 Installation
Atlas® BP10000 Documented Load Test
Chain-Over-Roller Cylinder Configuration
Double Lock System
Super Symmetric Arm Configuration
Atlas® BP10000 Specifications
Capacity
10,000 LB.
Lifting Time
Ask Your Salesperson
Overall Height
111 7/8" (9' 3 7/8")
Overall Floor Width
139 1/8" (11' 7 1/8")
Outside Column to Outside Column
134 1/2" (11' 2 1/2")
Maximum Lift Height (Without Adapters)
77 3/8" (6' 5 3/8")
Maximum Lift Height (With Adapters)
86 3/8" (7' 2 3/8")
Minimum Arm Height
4 1/2"
Base Plate Width
11"
Inside Column
112 1/4" (9' 4 1/4")
Drive Thru
101 1/4" (8' 5 1/4")
Column Size
9 1/2" x 11"
Column Thickness of Steel
6mm
Carriage Thickness of Steel
6mm
Arms Thickness of Steel
6mm
Cable Diameter
.375"
Base Of Lift
17 1/2" x 21 1/2" (1' 5 1/2" x 1' 9 1/2")
Motor/Electrical Requirement
220V +/- 5% (209-231volts) single (1) phase. A 30 amp breaker is required.
Oil Requirement
3-5 Gallons AW32/AW46
Shipping Weight
1,640 LB.
Atlas® Two Post Baseplate Specifications
Attribute
BP8000
9KBPX
BP10000
BP12000
Capacity
8,000 LB .
9,000 LB .
10,000 LB .
12,000 LB .
Overall Height
108" (9’)
111 1/2" (9’ 3 1/2")
111 7/8" (9’ 3 7/8")
122 1/2" (10’ 2 1/2")
Overall Floor Width
132" (11’)
134 1/2" (11’ 2 1/2")
139 1/8" (11’ 7 1/8")
149 3/8" (12’ 5 3/8") or 154 1/2” (12’ 10 1/2”)
Outside Column to Outside Column
124" (10’ 4")
124 7/8" (10’ 4 7/8")
134 1/2" (11’ 2 1/2")
135 7/8" (11’ 3 7/8") or 141 1/4" (11’ 9 1/4”)
Maximum Lift Height (Without Adapters)
76 3/4"
74 1/2"
77 3/8"
77 1/2"
Maximum Lift Height (With Adapters)
87 3/4"
81"
86 3/8"
88 1/2"
Minimum Arm Height
4"
4"
4"
4"
Inside Column
109 1/8” (9’ 1 1/8”)
110” (9’ 2”)
112 1/4” (9’ 4 1/4”)
118 1/8” (9’ 10 1/8”) or 123 1/2" (10’ 3 1/2")
Drive Thru
99” (8’ 3”)
101” (8’ 5”)
101 1/4” (8’ 5 1/4”)
103 5/8” (8’ 7 5/8”) or 109” (9’ 1”)
Base Of Lift
17 1/2" x 17 3/4"
14 1/4" x 18 1/4"
17 1/2" x 21 1/2"
18 1/2" x 21 1/2"
Motor/Electrical Requirement
220 volt single (1) phase . A 30 amp breaker is recommended
