Atlas ATTD9OHSCSS 9,000 lb. Capacity 2-Post Overhead Lift

Atlas Automotive Equipment
List Price: $3,299.00
$
You save $!

WARNING: cancer and reproductive harm - www.P65Warnings.ca.gov
Choose your options:
Unloading Equipment
Unloading Equipment(required):
Product Code: ATEATTD-9OHSC-SS
Out of Stock 2-3 Weeks Lead Time

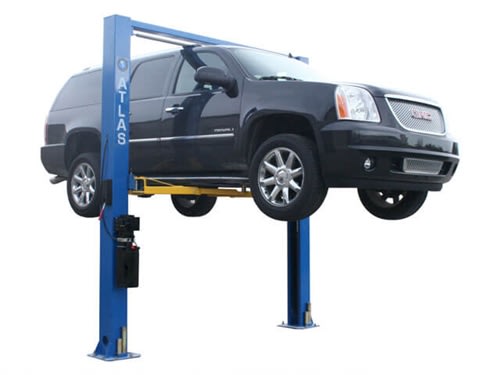

Atlas® 9OHSC (SS) Overhead 2 Post Lift

The Atlas® 9OHSC two post above ground lift is the perfect choice for those smaller commercial repair facilities or The Mr. Homeowner who demands the highest quality at the absolute best price. The Atlas® 9OHSC is a TRUE 9,000 lb. capacity two post lift that offers a great value to the customer. The Atlas® 9OHSC is engineered and manufactured to lift vehicles ranging from Smart Cars ® to a Suburban ®.

The current model of 9OHSC now comes with 3-stage front arms instead of the old 2-stage, giving more flexibility to your lifting points.

The Atlas® 9OHSC has single piece columns and extra long carriages to ensure years of trouble free service. The single piece columns require the customer to have a ceiling of at least 12 feet to stand up the column.

A single piece column coupled with the longer carriage offers unparalleled structural support for your types of lifting requirements.

The Atlas® 9OHSC incorporates a single piece 11’ 10” formed column and an extra long carriage that provides maximum column and arm strength to lift and support a 9,000 lb. vehicle.

  • Automatic Arm Restraints
  • FREE 12 Piece Truck Adapter
  • Single Point Lock Release
  • 5 Year Structural & 1 Year Hydraulic Warranty
  • 9OHSC Installation
  • Atlas® 9OHSC Documented Load Test
  • CE Tested And Approved
  • Chain-Over-Roller Cylinder Configuration
  • Electrical Requirements
  • Overhead Configuration
  • Super Symmetric Arm Configuration
Atlas® 9OHSC Specifications
Capacity9,000 LB.
Lifting TimeAsk Your Salesperson
Overall Height142" (11' 10")
Padded Bar Height135" (11' 3")
Overall Width133 ½" (11' 1 ½" )
Outside Column to Outside Column125 ½" (10' 5 ½")
Maximum Lift Height
(With Adapters)
87" (7' 3")
Maximum Lift Height
(Without Adapters)
76" (6' 3")
Minimum Arm Height4"
Inside Column109 ½" (9' 1 ½")
Column Size8" x 9 ⅜"
Column Thickness of Steel5mm
Carriage Thickness of Steel5mm
Arms Thickness of Steel6mm
Carriage Height57 ½"
Drive Thru100 1/2" (8' 4 1/2")
Base Of Lift16 ¾" x 17 ¾"
Cable Diameter.375"
Motor/Electrical Requirement2 HP, 220V single (1) phase.
A 30 amp breaker is required.
Oil Requirement3-5 Gallons AW32/AW46
Shipping Weight1,474 LBS.


Atlas® Two Post Overhead Comparison Chart

Attribute

9KOHX

9OHSC

OHX10X

PV10P

PV12P

PV15P

Capacity

9,000 LB .

9,000 LB .

10,000 LB .

10,000 LB .

12,000 LB .

15,000 LB .

Overall Height

138" (11’ 6") or
142” (11’ 10”)

142" (11’ 10")

152" (12’ 8”)

143 1/8" (11’ 11
1/8”) or 146 7/8” (12’ 2 7/8”)

165" (13’ 9”) or
177” (14’ 9”)

165" (13’ 9”) or
177” (14’ 9”)

Overall Floor Width

134 1/2" (11’ 2
1/2")

133 1/2" (11’ 1
1/2")

144 3/8" (12’
3/8")

137 1/2" (11’ 5
1/2”)

150 3/8" (12’ 6
3/8”)

151 3/8" (12’ 7
3/8”)

Outside Column to Outside Column

124 7/8" (10’ 4
7/8")

125 1/2" (10’ 5
1/2")

136" (11’ 4")

125" (10’ 5")

139 1/8" (11’ 7
1/8")

139 1/8" (11’ 7
1/8")

Maximum Lift Height (Without Adapters)

74 1/2"

76 3/4"

74 3/4"

71 7/8"

72 1/8"

75 1/8"

Maximum Lift Height (With Adapters)

81"

87 3/4"

85 3/4"

82 7/8"

83 1/8"

86 1/8"

Minimum Arm Height

4"

4"

4 1/2"

4 3/8"

4 1/2"

7 1/4"

Inside Column

110” (9’ 2”)

109 1/2” (9’ 1
1/2”)

118 1/4” (9’ 10
1/4”)

110 3/8” (9’ 2
3/8”)

122 5/8” (10’ 2
5/8”)

123 1/2” (10’ 3
1/2”)

Drive Thru

100” (8’ 4”)
Symmetric/ 90
1/2" (7’ 6 1/2”)
Asymmetric

100 1/2” (8’ 4
1/2”)

106 7/8” (8’ 10
7/8”)

96” (8’)

108 5/8" (9’
5/8”)

109 7/8" (9’ 1
7/8”)

Base Of Lift

14 1/4" x 18"

16 3/4" x 17
3/4"

18 1/2" x 21 1/2"

17 1/2" x 20 1/2"

17 1/2" x 20 1/2"

17 1/2" x 20 1/2"

Motor/Electrical Requirement

220 volt single (1) phase . A 30 amp breaker is recommended
