Katool KT-TV910 Hydraulic Truck Tire Changer
KATOOL Commercial Tire Service Equipment
A hydraulic tire changer for commercial truck, bus, and large-vehicle wheel service.

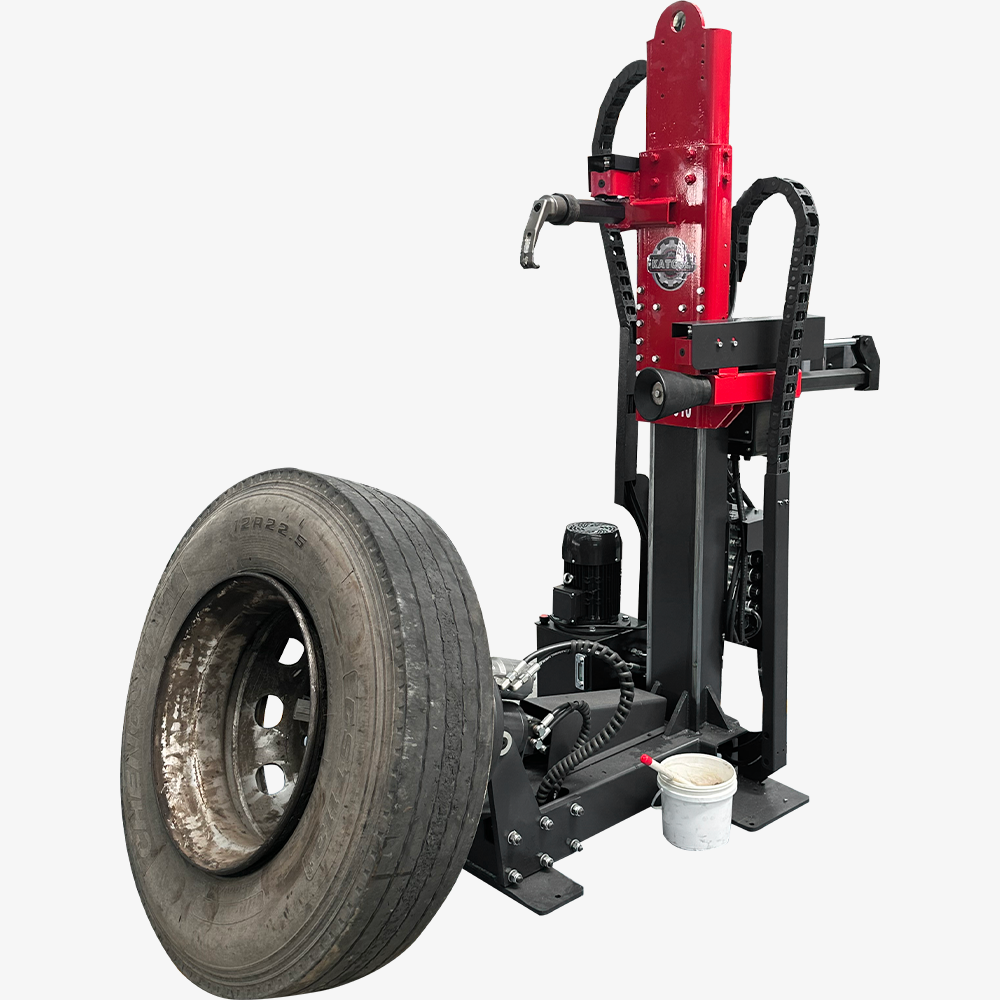

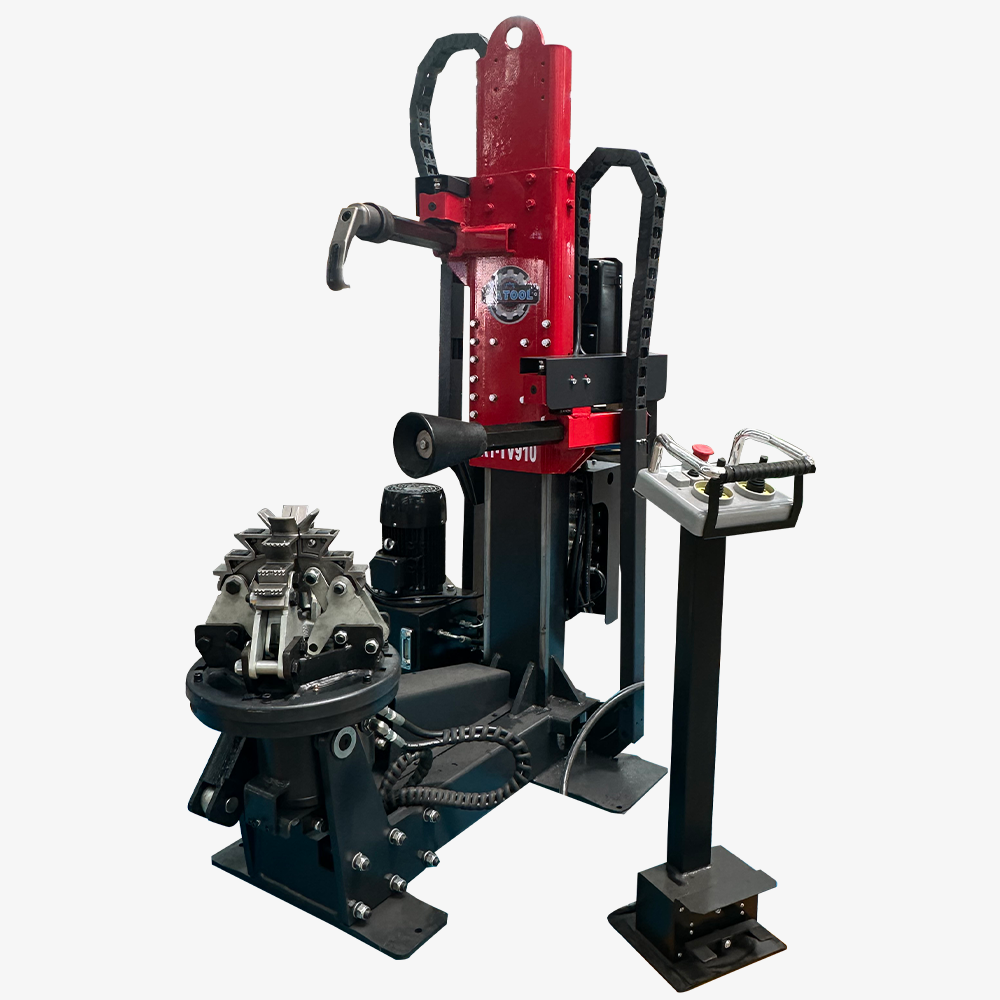

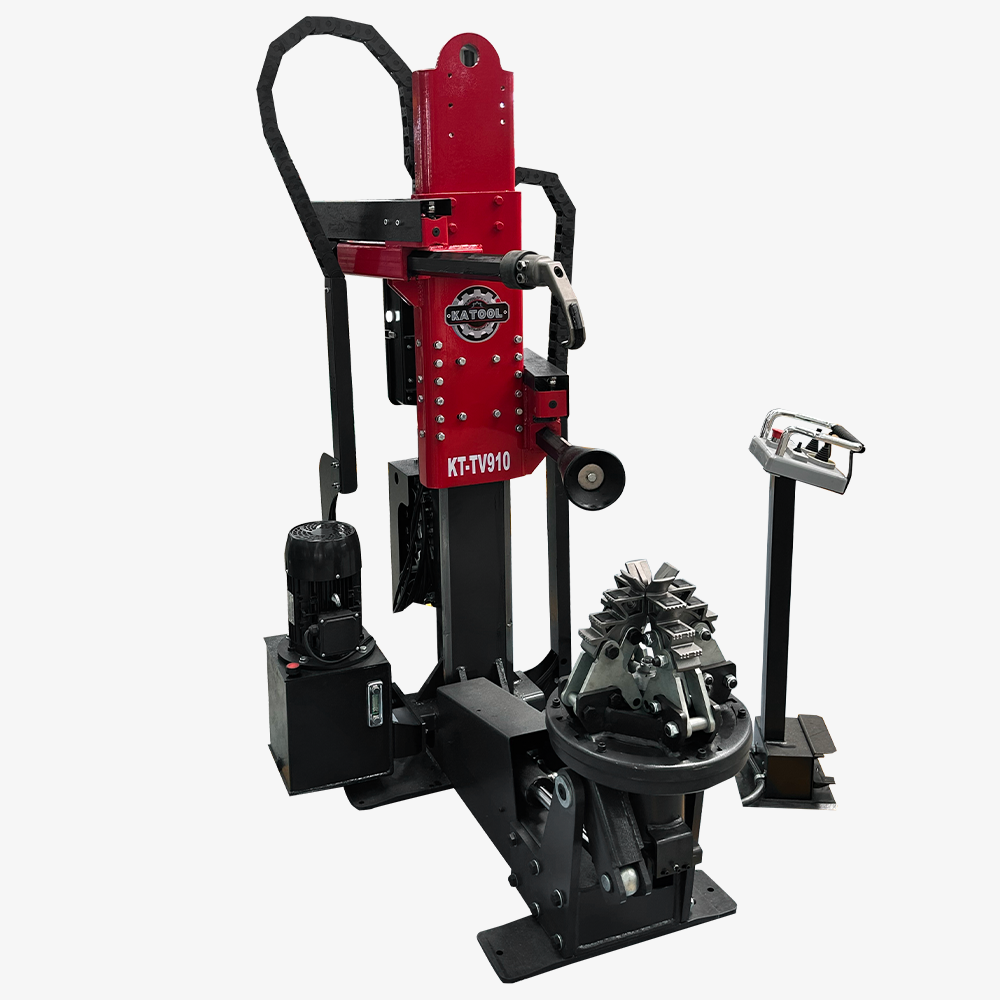

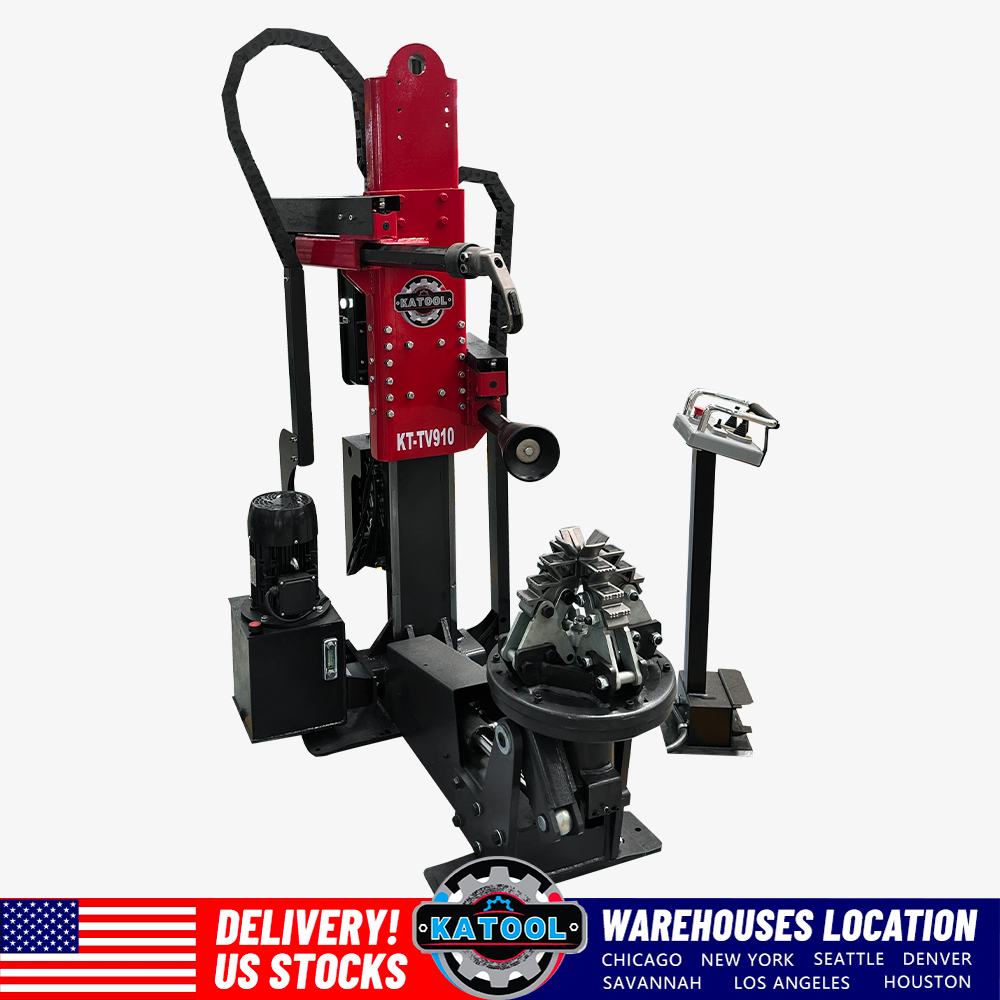

The KATOOL KT-TV910 is a hydraulic truck tire changer intended for large commercial wheel assemblies. Its hydraulic operation, upright tower, wheel-holding assembly, and working arm help technicians position a wheel, break its tire bead, and mount or demount a tire in a dedicated heavy-duty service bay.
Designed for truck shops, fleet maintenance facilities, bus service operations, and other shops handling large wheels, the KT-TV910 brings tire-changing work into a controlled machine setup. Verify the particular wheel and tire against the machine's rated dimensions and the supplied operating manual before use.
| Model | KT-TV910 |
|---|---|
| Product type | Hydraulic truck tire changer |
| Operation | Hydraulic; swing-arm design described by supplier |
| Outer clamp range | 14–52 in, per supplier listing |
| Inner clamp range | 16–48 in, per supplier listing |
| Maximum wheel width | Supplier text states 24+ in; confirm the rated limit |
| Bead-breaking force | Supplier text describes approximately 6,900+ lb; verify the rating |
| Power | Supplier text lists 220 V, three phase standard; single phase optional. Confirm the unit supplied. |
| Machine weight | Supplier text estimates 1,850–2,100 lb; confirm shipping weight |
Wheel diameter: confirm before ordering. The supplier's written description states “63+ in” maximum, while its gallery graphic states “55 inch” maximum. Ask for the KT-TV910's current specification sheet and verify wheel diameter, width, clamping range, electrical configuration, and included accessories for the specific unit.
